> >>>>Olympus 721DR Cabinet Door Deadbolt Lock Body
Reduced price! Olympus 721DR Door Deadbolt Lock

Olympus Lock, Inc

Previous Next

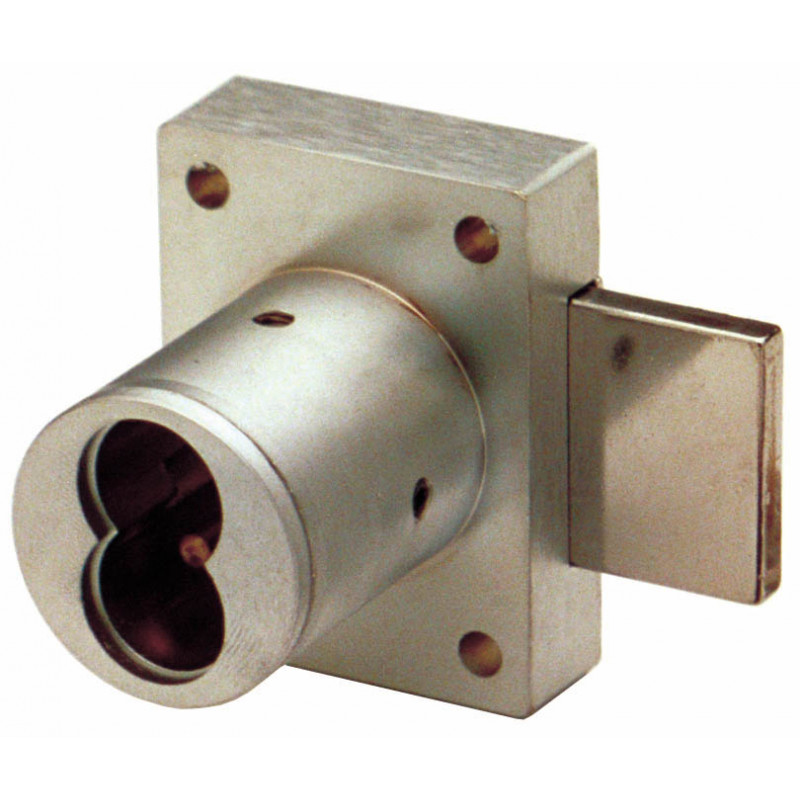

Olympus 721DR Cabinet Door Deadbolt Lock Body

721DR

$50.56

?

Details: Olympus 721DR Cabinet Door Deadbolt Lock Body

Features

  • Cabinet lock - deadbolt door lock
  • Field reversible - includes all parts necessary to convert to a drawer lock
  • Similar to Best original 3L series
  • ANSI/BHMA Grade 1 (E07121)
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Key-retaining* function: Specify 721DR-KR. For correct operation, cycle lock to the locked position before inserting core.
  • Barrel diameter: 1-1/8"
  • Barrel length 1-1/4" or 1-3/8"
  • US26, US26D, US3 or US10B finish
  • (1-3/8" available in US26D only)
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774
  • *Key-retaining = key removable in the locked position only.
  • WARNING (Proposition 65)

Includes

  • 721DR (1-1/4") lock includes:
  • 3 ea. 10-350 plastic spacers
  • 1 ea. 10-054 1/4" plastic bar strike
  • 1 ea. 10-057 0.65" plastic bar strike
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders
  • 1 ea. 721DR-11 door prong driver
  • 1 ea. 721DW-11 drawer prong driver
  • Contains all parts necessary to convert to a drawer lock
  • 721DR (1-3/8") lock includes:
  • 1 ea. 10-054 1/4" plastic bar strike
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders
  • 1 ea. 721DR-11 door prong driver
  • 1 ea. 721DW-11 drawer prong driver
  • Contains all parts necessary to convert to a drawer lock

Cores For locks

  • All locks sold less core
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • See our IC core section for available cores

Available Separately

  • 10-052 slotted strike
  • 10-055 1/2" plastic bar strike
  • 10-058 3/8" plastic bar strike
  • Plastic spacers - 10-348, 10-349, 10-350
  • ETS1-125 through-bolt trim plate 1/8" thickness
  • ETS1-250 through-bolt trim plate 1/4" thickness
  • ETS1-PL through-bolt trim pull
  • ETS1B through-bolt trim spacer
  • ETST1 through-bolt trim spacer template
  • TR78 trim ring

Downloads

Olympus Standard Functions, Key Retaining

Standard Function

Key removable in the locked or unlocked position. Locks ship with standard function unless key retaining is specified at time of order.

Key Retaining

The key cannot be removed from the lock while in the "unlocked" position. Key-retaining function is generally used in instances where cabinets or drawers should not be left unlocked.

Available Model Numbers and Combinations

Model/SKU Attributes
721DR-138 -LB 26D-SP1 Not Included, 1-3/8", Included, Satin Chrome, Included,
721DR-138 -LB US26 Not Included, 1-3/8", Included, Bright Chrome, Not Included,
721DR-138 -LB US26-SP1 Not Included, 1-3/8", Included, Bright Chrome, Included,
721DR-138 -LB US3 Not Included, 1-3/8", Included, Bright Brass, Not Included,
721DR-138 -LB US3-SP1 Not Included, 1-3/8", Included, Bright Brass, Included,
721DR-138 -LB 10B Not Included, 1-3/8", Included, Oxidized Satin Bronze, Not Included,
721DR-138 -LB 10B-SP1 Not Included, 1-3/8", Included, Oxidized Satin Bronze, Included,
721DR-KR 26D LH Included, 1-1/4", Not Included, Satin Chrome, Not Included, Left Hand
721DR-KR 26D RH Included, 1-1/4", Not Included, Satin Chrome, Not Included, Right Hand
721DR-KR 26D-SP1 LH Included, 1-1/4", Not Included, Satin Chrome, Included, Left Hand
721DR-KR 26D-SP1 RH Included, 1-1/4", Not Included, Satin Chrome, Included, Right Hand
721DR-KR US26 LH Included, 1-1/4", Not Included, Bright Chrome, Not Included, Left Hand
721DR-KR US26 RH Included, 1-1/4", Not Included, Bright Chrome, Not Included, Right Hand
721DR-KR US26-SP1 LH Included, 1-1/4", Not Included, Bright Chrome, Included, Left Hand
721DR-KR US26-SP1 RH Included, 1-1/4", Not Included, Bright Chrome, Included, Right Hand

View All Model Numbers and Options
