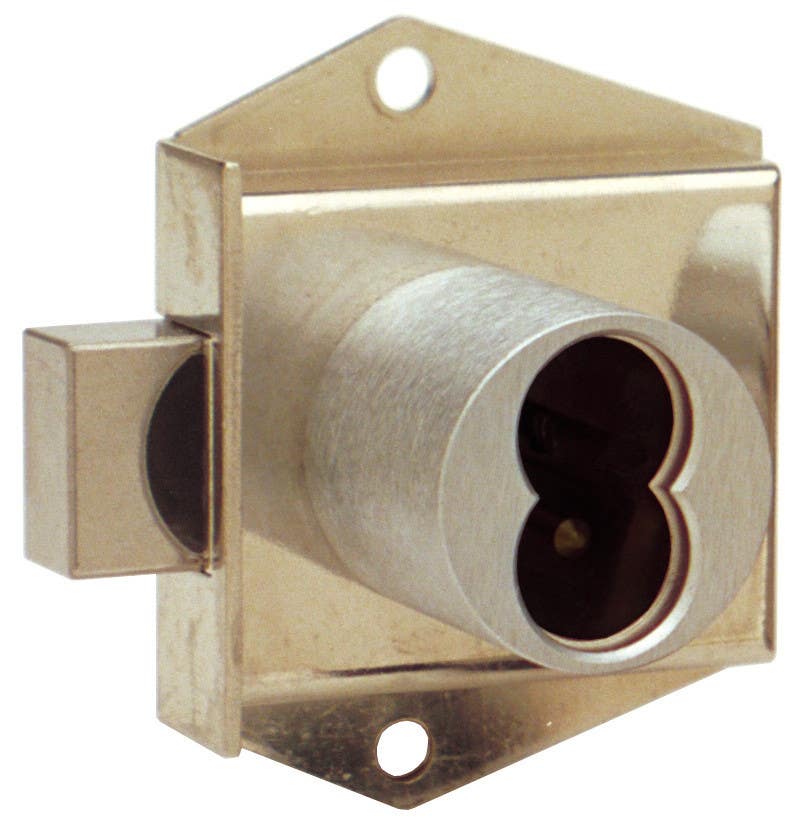

Details: Olympus 725MD Mortise Mount Cabinet Deadbolt Door Lock

Features

• Cabinet lock - Mortise mount
• Deadbolt locking mechanism
• Key retaining function available for DW-VH or DW-IH applications
• Accepts Best, Arrow, Falcon or equivalent IC cores
• Accepts 6 or 7 pin cores
• Barrel diameter: 1-1/8"
• Barrel length 1-1/16"
• US26, US26D, US3, US4 or US10B finish(see finish chart)
• Retrofits Best 5L series cabinet locks
• WP725 and WP726 plastic spacers available separately
• Packed 10 per box
• WARNING (Proposition 65)

Available Configurations

• Left-hand door = 725MD-DR-LH
• Right-hand door = 725MD-DR-RH
• Drawer-vertical = 725MD-DW-VH
• Drawer-inverted = 725MD-DW-IH
• Drawer-vertical, key-retaining = 725MD-DWKVH

Cores For locks

• All locks sold less core
• Accepts Best, Arrow, Falcon or equivalent IC cores
• See our IC core section for available cores

Includes

• 1 ea. 725-1 spacer for 6 pin cores
• 1 ea. 725-PAplastic actuator to functionally test lock without core
• 1 ea. 725-SP-MD slotted rectangular strike (stamped brass)

Downloads

• Data Sheet
• Installation Instructions
