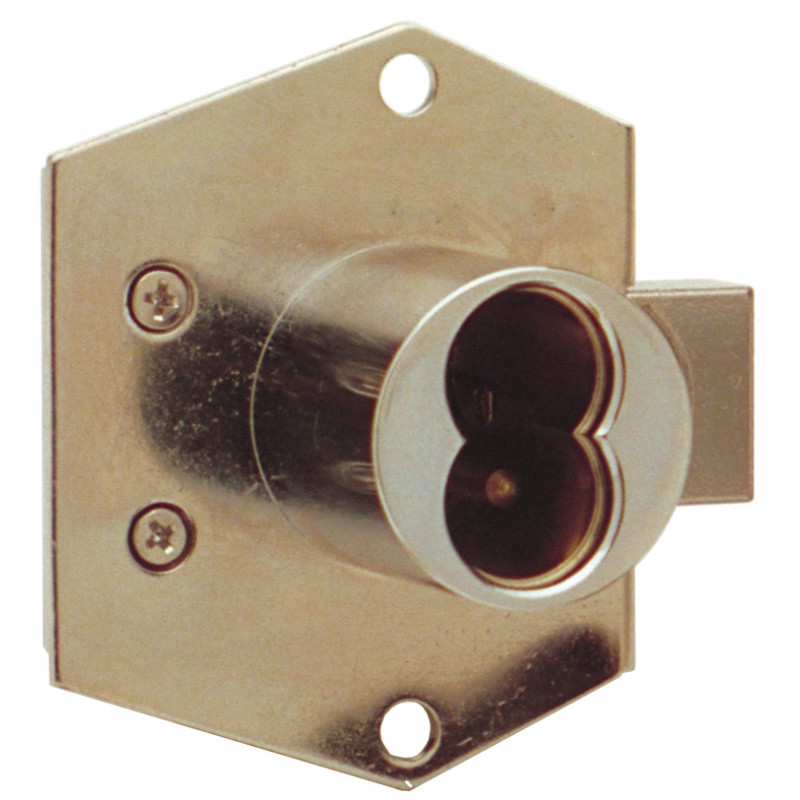

Olympus 725RD Rim Mount Deadbolt Door Lock




Details: Olympus 725RD Rim Mount Deadbolt Door Lock


  • Cabinet lock, Rim - surface mount
  • Deadbolt locking mechanism
  • Key retaining function available for DW-VH or DW-IH applications
  • Accepts Best, Arrow or equivalent IC cores
  • Accepts 6 or 7 pin cores
  • Barrel diameter: 1-1/8"
  • Standard barrel length: 1-1/16"
  • Optional barrel length: 1-3/8" (US26D finish only)
  • US26, US26D, US3, US4 or US10B finish (see finish chart)
  • Retrofits Best 5L series cabinet locks
  • WP725 and WP726 plastic spacers available separately
  • Packed 10 per box
  • WARNING (Proposition 65)

Available Configurations

  • Left-hand door = 725RD-DR-LH
  • Right-hand door = 725RD-DR-RH
  • Drawer-vertical = 725RD-DW-VH
  • Drawer-inverted = 725RD-DW-IH
  • Drawer-vertical, key-retaining = 725RD-DWKVH

Core For Locks

  • All locks sold less core
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • See our IC core section for available cores


  • 1 ea. 725-1 spacer for 6 pin cores
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. 725-SP-RD solid rectangular strike (stamped brass)


Available Model Numbers and Combinations

Model/SKU Attributes
725RD3DR-LH 26D 1-3/8", Left Hand, Satin Chrome
725RD-DR-RH 26D 1-1/16", Right Hand, Satin Chrome
725RD-DR-RH US26 1-1/16", Right Hand, Bright Chrome
725RD-DR-RH US3 1-1/16", Right Hand, Bright Brass
725RD-DR-RH US4 1-1/16", Right Hand, Satin Brass
725RD-DR-RH US10B 1-1/16", Right Hand, Oxidized Satin Bronze
725RD-DR-LH 26D 1-1/16", Left Hand, Satin Chrome
725RD-DR-LH US26 1-1/16", Left Hand, Bright Chrome
725RD-DR-LH US3 1-1/16", Left Hand, Bright Brass
725RD-DR-LH US4 1-1/16", Left Hand, Satin Brass
725RD-DR-LH US10B 1-1/16", Left Hand, Oxidized Satin Bronze
725RD3DR-RH 26D 1-3/8", Right Hand, Satin Chrome
