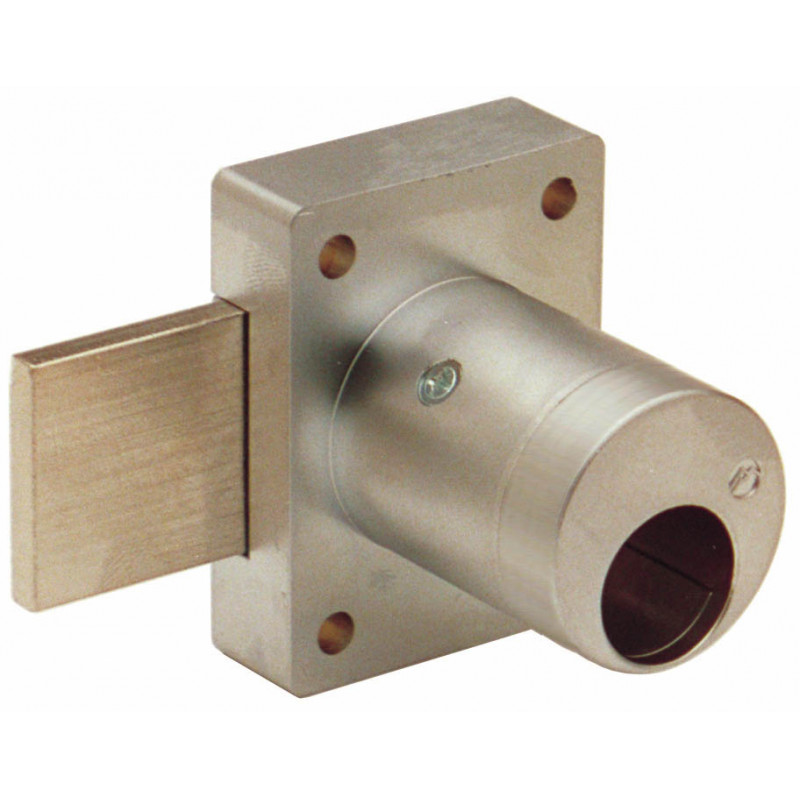

Details: Olympus 754LC Door Deadbolt Lock

Features

• Cabinet lock - deadbolt door lock
• Easily rekeyable via cylinder release mechanism
• Accepts Sargent C480-2 (13-3457) 6-pin deadbolt cylinder
• ANSI/BHMA No. E07121/E07122
• Barrel length: 1-3/8"
• Barrel diameter: 1-1/8"
• Includes: 10-056 notched strike
• 26D finish
• Packed 10 per box
• US Patent Nos: 4,899,563; 4,920,774

Available Separately

• 10-052 slotted strike
• Plastic spacers - 10-348, 10-349, 10-350
• ETS1-125 through-bolt trim plate 1/8" thickness
• ETS1-250 through-bolt trim plate 1/4" thickness
• ETS1-PL through-bolt trim pull
• ETS1B through-bolt trim spacer
• ETST1 through-bolt trim spacer template
• TR78 trim ring

Keying

• N/A - this lock is sold less cylinder
• Accepts Sargent C480-2 (13-3457) 6-pin deadbolt cylinder. See Sargent website www.sargentlock.com for more information.

Downloads

• Catalog
• Data Sheet
• Installation Instructions

Olympus Lock,Inc Warranty
