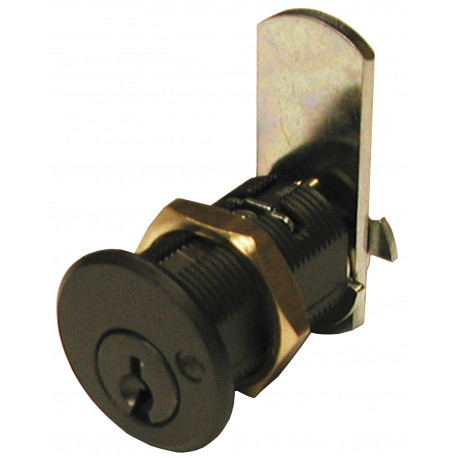

Olympus DCN Cam Lock

DCN

$27.81

Details: Olympus DCN Cam Lock

General Features

  • Cam lock - N Series, National keyway
  • Easily rekeyable via cylinder retainer clip
  • Pin tumbler cylinder drilled for 5 pins
  • ANSI/BHMA Grade 1 (E07261)
  • 2 reversible cams work in all locking positions
  • 1" face covers splintering no additional trim ring required
  • 26D, US3 or 10B finish
  • Available in 4 lengths
  • Packed 10 per box
  • U.S. Patent Nos: 5,038,589; 5,737,950

Includes

  • DCNP-100-BC In-bent / out-bent cam
  • DCNP-100-SC Straight cam
  • DCNP-500-ARP Anti-rotation plate

Available Separately

  • Alternate cams See our wide selection of alternate cams for use with this cam lock
  • DCNP-200-KDR Cam shifter for door key-retaining function
  • DCNP-200-KR Cam shifter for drawer key-retaining function
  • DCNP-300-FP Finger pull
  • T37DC-NP Number ring plate
  • DCNP-SPW Pronged wood washer
  • DCNP-GW Mounting washer for glass
  • TRB7 Spacer collars

Keying

  • National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • NEW! KA# 51001, 51002, 51003, 51004 (US26D only)
  • Master keyed - 5 pin standard
  • Use N1 Pin Kit for rekeying
  • 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
  • 5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)

Downloads

Available Model Numbers and Combinations

Model/SKU Attributes
DCN1 26D KA Satin Chrome, Keyed Alike, 4 Pin, 1-1/16"
DCN1 26D KD Satin Chrome, Keyed Different, 4 Pin, 1-1/16"
DCN1 US3 KA Bright Brass, Keyed Alike, 4 Pin, 1-1/16"
DCN1 US3 KD Bright Brass, Keyed Different, 4 Pin, 1-1/16"
DCN1 10B KA Oxidized Satin Bronze, Keyed Alike, 4 Pin, 1-1/16"
DCN1 10B KD Oxidized Satin Bronze, Keyed Different, 4 Pin, 1-1/16"
DCN1 26D MK Satin Chrome, Master Keyed, 5 Pin, 1-1/16"
DCN1 US3 MK Bright Brass, Master Keyed, 5 Pin, 1-1/16"
DCN2 26D KA Satin Chrome, Keyed Alike, 4 Pin, 1-3/16"
DCN2 26D KD Satin Chrome, Keyed Different, 4 Pin, 1-3/16"
DCN2 US3 KA Bright Brass, Keyed Alike, 4 Pin, 1-3/16"
DCN2 US3 KD Bright Brass, Keyed Different, 4 Pin, 1-3/16"
DCN2 10B KA Oxidized Satin Bronze, Keyed Alike, 4 Pin, 1-3/16"
DCN2 10B KD Oxidized Satin Bronze, Keyed Different, 4 Pin, 1-3/16"
DCN2 26D MK Satin Chrome, Master Keyed, 5 Pin, 1-3/16"

View All Model Numbers and Options
