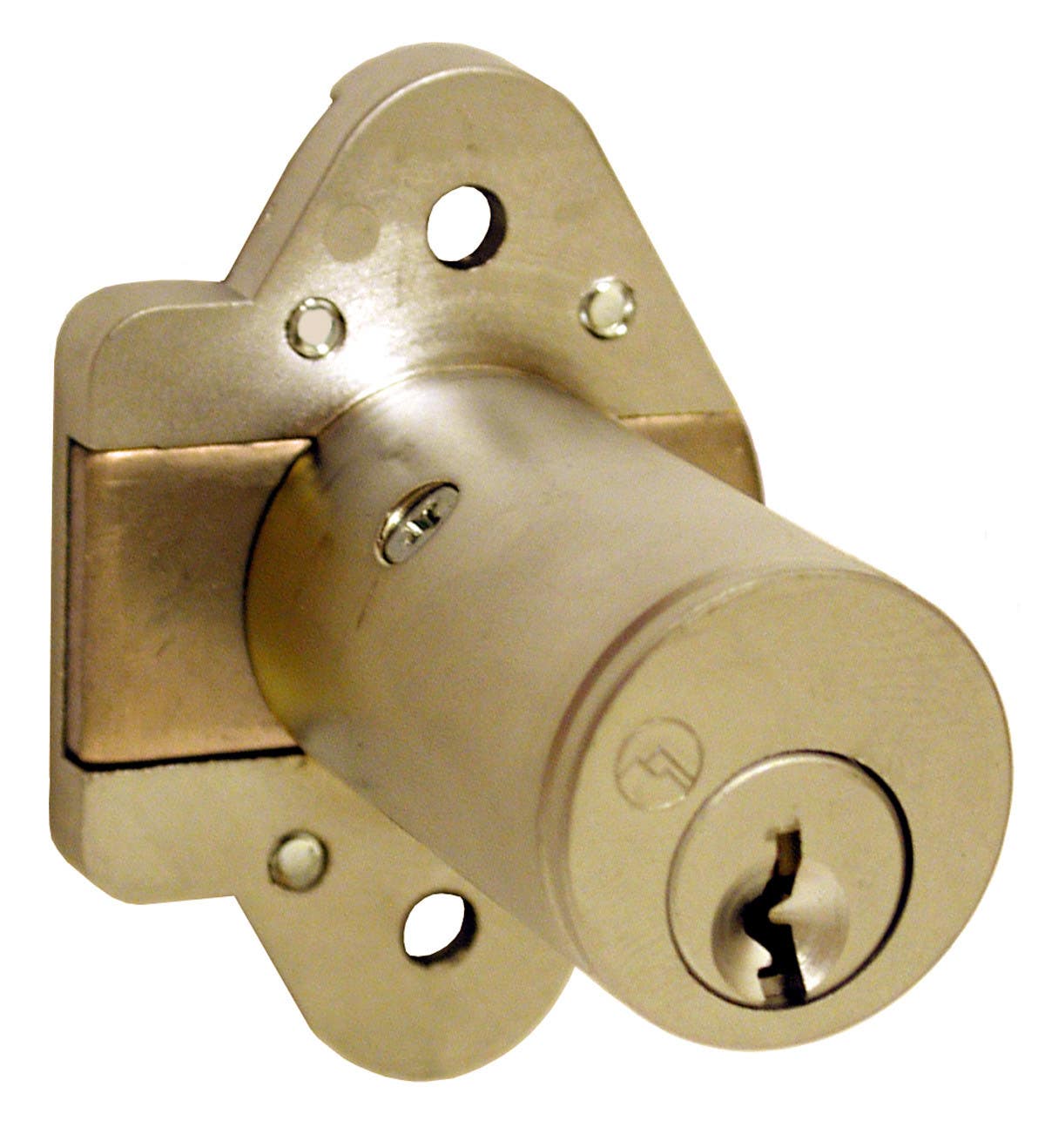

Olympus N078 Diamond Back Door Lock, Satin Chrome

$31.84

?

Details: Olympus N078 Diamond Back Door Lock, Satin Chrome

General Features

  • Cabinet lock - furniture drawer lock
  • Easily rekeyable set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • Barrel lengths: 1-1/8" or 1-3/8" (Specify barrel length when ordering)
  • Barrel diameter: 7/8"
  • 26D or US4 finish
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774

Keying

  • National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • Master keyed - 5 pin standard
  • Use N1 Pin Kit for rekeying
  • 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
  • 5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)

Available Separately

  • Spacer WP21, WP22, WP23
  • Strike 07S, 56-1, 12-1, 12-2
  • Reinforcing trim spacer ETS3
  • Reinforcing trim spacer template ETST3
  • Trim ring TR1256
  • Outbent drawer bolt 078-LB1-DW (available separately)

Downloads

Olympus Handing

Handed locks must be ordered either LH, RH, VH or IH (see figure at left).

Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.

Cabinet Doors

Left-hand (LH)
Hinged on left

Right-hand (LH)
Hinged on right

Drawers

Vertical-hand (VH)
Bolt locks up

Inverted-hand (IH)
Bolt locks down

Available Model Numbers and Combinations

Model/SKU Attributes
N078R26D-KA138 Keyed Alike, 4 Pin, Right Hand, 1-3/8", Not Included, Not Included
N078LUS4-MK78 Master Keyed, 5 Pin, Left Hand, 1-1/8", Not Included, Not Included
N078RUS4-MK78 LB-DR Master Keyed, 5 Pin, Right Hand, 1-1/8", Not Included, Included
N078LUS4-MK78 LB-DR Master Keyed, 5 Pin, Left Hand, 1-1/8", Not Included, Included
N078R26D-KA138 LB-DR Keyed Alike, 4 Pin, Right Hand, 1-3/8", Not Included, Included
N078LUS4-MK138 Master Keyed, 5 Pin, Left Hand, 1-3/8", Not Included, Not Included
N078R26D-KD78 Keyed Different, 4 Pin, Right Hand, 1-1/8", Not Included, Not Included
N078RUS4-MK138 Master Keyed, 5 Pin, Right Hand, 1-3/8", Not Included, Not Included
N078LUS4-MK138 LB-DR Master Keyed, 5 Pin, Left Hand, 1-3/8", Not Included, Included
N078R26D-KD78 LB-DR Keyed Different, 4 Pin, Right Hand, 1-1/8", Not Included, Included
N078RUS4-MK138 LB-DR Master Keyed, 5 Pin, Right Hand, 1-3/8", Not Included, Included
N078R26D-KD138 Keyed Different, 4 Pin, Right Hand, 1-3/8", Not Included, Not Included
N078L26D-KA78 Keyed Alike, 4 Pin, Left Hand, 1-1/8", Not Included, Not Included
N078R26D-KD138 LB-DR Keyed Different, 4 Pin, Right Hand, 1-3/8", Not Included, Included
N078L26D-KA78 LB-DR Keyed Alike, 4 Pin, Left Hand, 1-1/8", Not Included, Included

View All Model Numbers and Options
