> >>>Pemko 90062_NB Brush Gasketing / Door Bottom, 90-Degree 48"

Pemko 90062_NB Brush Gasketing / Door Bottom, 90-Degree 48"

90062

$17.42

?

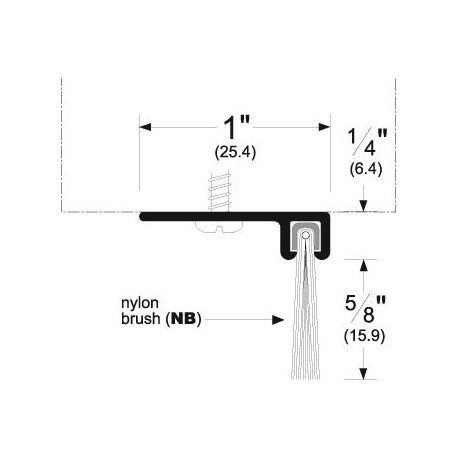

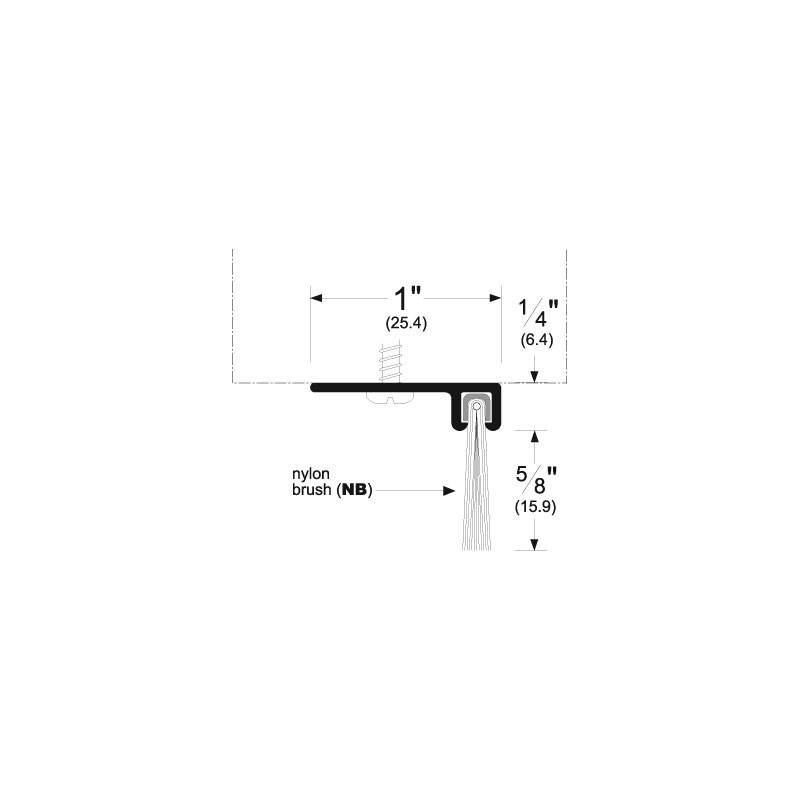

Details: Pemko 90062_NB Brush Gasketing / Door Bottom, 90-Degree 48"

Brush Door Sweeps are designed to seal the gap between the bottom of the door and the top of the threshold or floor surface. They are usually supplied with a flat flange. The flat flange provides the best contact between the brush and the threshold or floor surface.

  • Design permits use as a concealed seal for many applications.
  • Slotted holes for adjustment.
  • All clear anodized brush products are supplied with gray brush (available with black brush upon request). Other finishes supplied with black brush.
  • All brush seals consist of densely compressed nylon filaments encased in high quality aluminum retainers. These products are ideally suited for hollow metal and wood door (in-door sweep, jamb/header gasketing, and split astragal) applications. Also use our brush weatherstripping products on overhead doors, sectional doors, sliding doors, and automatic doors.
  • All brush seals greatly reduce the infiltration of light, air, wind, rain, and snow; prevent heat loss; control the penetration of smoke and fumes.
  • The dense nylon filaments conform to the contours of every sealing surface, providing a superior seal with extremely low closing force.
  • Brush remains flexible down to -40°F and has a melting point above 400°F.
  • UV stabilized, dependable, long-lasting, cost-effective.
  • Nylon brush insert is designated by a "NB" following the finish code.
  • All brush seals come with #6 × 5/8" stainless steel sheet metal screws.
  • Punched with slotted holes for adjustment (except 35° angle types which are drilled with 1/8" hole).

Door Bottom

  • Slotted holes for easy adjustment.
  • Design permits use as a concealed seal for many applications.
  • This brush gasketing is supplied with a Nylon Brush ("NB") insert - item number P516062 (available in gray and black).

Ratings

  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Finishes

  • 90062CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert
  • 90062DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert

Documentation

Available Model Numbers and Combinations

Model/SKU Attributes
90062CNB-12 12", Clear Anodized Aluminum with Gray Nylon Brush insert
90062CNB-24 24", Clear Anodized Aluminum with Gray Nylon Brush insert
90062CNB-36 36", Clear Anodized Aluminum with Gray Nylon Brush insert
90062CNB-48 48", Clear Anodized Aluminum with Gray Nylon Brush insert
90062CNB-72 72", Clear Anodized Aluminum with Gray Nylon Brush insert
90062DNB-12 12", D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
90062DNB-24 24", D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
90062DNB-36 36", D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
90062DNB-48 48", D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
90062DNB-72 72", D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
9006210BE-NB-12 12", Satin Bronze Powder Coat
9006210BE-NB-24 24", Satin Bronze Powder Coat
9006210BE-NB-36 36", Satin Bronze Powder Coat
9006210BE-NB-48 48", Satin Bronze Powder Coat
9006210BE-NB-72 72", Satin Bronze Powder Coat

View All Model Numbers and Options
