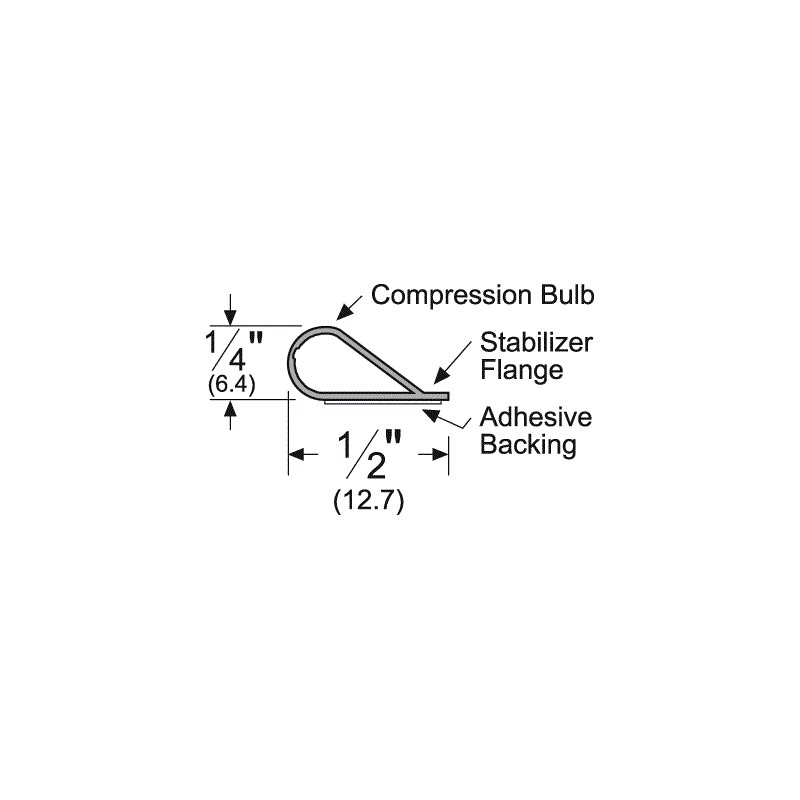

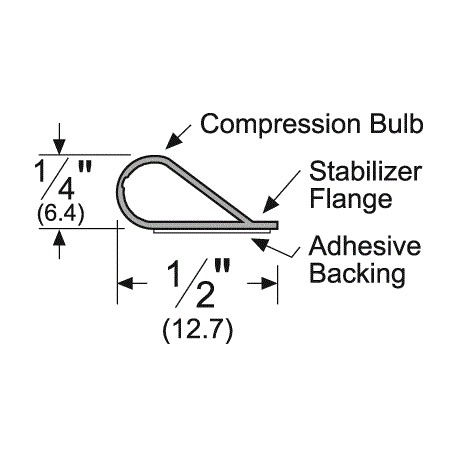

Pemko S88 Bulb Seal, 1/4"

S88

$40.89

?

Details: Pemko S88 Bulb Seal, 1/4"

SiliconSeal Fire/Smoke

  • Seal begins compressing at 1/4". Compresses to seal up to a 1/16" gap.
  • Available in black, clear, dark brown, gray, tan and white.
  • S88 is available in 17, 18, 20, 21, 25, 30, 204 and 510 ft. coils.
  • SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F.
  • Self-extinguishing and non-toxic. Unaffected by sunlight, ozone and ultraviolet rays.
  • Impervious to fungus and mildew; will not deteriorate under normal exposure.
  • Meets FAR 25.853 Airworthiness Standards for Compartment Interiors.
  • Smoke tested in accordance with UBC 7-2 and ul 1784-01; meets the requirements of NFPA 105 "Standard for the Installation of Smoke Door Assemblies and Other Opening Protectives".
  • S44, S77 and S88 are air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
  • Category B - Doors - additional edge sealing system required - see Category G. Requires Category G system with gasket for fire and possibly smoke.
  • Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors.
  • Category H - Gasketing - Smoke and draft control for positive pressure openings. Recommended products are PK33, PK55, S44, S88 and S773.
  • Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II.
  • Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door.
  • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
  • Category G
  • Storage and shelf life: All adhesive gaskets have a limited shelf life. This product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F). For further notes/details, please see Adhesive Gasketing section.

Ratings

  • Air Infiltration Tested
  • Intertek Testing (Warnock Hersey)
  • Sound Tested - ASTM E90
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - Edge Seals - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Finishes

  • S88BL: BL - Black Silicone
  • S88C: C - Clear Silicone
  • S88D: D - Dark Brown Silicone
  • S88GR: GR - Gray Silicone
  • S88TAN: TAN - Tan Silicone
  • S88W: W - White Silicone

Available Model Numbers and Combinations

Model/SKU Attributes
S88BL17 Flat Black, 17'
S88BL18 Flat Black, 18'
S88BL20 Flat Black, 20'
S88BL21 Flat Black, 21'
S88BL25 Flat Black, 25'
S88BL30 Flat Black, 30'
S88BL204 Flat Black, 204'
S88BL510 Flat Black, 510'
S88C17 Clear, 17'
S88C18 Clear, 18'
S88C20 Clear, 20'
S88C21 Clear, 21'
S88C25 Clear, 25'
S88C30 Clear, 30'
S88C204 Clear, 204'

View All Model Numbers and Options
