Reduced price! Precision 822 Removable Mullion - 2" x 3" x 8'-0"

Precision Hardware

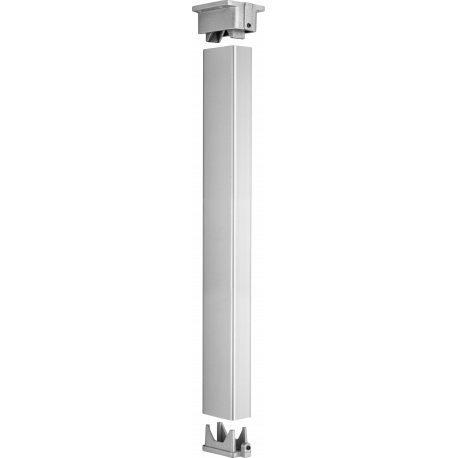

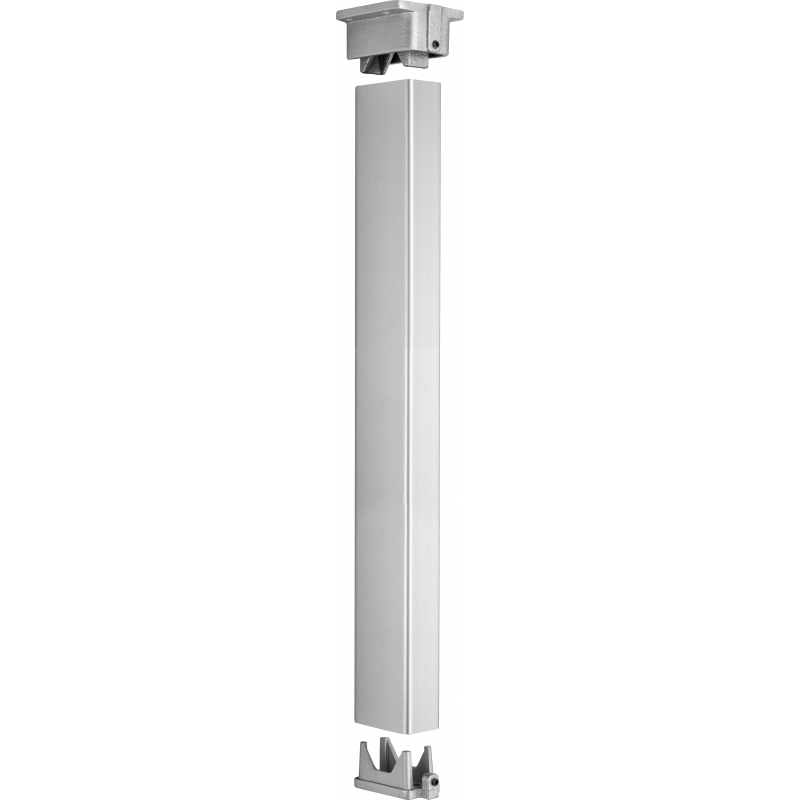

Precision 822 Removable Mullion - 2" x 3" x 8'-0"


Details: Precision 822 Removable Mullion - 2" x 3" x 8'-0"

U.L. Listed
FL822 and FLKR822 listed for Fire Exit Hardware. For FIRE LABEL RATING Chart see page 33. Mullion — 2" × 3" Steel
Mullion Base
Investment Cast Steel, 2" wide 3-1/2" deep. Furnished with steel anchors for concrete floors
Black Powder Coated Investment Cast Stainless Steel. Furnished standard for FL822 and FLKR822 Mullions. It interlocks the mullion to the Rim Active Case and S300 or S301 strike
Black Powder Coated Steel. Stabilizers are furnished standard for FL822 and FLKR822 Mullions
Mullion Cap Spacer
Minimum width 3-1/2". For 2-1/4" frame spacer specify part No. MCS822. For use with 822 series mullion only (e.g. 822, FL822, HC822, HCKR822, KR822, FLKR822). MCS822 Kit or 822 mullion sufix option. See "To Order" example below
822, FL822 Mullion Cap
MC822 Investment Cast Steel, 4" wide 3-5/8" deep
KR822, FLKR822 Key Removable Mullion Cap Assembly
Investment Cast Steel - can be ordered to convert existing 822 or FL822 mullions to Keyed Removable Mullions. Retrofits to the hole pattern of an MC822 Mullion Cap. To order specify: KMC822 or KMC822F
not furnished standard - Rim Type required. See page 19 for cylinder details

Mullion — 2" × 3" Steel Mullion is reinforced with a 1-1/2" × 2-1/2" 11 gage Steel Tube. MC822 or KMC822 Mullion Cap and MB822 Mullion Base Assemblies are used to secure the HC Mullion in the door opening. The S1447 Interlock must be used to Interlock the Active Case with the strike and is furnished standard with the HC822 Mullion. To Order: Specify Mullion No. Height Finish (e.g. MCS822 × 8'-0" × 600)
