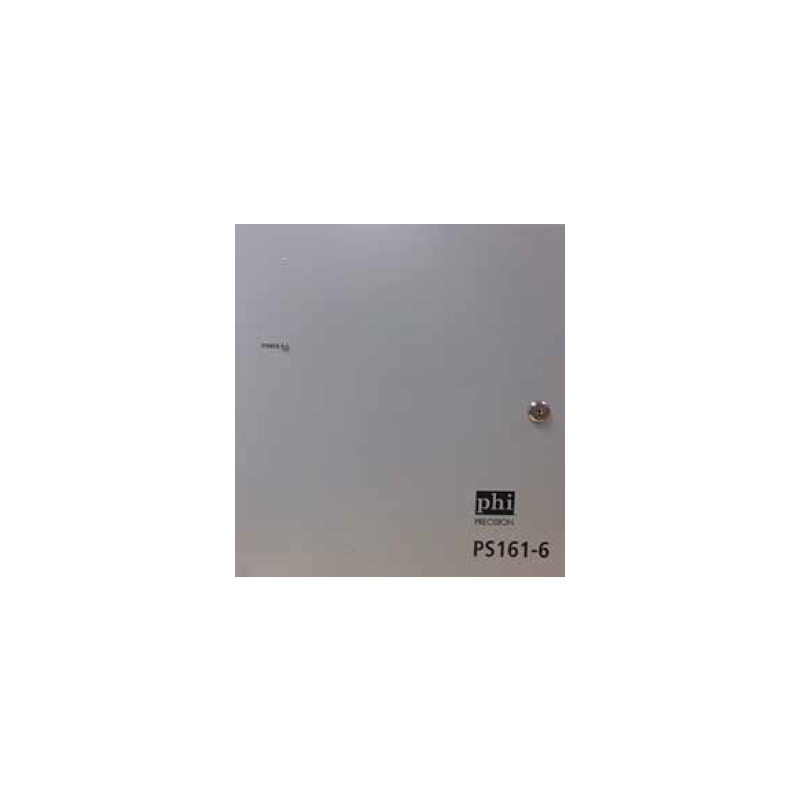

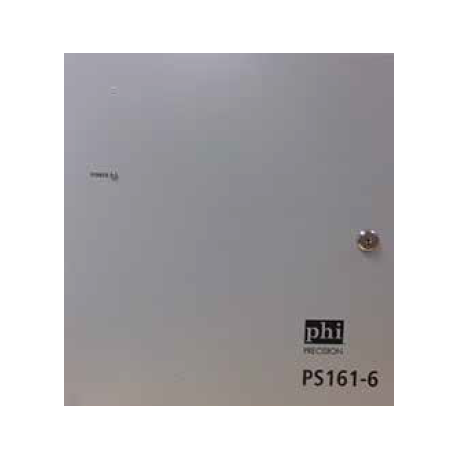

Precision PS161-6 Series Power Supply



Details: Precision PS161-6 Series Power Supply

The PS161-6 Power Supply is designed as a power source for a variety of applications including Electric Locking, Exit Alarm and Delayed Egress Exit Devices.

The Power Supply is a 120V input with a 12 or 24V output rated at 6A. It can control up to 4 delayed egress exit devices. Note: Adding additional loads to the PS161-6 Power Supply (i.e., Card readers, Horns, etc.) may reduce the quantity of Delay Egress Exit Devices controlled by the power supply.


  • Voltage: 120V AC, 60HZ
  • Current: 3.5A AC
  • Input fuse ratings: 5A/250V
  • AC input is protected via an automatic reset circuit breaker
  • Battery fuse ratings: 7.5A/32V


  • Voltage: 12 or 24V
  • Total output: 6 amps
  • Power limit/output: 2 amps/per channel
  • Outputs: 8 (For Delayed Egress applications: use only 4)
  • Ripple voltage: 910mV (Filtered and regulated outputs)
  • Protection: Thermal and short circuit protection with auto reset overload protection.

Battery Backup Charger

  • Built-in charger for sealed lead acid or gel type batteries (batteries not included)
  • Maximum charge current: 1.54A
  • Automatic switch over to stand-by is instantaneous with no interruption

Additional Features

  • Short circuit and overload protection.
  • Supervised Fire Alarm disconnect (latching or non-latching) on a normally open (NO) or normally closed (NC) trigger.
