RCI C800 Series Grade 1 Heavy-Duty Cylindrical Locksets




Details: RCI C800 Series Grade 1 Heavy-Duty Cylindrical Locksets

RCI C800 Series - Grade 1 Heavy-Duty Cylindrical Locksets

The C800 Series Grade 1 heavy-duty cylindrical locksets provide exceptional security, enhanced aesthetics, and rugged dependability. These premium locks are built with a high performance cylindrical chassis for all applications where ANSI/BHMA A156 2 Series 4000 Grade 1 products are required. To meet the aesthetic needs of your project, these versatile locks are available in a range of levers or knob trim design.


  • Educational facilities
  • Municipal buildings
  • Health care facilities
  • Retail outlets
  • Office complexes
  • Hotels
  • Apartments
  • Churches
  • Airports
  • Warehouses

  • Available on Satin Chrome (626) finish only. Consult factory for other finishes.
  • When locked, the "clutch" disengages outside lever. This reduces the torque applied to the outside lever, preventing vandalism (Refer to Image 1 above)
  • Cast stainless steel retractor with bronze roller bearings (Refer to Image 2 above)
  • Thru-bolting with #10 epoxy coated bolts (Refer to Image 3 above)
  • Lever set withstands torque of 1800 inch-pounds. Over twice ANSI/BHMA test value
  • Tested to over four million cycles
  • Ultra high strength springs eliminate lever droop.
  • Fits doors ranging in thickness from 1⅝" to 1⅞". No spacers or special tools required
  • Conventional "C" 6-pin Cylinder standard
  • 100% continuous duty cycle (bridge rectifier supplied)
  • Voltage: 12 or 24VDC
  • Fail Locked/Unlocked
  • Non-handed
  • Satin Chrome Plated (26D) standard
  • Made in the USA

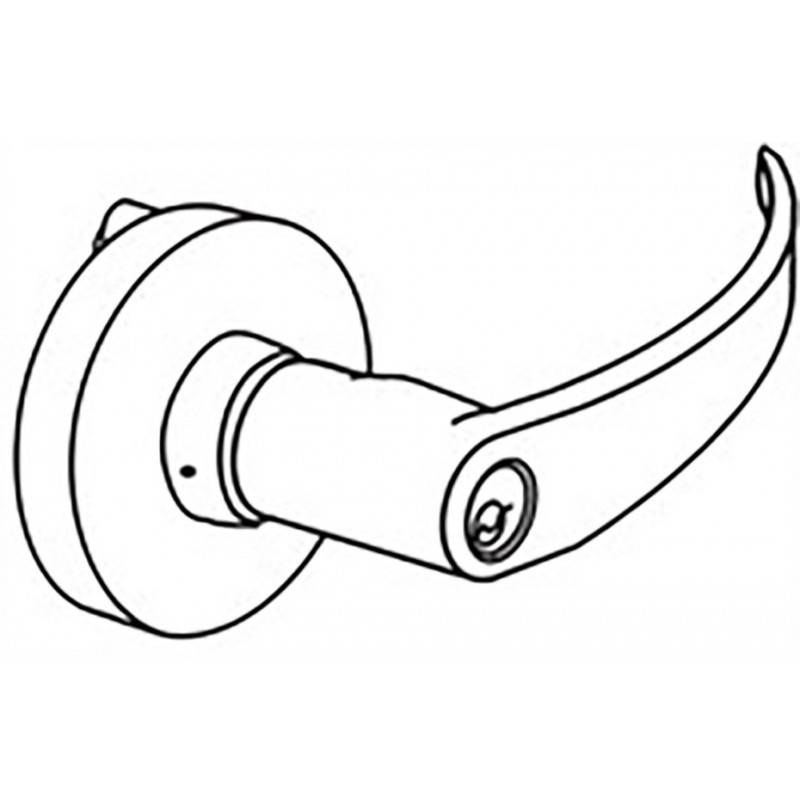

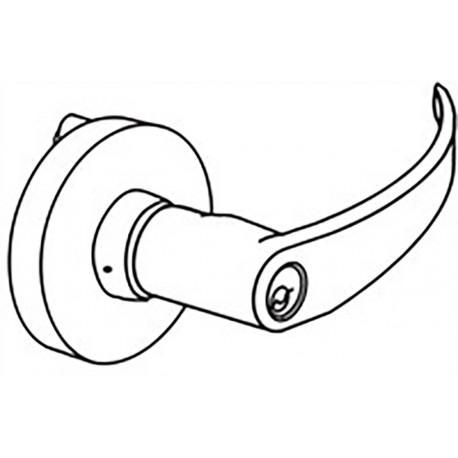

Lever Types
