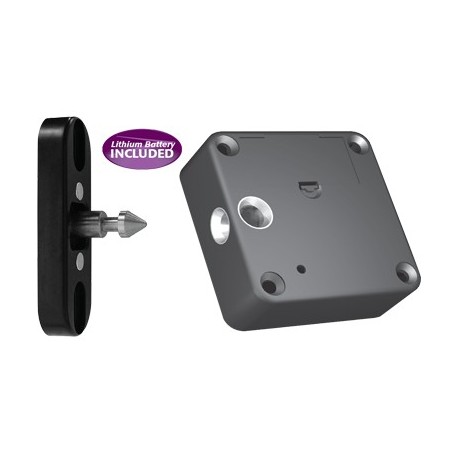

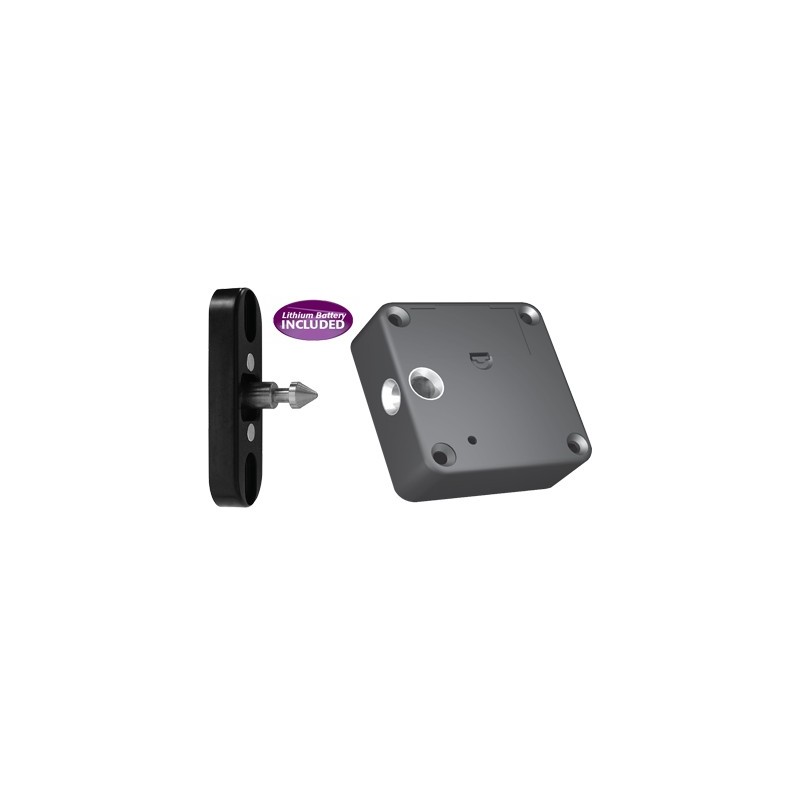

RCI 3590 Lock N' Prox

$461.16

Details: RCI 3590 Lock N' Prox

STANDARD FEATURES

  • Easy to install and simple to program without PC and software
  • Can be fitted to sliding doors, drawer fronts, drawer backs, leaf doors, glass etc.
  • Up to 25mm of reliable reading through wood material without external antenna
  • 50 users per lock capability
  • Minimum 30,000 latch openings per life of battery (Lithium battery included)
  • Low battery audible warning
  • Fail locked. Fail unlocked when battery fails.
  • Very robust, impact-proof motor operation
  • Audible signal upon card presentation
OPTIONS:
  • Flexible, project-based programming and functions available
  • Door Open alarm function with 3590ACRD and 3590AFOB
  • Various catch options available, including spring open door release
Drawer Application
3590_DrawerFront
Front Face Mount
Installs using Standard Locking Pin.
3590_DrawerBack
Back of Drawer
Installs using Locking Pin with Alarm function.
Requires external reader.
Sliding & Swing Door Application

3590_SlideDrawer
Sliding Glass
Installs using Locking Pin with Alarm function and Glass Mounting Kit

3590_drawerdoor
Pivoting Door Mount
Installs using Standard
Locking Pin

Dimensions:
LOCK:
⅞"D × 2⅜"W × 2⅜"L (21.8 mm × 60.1mm × 60.1mm)
STANDARD PIN:
⅞"D × 2-51⁄64"W × 2-5⁄64"L (22.2mm × 70.9mm × 52.8mm)
LOCKING PIN with spring release:
1-31⁄32"D × 51⁄64"W × 1-31⁄32"L (50mm × 20.3mm × 50mm)
LOCKING PIN with alarm:
¾"D × 2-11⁄32"W × 1"L (19mm × 59.7mm × 25.4mm)

Mode of Operation:Fail Locked

Cycle Rating:30,000

Holding Force (Manufacturer Tested)STANDARD PIN
141lb (64kg)
LOCKING PIN with alarm
450lb (240kg)

Power Requirements:3V - Lithium battery

Low Battery Warning:
Audible Alarm will sound for 10 seconds. Fail Unlocked when battery power fails.

Operating Temperature:
14ºF to 140ºF (-10°C to 60°C)
Model
Description 3590CRDBattery Powered Cabinet Lock3590ACRDBattery Powered Cabinet Lock3590FOBBattery Powered Cabinet Lock3590AFOBBattery Powered Cabinet Lock
Token Type Token type Photo Locking Pin Locking Pin Photo Also Includes Prox Card 3590_ProxCard Standard Locking Pin
(no alarm function)
3590_StandardPin 3V Lithium Battery for 3590 Lock, 2 × Proximity Cards, 1 × Programming Card, Hardware kit Prox Card 3590_ProxCard Locking Pin with Alarm Function
Pre-programmed with Held Open (for a min of 20 sec.) and Forced Open alarm
3590_AlarmPin 3V Lithium Battery for 3590 Lock, 2 × Proximity Cards, 1 × Programming Card, Hardware kit Prox Fob 3590_Fob Standard Locking Pin
(no alarm function)
3590_StandardPin 3V Lithium Battery for 3590 Lock, 2 × Proximity Fobs, 1 × Programming Card, Hardware kit Prox Fob 3590_Fob Locking Pin with Alarm Function
Pre-programmed with Held Open (for a min of 20 sec.) and Forced Open alarm
3590_AlarmPin 3V Lithium Battery for 3590 Lock, 2 × Proximity Fobs, 1 × Programming Card, Hardware kit

Available Model Numbers and Combinations

Model/SKU Attributes
3590FOB 3590FOB - Standard Locking Pin - Proximity Fobs - 2 pack
3590CRD 3590CRD -Standard Locking Pin - Proximity Cards - 2 pack
3590ACRD 3590ACRD - Locking Pin with Alarm Function - Proximity Cards - 2 pack
3590AFOB 3590AFOB - Locking Pin with Alarm Function - Proximity Fobs - 2 pack
