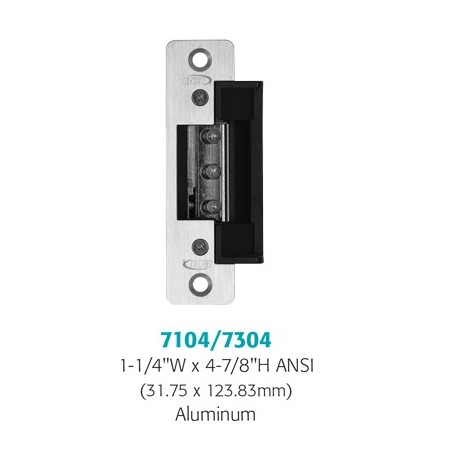

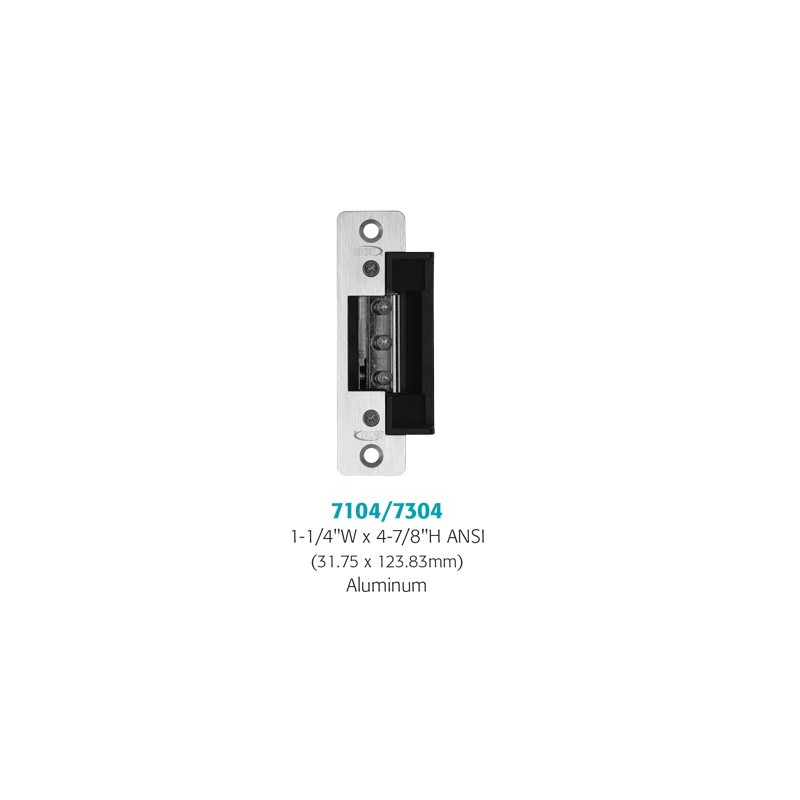

RCI 7 Series Centerline Strikes

$197.00

Details: RCI 7 Series Centerline Strikes

*See Related Products for additional options

STANDARD FEATURES

  • Accommodates ⅝" latch projection (pullman design not included)
  • 1/8" Horizontal adjustment
  • Unique anti-vibration design prevents manipulation by vibration
  • Enlarged latch cavity width allows compatibility with cylindrical, narrowline aluminum and centerline mortise locks (including 3-piece anti-friction type)
  • 1½" cut-out depth accommodates most aluminum and wood frames
  • Use with wide range of door thicknesses (1⅜" to 2⅜")
  • AC/DC input acceptable for fail locked models. Fail unlocked mode requires DC
  • Non-Handed
  • Standard mounting tabs, fasteners, and trim plate included
Model
Mode 71XX-01Fail Locked71XX-05DFail Locked71XX-07Fail Locked71XX-08DFail Locked73XX-06Fail Unlocked73XX-09
Fail Unlocked
Voltage Current Duty Sound Amps* Ohms** 11-16V
 AC
 Intermittent Buzz 0.35/0.55 22.5 12V DC Continuous Silent 0.28
 43 24V AC Intermittent Buzz 0.50
 41 24V DC Continuous Slient 0.15
 170 12V DC Continuous Silent 0.24 51 24V DC Continuous Silent 0.15 160

Fail Locked = Fail Secure = FL
Fail Unlocked = Fail Safe = FUL

AC = Alternating Current Intermittent Duty
DC = Direct Current Continuous Duty
Intermittent Duty = Energized less than 1 min.
Continuous Duty = Energized 1 min. or more. Duty Ratio 1:5.
*Ratings are based on maximum current draw at +10°C and include initial power-up current draw.
**Nominal resistance at +25°C ± 7% tolerance.

NOTE:

XX = Faceplate Code.

Specifications & Options

Strike Type
Mortise, Cylindrical
Security
Fail Safe, Fail Secure
Voltage
12VDC, 24VDC
Door Frame
Aluminum, Wood
Monitoring
Latchbolt
Position
Centerline
Bolt Throw / Projection
5/8"
