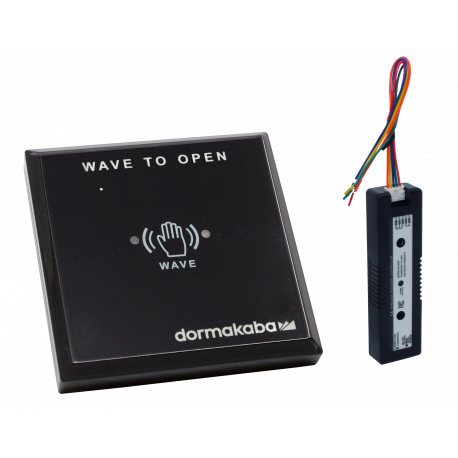

RCI 912-WBT Battery Power, Touch-Free Actuator (Glass & Marble Surfaces)



Details: RCI 912-WBT Battery Power, Touch-Free Actuator (Glass & Marble Surfaces)

The RCI 912 Series wireless, battery power, actuators utilize proven infrared motion detection technology to ensure consistent, dependable touch-free activation and can be adjusted to comply with ANSI knowing act applications.

The 912 Series, available in three models including 912GL for glass wall or door applications, detects moving objects such as a hand, reflective object, cart, or wheelchair and is ideal for use in hospitals, pharmacies, clean rooms, food service facilities, and other applications requiring a hygienic touch free activation method.


  • Infrared Motion Detection Technology
  • Touch Free Activation with hand or reflective object provides clean and hygienic activation (less than 130 ms)
  • Silent activation for hospitals and other noise-sensitive environments
  • 2.4Ghz transmitter and receiver (line of site +30 meters/100ft)
  • SPDT relay output can be used for signaling/switching automatic doors and access control (3A @ 30VDC)
  • Low power consumption providing long battery life (4"AA"-912, 2"AA"-912N, 2"AAA"-912GL). Batteries not included.
  • Detection distance is adjustable from 3~30 cm (1"-12")
  • Selectable activation output between 1.5 seconds or "latching", meaning activation "on", activation "off"
  • Receiver voltage input 12-30 VDC
  • FCC, CE certified


  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
