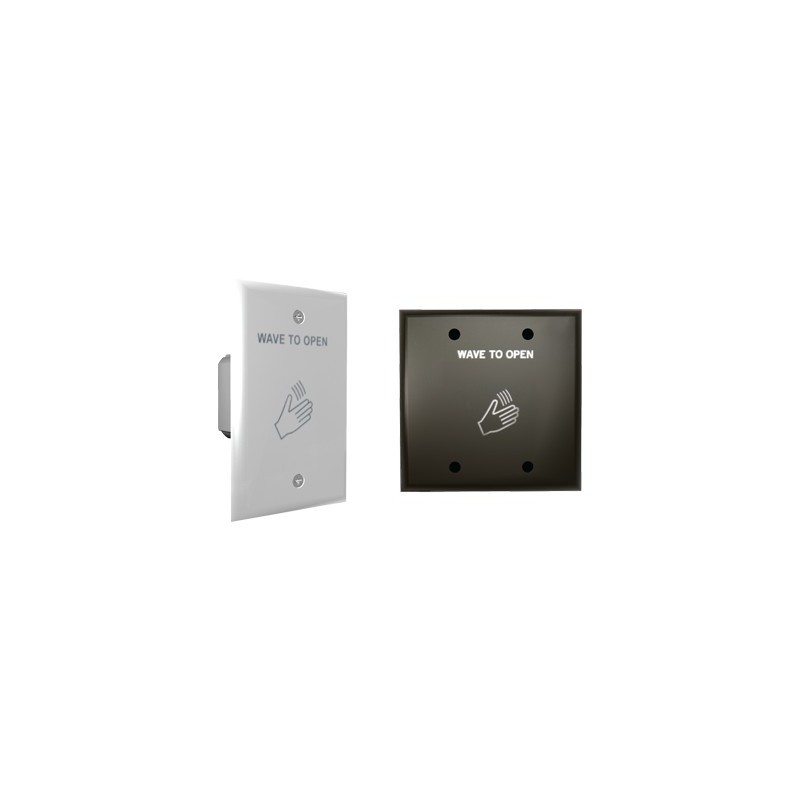

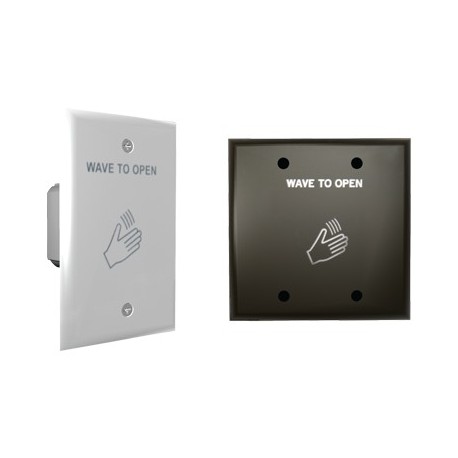

Details: RCI 913 Microwave Motion Switch

Standard Features

• Doppler Radar technology allows for use in sterile environments (i.e. clean-rooms, healthcare facilities, food processing plants)
• It can be placed unobtrusively in a room or hallway when mounted behind a non-reflective surface for a clean non-visible solution
• Variable adjustment of pattern depth from 4 to 24 inches
• No wearing parts mean increased product life
• Water-resistant foam gasket provides increased durability when product is exposed to water or cleaning product
• 12 to 24 VDC/AC
• Contact rated at 1 Amp
• Multiple Colors
• Easy Installation

Technology

Microwave motion switch Radiated Frequency24.125 GHzRadiated Power Density5 mW/cm²Supply voltage12 to 24VAC ± 10% 12 to 24VDC +30% / -10%Supply Frequency50 to 60HzPower Consumption<1.5WRelay contact rating (max current)1A (resistive)Output Relay with switch-over contact (voltage free) Relay contact rating (max voltage)60 VDC/125 VACMax switching power30W (DC)/ 60VA (AC)

Detection Range

4" to 24" (adjustable)

Detection Mode

Motion (bidirectional)

Output Hold Time

0.5s (in pulsed mode)

Temperature Range

-4°F to + 131°F

Immunity

Immune to electrical and radio frequency interference

Weight

0.34 lbs.

Material

ASA, Nylon, PC

Certification

Electromagnetic compatibility (EMC) according to 2004/108/EC FCC: G9B-MS08 IC: 4680A-MS08
