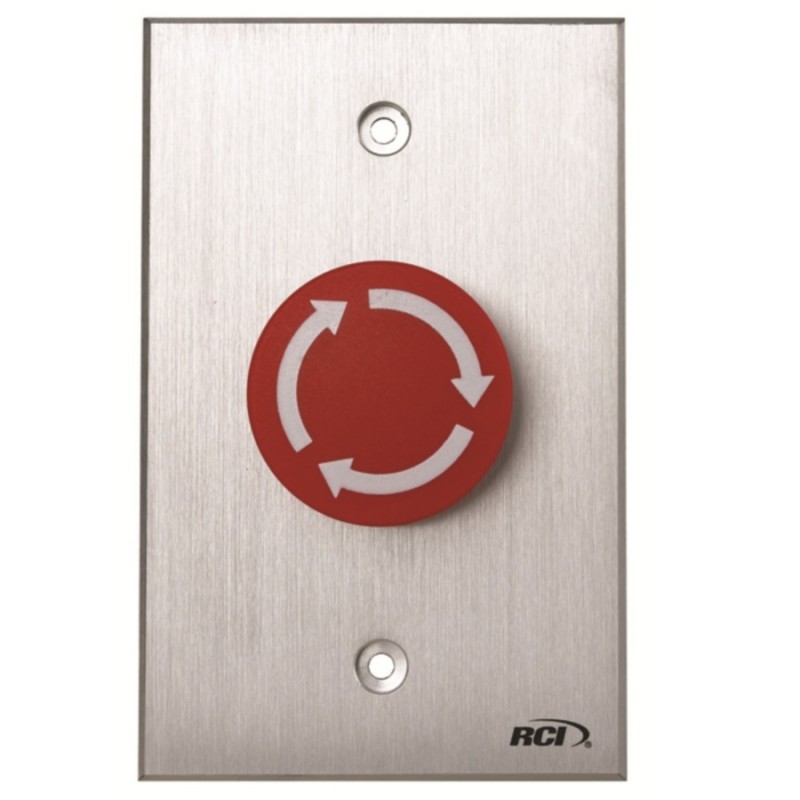

RCI 919 Rotary-Release Pushbutton

$198.00

Details: RCI 919 Rotary-Release Pushbutton

Standard Features

  • For request-to-exit applications to prevent user from inadvertently re-engaging lock
  • Push the button once to engage; twist cap in direction of arrows to release
  • Fits standard single-gang surface or recessed electrical boxes (optional)
  • Latching momentary action
  • Brushed Anodized Aluminum or Brushed Anodized Dark Bronze finish

919 Faceplate Dimensions

3" × 4¾" (76.2mm × 120.7mm)
Button diameter is 1¾".

N/C - Normally Closed;
N/O - Normally Open

Finish 28 - Brushed Anodized Aluminum
Finish 40 - Brushed Anodized Dark Bronze

919 Side Profile

916-918-919_Sideprofile

Available Model Numbers and Combinations

Model/SKU Attributes
919-MA x 40
919-MA x 28
