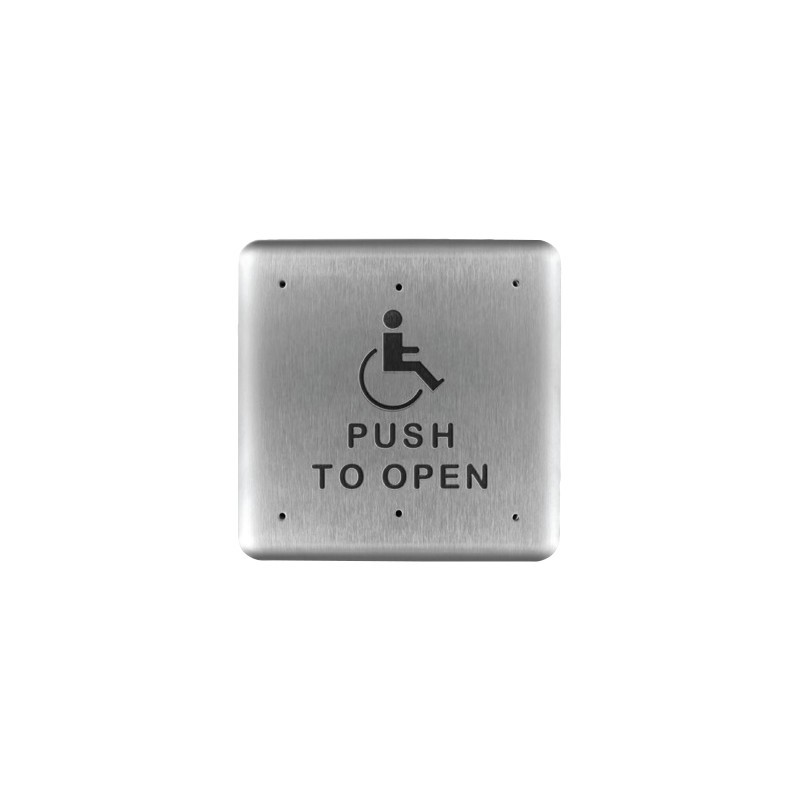

RCI 946 Series Push Plates 6"

$123.00

Details: RCI 946 Series Push Plates 6"

Standard Features

  • Text and logo are baked onto the surface for maximum durability
  • Stainless Steel (scratch/scuff resistant)
  • Tamper-Resistant
  • Ideal for Vandal-Prone Areas
  • Lifetime Warranty
  • Front plate comes off for mounting (946HP45)

946-475 & 946-6

  • 946-475 model features a large 4¾" (120.65mm) square button
  • 946-6 model features large 6" (152.4mm) square button
  • Available in multiple styles to meet specifications and customer requests
  • Momentary action switch standard
  • Stainless steel faceplate
  • Tamper-Resistant
  • Perfect for any wall application

946Hp45

  • Screws are on the outside surface allowing easy removal or installation of pushplate
  • Perfect for wall applications because they are easy to see, but unobtrusive to the aesthetics of the building
  • Stainless steel faceplate
  • Tamper-Resistant
  • An all-active plate activates with any "push" location
  • Weather boot between plate and back plate for all weather applications
  • Screws come in multiple sizes (#6) which fit both single and double gang mounting boxes

946-475 & 946-6

  • 16 gauge, 304 2B stainless steel faceplate
  • 1/8" thick, aluminum back plate
  • Stainless steel 6-32 × 1" and 8-32 × 1", Allen head mounting screws
  • Cherry Switch: Single-pole, 15A, COM/ NO/NC Contacts

946Hp45

  • 16 gauge, 304 2B stainless steel faceplate
  • 16 gauge, 304 2B stainless steel back plate
  • Stainless steel 6-32 × 1" Phillips head mounting screws
  • Stainless steel 6-32 ×¼" Phillips or tamper-resistant Spanner head assembly screw
  • Cherry Switch: Single-pole, 15A, COM/ NO/NC contacts
  • Powdercoat the clear coated faceplates available on certain styles
  • Wire nuts

946 4¾" & 6"

946 4½"

Available Model Numbers and Combinations

Model/SKU Attributes
946HP6 Momentary, Handicap Symbol & "Push to Open"
946H6 Momentary, Handicap Symbol
