RCI 9503/9505 Ball Transfers

$305.00

Details: RCI 9503/9505 Ball Transfers

Standard Features

  • 9503 4-ball (flush) transfers is recessed mounted on either hinge side, lock side or head frame
  • Current rating 0.5A/24VAC
  • Corrosion resistant gold plated balls ideal for extremely low traffic applications
  • White plastic housing

Specifications

Model
Mounting 9503Mortise9505Surface
Door Status Type Ratings Material Finish Yes -
4-ball contact
Ball 0.5A/24VAC Gold-plated
on Plastic
White Yes -
4-ball contact
Ball 0.5A/24VAC Gold-plated
on Plastic
White

NOTE: It is recommended that preparation for wires, etc, for all surface-mounted models be done on-site. Conduits supplied by others.

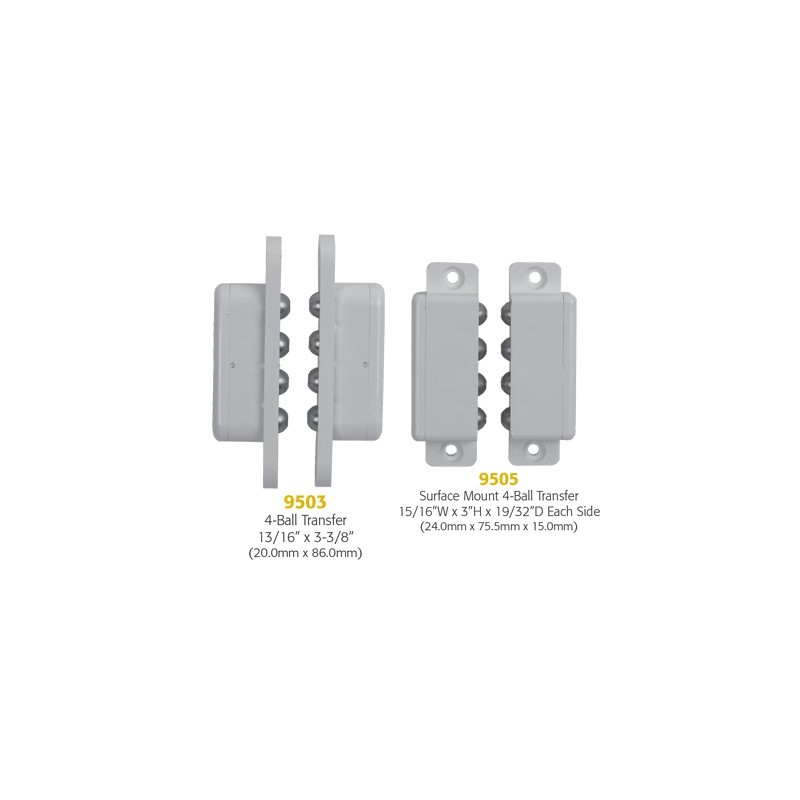

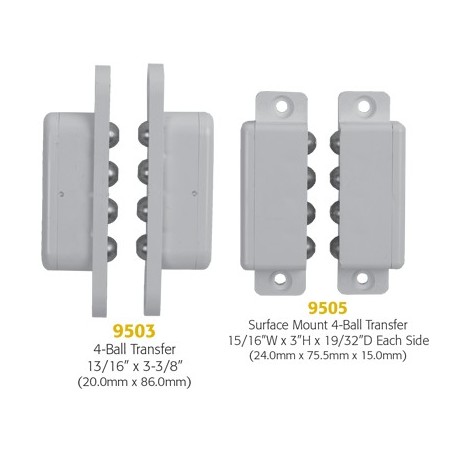

9503 - 4-Ball Mortise Transfer Dimensions

13⁄16" × 3⅜" (20.0mm × 86.0mm)

9505 - Surface Mount 4-Ball Transfer Dimensions

15⁄16"W × 3"H × 19⁄32"D Each Side (24.0mm × 75.5mm × 15.0mm)

9503 Dimensional Profile:

9503_Dimensions

Available Model Numbers and Combinations

Model/SKU Attributes
RCI9505 4 ball contact; surface
RCI9503 4 ball contact; mortise
