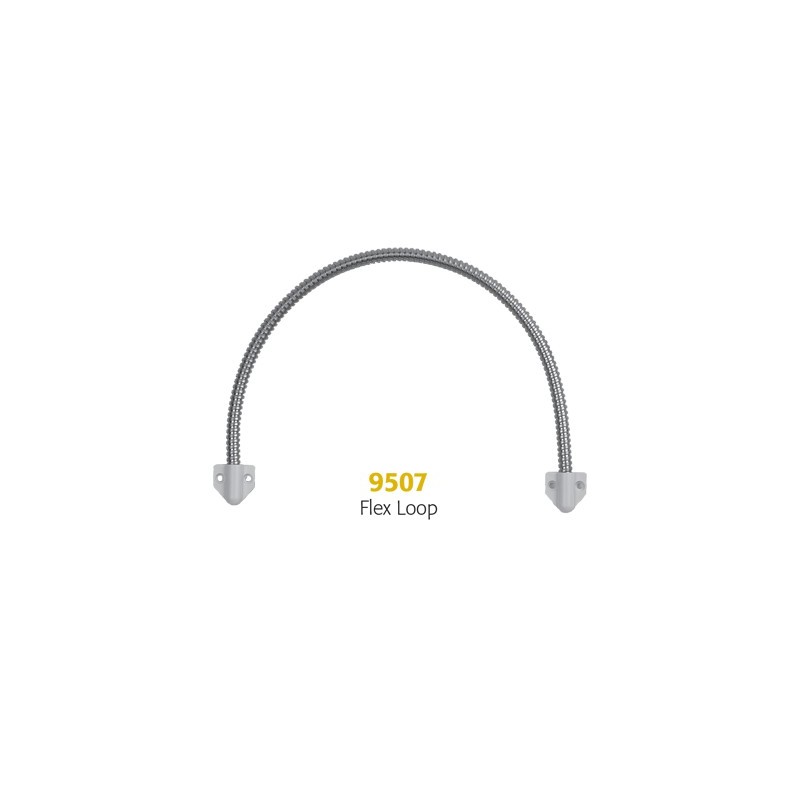

RCI 9507 Flex Loops

$20.00

Details: RCI 9507 Flex Loops

Standard Features

  • Surface mounted on hinge side
  • Stainless steel cable
  • White plastic end caps
  • 9507 - Accepts up to 4 conductor @ 22 ga. or 2 conductor @ 18 ga.

Specifications

Model
Mounting 9507Surface
Door Status Type Ratings Material Finish No Flex Loop 4 cond. @ 22ga.
2 cond. @ 18ga.
Stainless Steel
Coated Brass
Silver, White or Brown

NOTE: It is recommended that preparation for wires, etc, for all surface-mounted models be done on-site. Conduits supplied by others.

Available Sizes

7", 12", 18", 24", 36"
(177.8mm, 304.8mm, 457.2mm, 609.6mm, 914.4mm)

9507 Dimensional Profile:

9507_Dimensions
