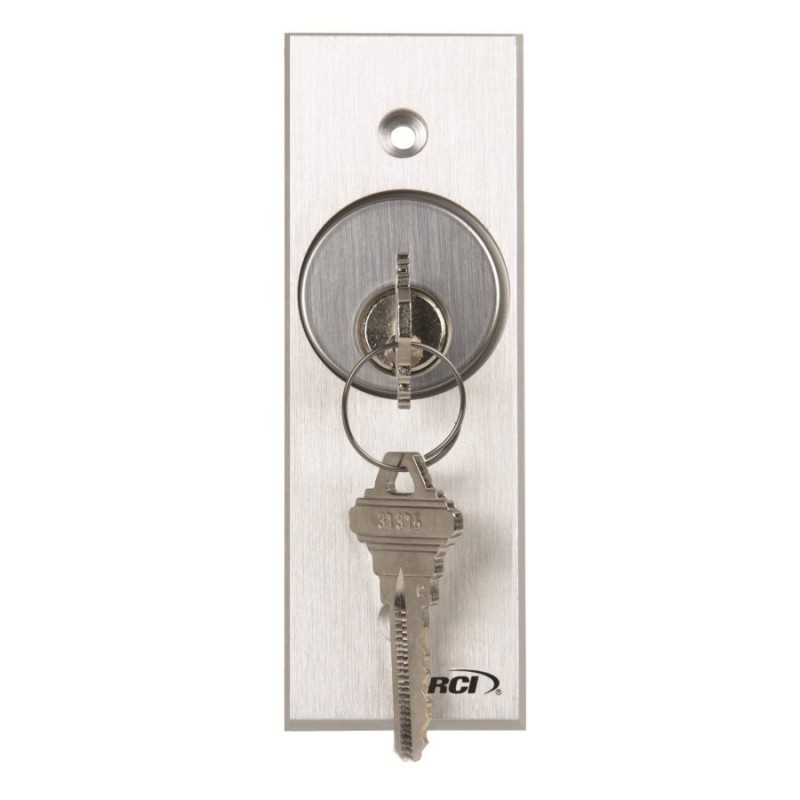

RCI 960 Tamper-Resistant Keyswitch
960
Details: RCI 960 Tamper-Resistant Keyswitch
The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (2-SPDT) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).
Features
960 Tamper-Resistant Keyswitch
- Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
- Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
- One-piece bracket with two-position switch holder
- Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
- Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
- Hardware kit includes stainless steel tamper-proof screws and spanner bit
- Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
- 2 Year Limited Warranty
960RO Tamper-Resistant Keyswitch with Reset/Override
- Quickly mounts to single gang box
- Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
- One-piece bracket with two-position switch holder
- Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
- Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (2-SPDT) switches available
- Hardware kit includes stainless steel tamper-proof screws and spanner bit
- Screen-printed reset/override with directional arrows indicate the function of corresponding switch model
- Brushed Anodized Aluminum (28)
- 2 Year Limited Warranty
Technical Data
960 Tamper-Resistant Keyswitch
- Standard
- 3"W × 4-3/4"H (76mm × 121mm)
- Narrow
- 1-5/8"W × 4-3/4"H (41mm × 121mm)
960RO Tamper-Resistant Keyswitch with Reset/Override
- Standard
- 3"W × 4-3/4"H (76mm × 121mm)
- Narrow
- 1-5/8"W × 4-3/4"H (41mm × 121mm)
Components
Accessories
- 96-CYLKA
- Mortise cylinder, straight cam, keyed alike
- 96-CYLKD
- Mortise cylinder, straight cam, keyed differently
Applications
For commercial, industrial and institutional applications in high use areas:
- Vestibules
- Storefront
- Commercial
- Industrial
- Health Care
