Pemko SA Automatic Door Bottom

SA

$80.97

?

Details: Pemko SA Automatic Door Bottom

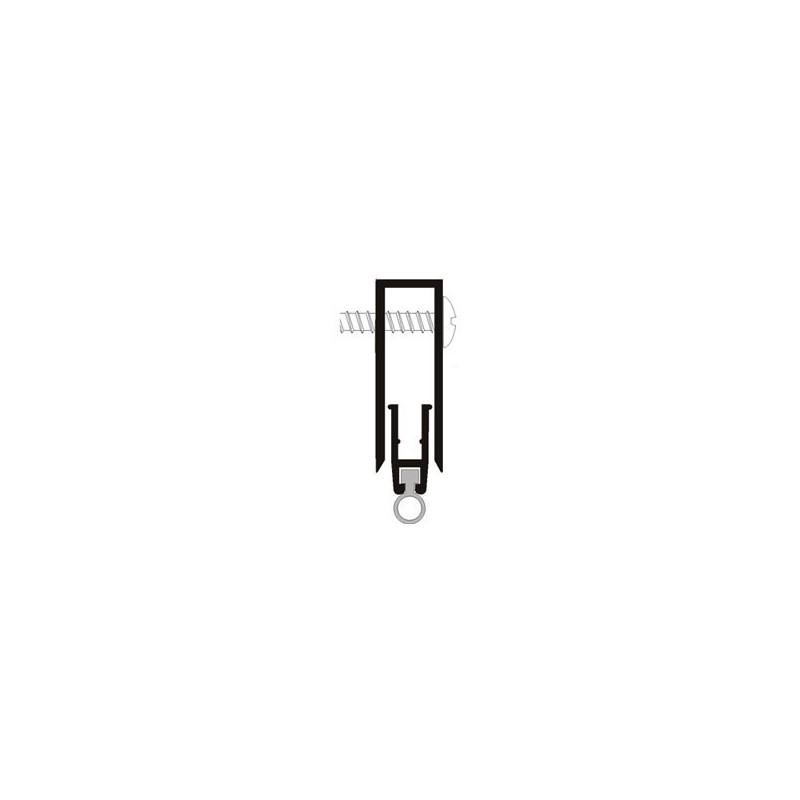

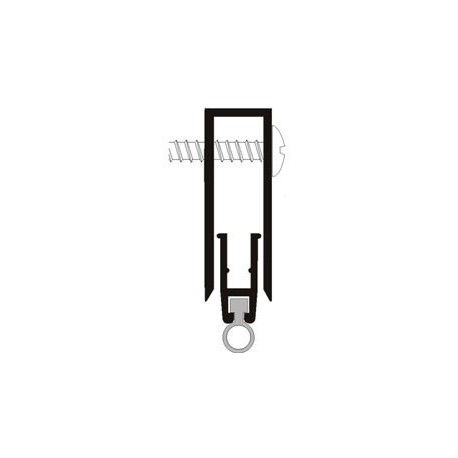

These automatic door bottoms consist of an aluminum case which surrounds a movable drop bar seal. The drop bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop bar seal down against the floor or threshold.

  • When the plunger contacts the jamb, the drop bar seal actuates from the hinge side first allowing multiple compression points.
  • The plunger requires low "FeatherTouch" closing force to actuate the drop bar seal. The "L" at the end of all product numbers stands for Low closing force.
  • End plates are provided for all mounting applications.
  • Available in sizes ranging from 18" to 72"
  • All automatic door bottoms are provided net length.
  • Stock length automatic door bottoms can be trimmed as much as 2".

Pemko SA1_ Automatic Door Bottom

  • Door Bottom is 28" long. 2" maximum trim.
  • End plates are not provided.
  • 1/2" maximum drop.

Pemko SA2_ Automatic Door Bottom

  • Door Bottom is 32" long. 2" maximum trim.
  • 1/2"maximum drop.
  • End plates are not provided.

Pemko SA3_ Automatic Door Bottom

  • Door Bottom is 36" long. 2" maximum trim.
  • 1/2" maximum drop.
  • End plates are not provided.

Pemko SA4_ Automatic Door Bottom

  • Door Bottom is 42" long. 2" maximum trim.
  • 1/2" maximum drop.
  • End plates are not provided.

Ratings SA1

  • Air Infiltration Tested
  • Barrier-Free
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10

Ratings SA2

  • Air Infiltration Tested
  • Barrier-Free
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10

Ratings SA3

  • Air Infiltration Tested
  • Sound Tested - ASTM E90
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10

Ratings SA4

  • Air Infiltration Tested
  • Sound Tested - ASTM E90
  • BHMA Certified
  • Smoke Tested - UL1784
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10

Finishes

  • SA1: A - Mill Finish Aluminum Aluminum with Gray Vinyl insert
  • SA1D: D - Dark Bronze Anodized Aluminum with Black Vinyl insert
  • SA2: A - Mill Finish Aluminum Aluminum with Gray Vinyl insert
  • SA2D: D - Dark Bronze Anodized Aluminum with Black Vinyl insert
  • SA3: A - Mill Finish Aluminum Aluminum with Gray Vinyl insert
  • SA3D: D - Dark Bronze Anodized Aluminum with Black Vinyl insert
  • SA4: A - Mill Finish Aluminum Aluminum with Gray Vinyl insert
  • SA4D: D - Dark Bronze Anodized Aluminum with Black Vinyl insert

Documentation SA1

Documentation SA2

Documentation SA3

Documentation

Available Model Numbers and Combinations

Model/SKU Attributes
SA1 28", Aluminum w/ Gray Vinyl Insert
SA2 32", Aluminum w/ Gray Vinyl Insert
SA3 36", Aluminum w/ Gray Vinyl Insert
SA4 42", Aluminum w/ Gray Vinyl Insert
SA1D 28", Dark Bronze Aluminum w/ Black Vinyl Insert
SA2D 32", Dark Bronze Aluminum w/ Black Vinyl Insert
SA3D 36", Dark Bronze Aluminum w/ Black Vinyl Insert
SA4D 42", Dark Bronze Aluminum w/ Black Vinyl Insert
