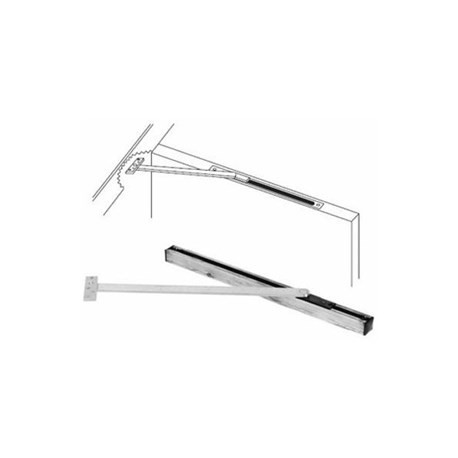

Details: Rixson 1-2 & 6-336 Checkmate Stops and Holders (Concealed)

Rixson 1 Series Checkmate Heavy Duty Hold Open Door Closer

Product Description & Features

• Heavy-duty
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for high traffic, heavy abuse installations
• Heavy shock absorber spring provides 5 -7° compression before dead stop
• LS option omits spring for special applications
• Surface on/off knob on hold open models
• Stop, friction stay or hold open functions
• For security areas, Torx® screws available for exposed fasteners
• 110° maximum opening
• 1¾" minimum door thickness, for thicker doors, note thickness when ordering
• 1-3⁄16" square channel
• Stop function UL listed for fire door assemblies
• Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory

Rixson 2-Series Adjustable Standard Duty Concealed Holder/stop

Product Description & Features

• Adjustable, standard duty
• Interior doors
• Doors may be single or double acting
• Non-handed
• Slide track design
• Recommended for moderate traffic, medium weight doors
• Degree of opening is fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides 5 -7° compression before dead stop
• Can be ordered specifically as a stop, friction stay, or hold open
• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in the field. 5012-PKG (Adapter kit) included
• Complete screw packet kit for installation in wood or metal door and frame
• For security areas, Torx screws available for exposed fasteners, but heavy-duty units should be considered for high security applications
• Standard architectural finishes
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• Stop function UL listed for fire door assemblies
• Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory

Rixson 6-336 Heavy Duty Concealed Mount Low Profile Stop For Aluminum Storefront Doors

Product Description & Features

• Low profile
• Interior or exterior doors
• Doors may be single or double acting
• Non-handed
• Recommended for moderate traffic, medium weight doors
• Low profile concealed channel designed for installation in aluminum storefront doors
• Heavy shock absorber spring provides 5-7° compression before dead stop
• Complete screw kit allows for installation in wood or metal door and frame
• For security areas, Torx screws optional
• Standard architectural finishes
• Durable slider cam
• 110° maximum opening
• 1¾" minimum door thickness
• Channel is 1¼" wide by½" deep
• UL listed for fire door assemblies
• Hanging means other than standard butts or offset pivots require special templating and pricing. Consult factory
• Available in stop function only
