Reduced price! Rockwood 105 x 70 Pull Plate 5-1/2" CTC Pull Plate

Rockwood Mfg

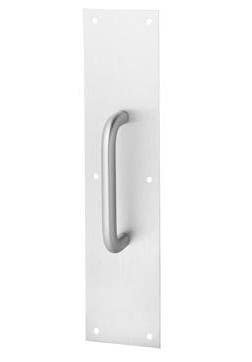

Rockwood 105 x 70 Pull Plate 5-1/2" CTC Pull Plate

$123.54

?

Details: Rockwood 105 x 70 Pull Plate 5-1/2" CTC Pull Plate

The sound six hole mounting configuration. Smooth sleek finish, the Rockwood Commercial Standard Gauge Pull Plate. Best of both worlds. Style, functionality, and years of prestigious experience. Rockwood produces their most modern products not based on 'how to,' but 'how has.' Rockwood has over half a century of research and development behind everything they do. Founded in Pennsylvania in the 1940's the American tradition of Rockwood holds strong. This pull plate comes standard with an outstanding Warranty. All Rockwood pull plates offer high levels of satisfaction. Sure to please for many years, and available in seven color finishes. A perfect match to your new or pre-existing decor.

Specification:

Material: Aluminum, Brass, Bronze, Stainless Steel

Fastener: #6 × 5/8 OHSMS; 1/4 -20 × 2-1/4 Thru Bolt & Finish Washer (standard 1-3/4" door).

Option

  • Barrier Free available in 2-1/2" clearance - use BF prefix when ordering (BF105 × 70B).
  • Advise if door thickness is other than 1-3/4".
  • Mounting selections for standard duty 1⁄4-20 can be viewed under Mounting Details on this site.
Pull:¾" dia. CTC: 5-1/2"

Plate: 70

Size: 3-1/2" × 15"

Weight: 2.1 lbs.

ANSI A156.6: J405

Warranty Information

Available Model Numbers and Combinations

Model/SKU Attributes
105 x 70B-10/612 3-1/2" x 15"
105 x 70B-32D/630 3-1/2" x 15"
105 x 70B-32/629 Polished Stainless Steel, 3-1/2" x 15"
105 x 70B-3/605 3-1/2" x 15"
105 x 70B-10B/613 3-1/2" x 15"
105 x 70B-26D/626 3-1/2" x 15"
105 x 70B-26/625 3-1/2" x 15"
105 x 70B-4/606 3-1/2" x 15"
105 x 70B-10BE/BSP Black Suede Powder Coat, 3-1/2" x 15"
105 x 70B-32DMS 3-1/2" x 15"
105 x 70B-28/628 Satin Aluminum, Clear Anodized, 3-1/2" x 15"
105 x 70B-32D316 3-1/2" x 15"
105 x 70C-10/612 4" x 16"
105 x 70C-32D/630 4" x 16"
105 x 70C-32/629 Polished Stainless Steel, 4" x 16"

View All Model Numbers and Options
