Reduced price! Sargent 278 Concealed Door Closers

Sargent

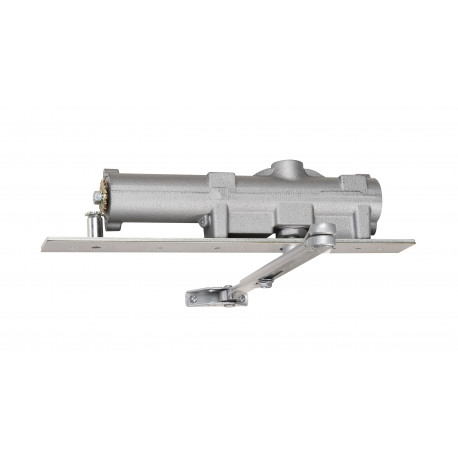

Sargent 278 Concealed Door Closer

278

$711.71

Details: Sargent 278 Concealed Door Closer

The 278 Series is a Concealed Door Closer with Exposed Arm that is a rugged exit device in surface vertical rod and rim designs. The door closers are adjusted to meet ADA conditions or other reduced opening force requirements.

Features

  • Semi Concealed: Closer body concealed in frame head and closer arm attaches to the surface of the door face
  • Removable stop required (supplied)
  • Closer faceplate furnished
  • Arm assembly are forged and wrought steel
  • Handed - Order the same hand as the door
  • Closing force adjustable 1 thru 6
  • Suitable for interior doors up to 5' wide
  • Suitable for exterior doors up to 4' wide
  • Closers are factory preset for 3' door width
  • Closers can be factory preset upon request
  • Delayed Action option available - DA Suffix
  • Auxiliary door stop required

Strength & Durability

  • ANSI/BHMA Grade 1 (A156.4)
  • Conforms with Standards UL 10C "Positive Pressure Fire Tests of Door Assemblies" and UBC 7-2
  • One piece cast iron body
  • 1-1/2" dia. piston for superior door control
  • Heat treated spindle and piston for years of reliable service
  • Captivated brass valves provide easy door control while preventing accidental valve removal

Aesthetics & Flexibility

  • Powder coated and plated finishes available to match SARGENT door trim
  • Closing force adjustable through a range of BHMA sizes
  • Optional hold open feature available
  • Fusible hold open arms available for fire rated openings
  • Adjustable to meet ADA requirements
  • All weather fluid allows closer to operate properly in extreme cold and hot
  • environments without readjustment

Security

  • Forged steel main arm
  • Concealed in-frame design inhibits possible tampering
  • Security screws available
  • Pressure relief valves allow closer to absorb abusive forces, preventing
  • damage to doors and frames

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Available Model Numbers and Combinations

Model/SKU Attributes
278OEx 10BEx RH Exposed Standard Arm, Oxidized Satin Bronze, Right Hand
278OEx 10BEx LH Exposed Standard Arm, Oxidized Satin Bronze, Left Hand
278OEx EBx RH Exposed Standard Arm, Bronze Sprayed or Powder Coated to match 10B, Right Hand
278OEx EBx LH Exposed Standard Arm, Bronze Sprayed or Powder Coated to match 10B, Left Hand
278OEx EDx RH Exposed Standard Arm, Black Powder Coated to match finish 20D, Right Hand
278OEx EDx LH Exposed Standard Arm, Black Powder Coated to match finish 20D, Left Hand
278OEx ENx RH Exposed Standard Arm, Aluminum Sprayed or Powder Coated, Right Hand
278OEx ENx LH Exposed Standard Arm, Aluminum Sprayed or Powder Coated, Left Hand
278OEx EPx RH Exposed Standard Arm, Bronze Sprayed or Powder Coated to match 10, Right Hand
278OEx EPx LH Exposed Standard Arm, Bronze Sprayed or Powder Coated to match 10, Left Hand
278OEx EABx RH Exposed Standard Arm, Brass Sprayed or Powder Coated, Right Hand
278OEx EABx LH Exposed Standard Arm, Brass Sprayed or Powder Coated, Left Hand
278OEx BSPx RH Exposed Standard Arm, Black Suede Powder Coat, Right Hand
278OEx BSPx LH Exposed Standard Arm, Black Suede Powder Coat, Left Hand
278OEx WSPx RH Exposed Standard Arm, White Suede Powder Coat, Right Hand

View All Model Numbers and Options
