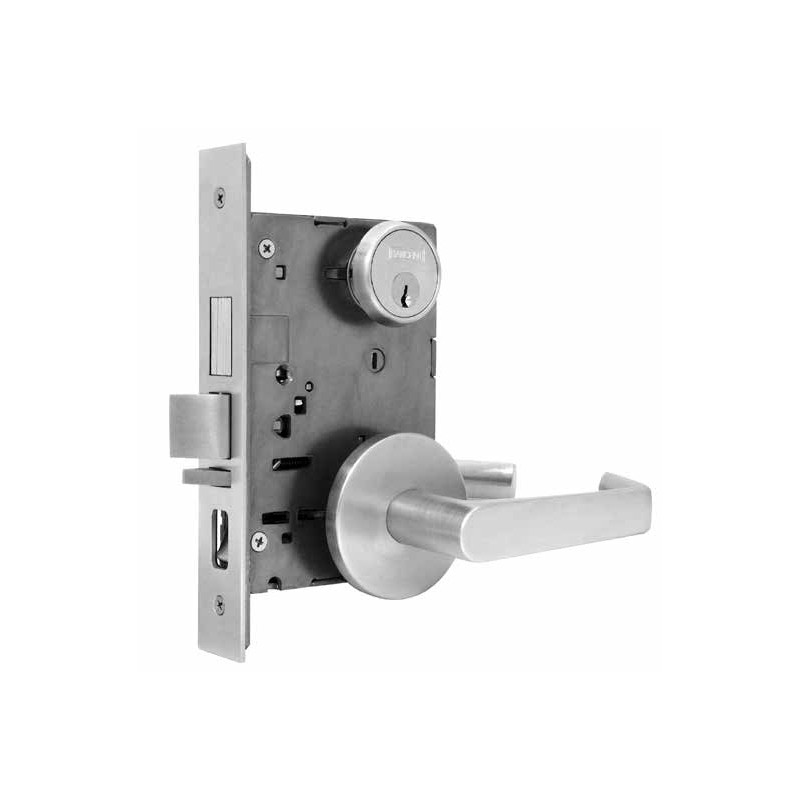

Details: Sargent 7900 Series Mortise Lock Studio Collection Wooster Square

Product Details

The SARGENT 7900 Series Mortise Locks provide a quality Grade 1 lock ideal for schools, apartment housing and commercial buildings. Certified to ANSI/BHMA Grade 1 standards and UL fire-tested for all functions, the 7900 Mortise Lock ensures durability and protection.

Features

Durability

Certified to ANSI A156.13, Series 1000, Operational Grade 1 with all trim designs
Heavy duty spring provides long life and reduces lever sag
3/4" Projection stainless steel latchbolt. One piece construction
Steel deadbolt assembly with 13 gauge hardened steel insert, 1" (25mm) projection
5 Year mechanical warranty and 2 year warranty on electrified locks

Flexibility

Lock is easily re-handed by rotating the locking piece. Latchbolt is changed by removing the outside front and rotating the latchbolt 180°

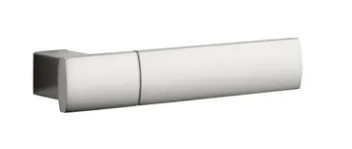

Conventional lever design in four universal styles available with the "O" rose or two styles of escutcheon
13 standard architectural grade finishes
21 functions, including 4 electrical functions
Available for door thicknesses 1-3/8" (35mm), 1-3/4" (44mm), 2" (50mm) and 2-1/4" (57mm)
UL listed (10C and UBC 7-2, 1997) for use on single fire doors up to 4' × 10' and double doors up to 8' × 8'

Certification Compliance

Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1
Meets A117.1 Accessibility Code. Complies with Americans with Disabilities Act
UL and UL listed to Canadian safety standards for A label (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
California State Reference Code

Innovations

Latchbolt retracts with only 30º of lever rotation
Internal lever spring offers a sleek appearance, simplifies installation and reduces external components
Solenoid controlled locking mechanisms for remote convenience to lock and unlock the 7900 Series Mortise lock featuring ElectroLynx™ quick connectors
Security
Torx® and spanner screws
Can be master keyed or grand masterkeyed
Construction key available

Available Model Numbers and Combinations

Model/SKU	Attributes
7916-12Vx CRH001x RHx 32SC	Apartment/Exit/Public Toilet, 12VC, CR Rose, H001 Lever, Right Handed, Polished Stainless Steel, Schlage C Keyway Cylinder, 0-bitted
7916-12Vx TOH001x RHx 14SC	Apartment/Exit/Public Toilet, 12VC, TO Rose, H001 Lever, Right Handed, Bright Nickel Plated, Schlage C Keyway Cylinder, 0-bitted
7916-12Vx E3H001x RHx 03SC	Apartment/Exit/Public Toilet, 12VC, E3 Rose, H001 Lever, Right Handed, Bright Brass, Schlage C Keyway Cylinder, 0-bitted
7916-24Vx COH002x LHx 26SC	Apartment/Exit/Public Toilet, 24VC, CO Rose, H002 Lever, Left Handed, Bright Chrome, Schlage C Keyway Cylinder, 0-bitted
7916-24Vx OH002x LHx 10SC	Apartment/Exit/Public Toilet, 24VC, O Rose, H002 Lever, Left Handed, Satin Bronze, Schlage C Keyway Cylinder, 0-bitted
7916-24Vx E2H002x LHx 26DSC	Apartment/Exit/Public Toilet, 24VC, E2 Rose, H002 Lever, Left Handed, Satin Chrome, Schlage C Keyway Cylinder, 0-bitted
7938x COH002x RHx 20DSC	Classroom Security Intruder, CO Rose, H002 Lever, Right Handed, Statuary Dark Bronze, Schlage C Keyway Cylinder, 0-bitted
7938x OH002x RHx 09SC	Classroom Security Intruder, O Rose, H002 Lever, Right Handed, Polished Bronze, Schlage C Keyway Cylinder, 0-bitted
7938x E2H002x RHx 10BESC	Classroom Security Intruder, E2 Rose, H002 Lever, Right Handed, Oxidized Satin Bronze, Schlage C Keyway Cylinder, 0-bitted
7938-12Vx COH001x LHx 15SC	Classroom Security Intruder, 12VC, CO Rose, H001 Lever, Left Handed, Satin Nickel, Schlage C Keyway Cylinder, 0-bitted
7938-12Vx OH001x LHx 04SC	Classroom Security Intruder, 12VC, O Rose, H001 Lever, Left Handed, Satin Brass, Schlage C Keyway Cylinder, 0-bitted
7938-12Vx E2H001x RHx 32SC	Classroom Security Intruder, 12VC, E2 Rose, H001 Lever, Right Handed, Polished Stainless Steel, Schlage C Keyway Cylinder, 0-bitted
7938-24Vx COH001x RHx 14SC	Classroom Security Intruder, 24VC, CO Rose, H001 Lever, Right Handed, Bright Nickel Plated, Schlage C Keyway Cylinder, 0-bitted
7938-24Vx OH001x RHx 03SC	Classroom Security Intruder, 24VC, O Rose, H001 Lever, Right Handed, Bright Brass, Schlage C Keyway Cylinder, 0-bitted
7938-24Vx TRH002x LHx 26SC	Classroom Security Intruder, 24VC, TR Rose, H002 Lever, Left Handed, Bright Chrome, Schlage C Keyway Cylinder, 0-bitted
