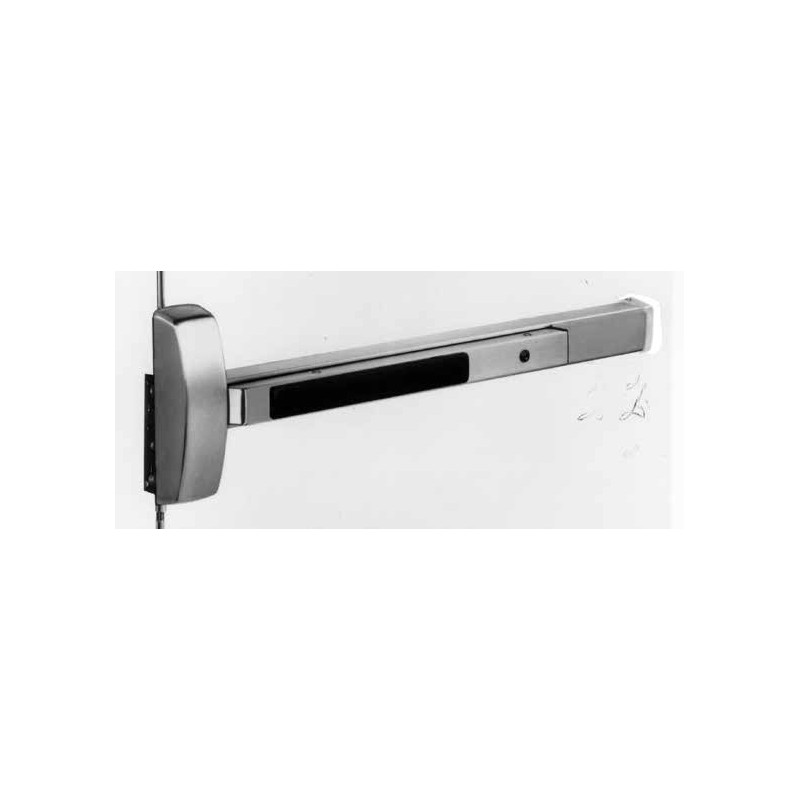

Details: Sargent 8600 Series Concealed Vertical Rod Exit Device w/ 862, 863, 864 Pull

SARGENT manufactures a fine line of exit devices providing the best combination of simplicity, durability, strength, aesthetics and innovation. The 8600 is designed for standard width stile applications on hollow metal doors with concealed rods for security and aesthetics.(Windstorm Rated)

Features

Single and double door applications
Specify NB-for less bottom rod
Devices are ANSI A156.3 - Grade 1
UL Fire and Panic listed
UL Listed to ANSI 250.13 Severe Windstorm and listed on Florida Building Code Website. Approved for use in Dade County, Florida with Notice of Acceptance

Specifications

Door Types: Metal 1-3/4"(44mm) minimum thickness. For doors over 1-3/4" to 2-1/4 thick, specify thickness and order as 31- option 4-1/2" (114mm) minimum stile width
Door Widths
E Rail: 24" to 32" (61cm to 81cm) No cutting required for 32" door;
F Rail: 33" to 36" (84cm to 91cm) No cutting required for 36" door
J Rail: 37" to 42" (94cm to 107cm) No cutting required for 42" door;
G Rail: 43" to 48" (110cm to 122cm) No cutting required for 48" door
Strike: 650 Top Strike & 606 Bottom Strike (Panic & Fire Rated)
Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
Electric Options: AL-alarm, PL-SARGuide photoluminescent coated, BT-Beacon, TL-SARGuide illuminated Touchpad, 53-LX latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit signal-Rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric dogging, 59-Electroguard-Self contained delayed egress (NB-excluded)
Mounting Fasteners: Supplied standard with wood and machine screws
Top bolt: Stainless Steel
Device Centerline from Finished Floor: 41" (1041 mm) for standard applications. 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 series Auxiliary Control is used
Center Case Dimensions: 8-3/8" (213mm) × 2-5/8" (67mm)
Projection: Pushbar Neutral — 3" (76 mm); Pushbar Depressed — 2-1/8" (54 mm)
Door opening/height: Must be specified- 120" (3048mm) Max. door opening

Available Model Numbers and Combinations

Model/SKU	Attributes
8663Ex 10BEx RHR	63 Lever, 24" to 32", Not Included, Oxidized Satin Bronze, Right Hand Reverse
8663Ex 10BEx LHR	63 Lever, 24" to 32", Not Included, Oxidized Satin Bronze, Left Hand Reverse
8663Ex 32Dx RHR	63 Lever, 24" to 32", Not Included, Satin Nickel, Right Hand Reverse
8663Ex 32Dx LHR	63 Lever, 24" to 32", Not Included, Satin Nickel, Left Hand Reverse
8663Ex BSPx RHR	63 Lever, 24" to 32", Not Included, Black Suede Powder Coat, Right Hand Reverse
8663Ex BSPx LHR	63 Lever, 24" to 32", Not Included, Black Suede Powder Coat, Left Hand Reverse
8663Ex WSPx RHR	63 Lever, 24" to 32", Not Included, White Suede Powder Coat, Right Hand Reverse
8663Ex WSPx LHR	63 Lever, 24" to 32", Not Included, White Suede Powder Coat, Left Hand Reverse
8663Ex 03x RHR	63 Lever, 24" to 32", Not Included, Bright Brass, Right Hand Reverse
8663Ex 03x LHR	63 Lever, 24" to 32", Not Included, Bright Brass, Left Hand Reverse
8663Ex 04x RHR	63 Lever, 24" to 32", Not Included, Satin Brass, Right Hand Reverse
8663Ex 04x LHR	63 Lever, 24" to 32", Not Included, Satin Brass, Left Hand Reverse
8663Ex 10x RHR	63 Lever, 24" to 32", Not Included, Satin Bronze, Right Hand Reverse
8663Ex 10x LHR	63 Lever, 24" to 32", Not Included, Satin Bronze, Left Hand Reverse
8663Ex 10Bx RHR	63 Lever, 24" to 32", Not Included, Dark Oxidized Satin Bronze Oil Rubbed, Right Hand Reverse

View All Model Numbers and Options
