Reduced price! Sargent ET 9800 Series Rim Exit Device w/ Gramercy, Wooster Square, Grant Park Levers

Sargent

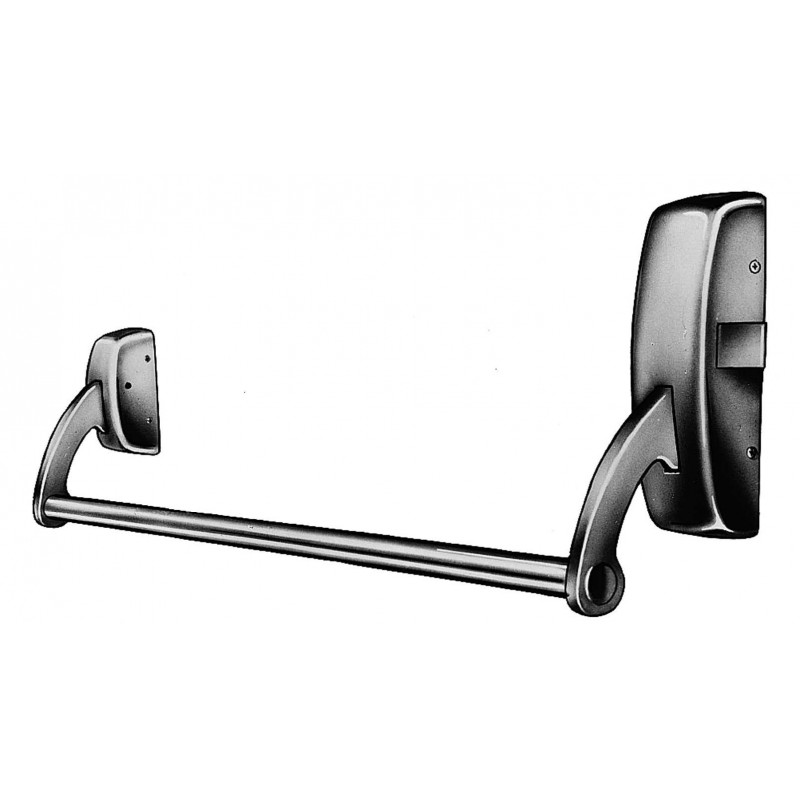

Sargent ET 9800 Series Rim Exit Device w/ Gramercy, Wooster Square, Grant Park Lever

98

$2,839.23

?

Details: Sargent ET 9800 Series Rim Exit Device w/ Gramercy, Wooster Square, Grant Park Lever

For single door and pairs of doors, the 9800 series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton and the cross bars are cut to the correct door width.

Features

  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
  • All crossbar assemblies or brass, bronze or stainless steel (see specific device)
  • Stainless steel springs throughout
  • Trim is through-bolted
  • All exit devices meet ANSI A156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • All fire exit hardware for hollow metal door applications listed up to 3 hours (A label) (Double Doors require astragal)
  • All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog

Specifications

For Doors
Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile
Mounting
Supplied standard with wood and machine screws. Through-bolts available on order
Chassis Cover
Brass, bronze or stainless steel
Chassis
Nonferrous alloy
Crossbar
1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
Hand
Reversible
Dogging
Standard Allen key dogging
Strike
649 standard strike for panic and fire
Functions 75 and 76 not available with 12
fire rated 9800 devices

Available Model Numbers and Combinations

Model/SKU Attributes
9815x ETH008x 32D-12Vx RHR Trim Always Operable, H008 Grant, Satin Nickel, -12V, Right Hand Reverse
9810x ETH006x 04-12Vx LHR Dummy Trim, H006 Wooster Square, Satin Brass, -12V, Left Hand Reverse
9815x ETH005x 10-24Vx LHR Trim Always Operable, H005 Wooster Square, Satin Bronze, -24V, Left Hand Reverse
9875x ETRAMx 09x RHR Fail Safe w/o Cylinder, RAM Gramercy, Bright Bronze, Right Hand Reverse
9875x ETRAMx 20Dx RHR Fail Safe w/o Cylinder, RAM Gramercy, Statuary Dark Bronze, Right Hand Reverse
984x ETRCMx 04-12Vx RHR Key Retracts Latchbolt, RCM Gramercy, Satin Brass, -12V, Right Hand Reverse
984x ETRCMx 10B-24Vx LHR Key Retracts Latchbolt, RCM Gramercy, Dark Oxidized Satin Bronze Oil Rubbed, -24V, Left Hand Reverse
9810x ETRASx WSPx RHR Dummy Trim, RAS Gramercy, White Suede Powder Coat, Right Hand Reverse
9810x ETH002x 32x RHR Dummy Trim, H002 Wooster Square, Polished Stainless Steel, Right Hand Reverse
9813x ETRAWx WSPx RHR Key Unlocks/locks Control, RAW Gramercy, White Suede Powder Coat, Right Hand Reverse
9813x ETH003x 32x RHR Key Unlocks/locks Control, H003 Wooster Square, Polished Stainless Steel, Right Hand Reverse
9815x ETRAWx 10BLx RHR Trim Always Operable, RAW Gramercy, Oxidized Satin Bronze, Right Hand Reverse
9815x ETH004x 04x RHR Trim Always Operable, H004 Wooster Square, Satin Brass, Right Hand Reverse
9875x ETH007x 03-24Vx RHR Fail Safe w/o Cylinder, H007 Grant, Bright Brass, -24V, Right Hand Reverse
9875x ETH001x 10B-24Vx RHR Fail Safe w/o Cylinder, H001 Wooster Square, Dark Oxidized Satin Bronze Oil Rubbed, -24V, Right Hand Reverse

View All Model Numbers and Options
