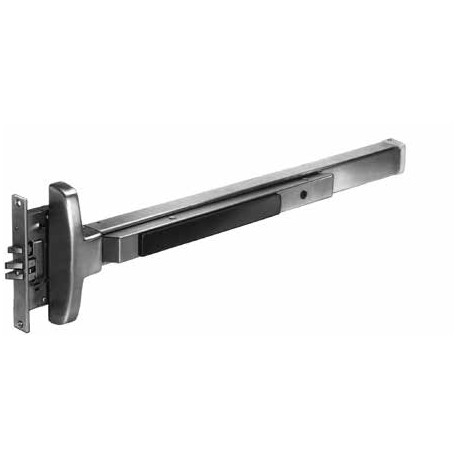

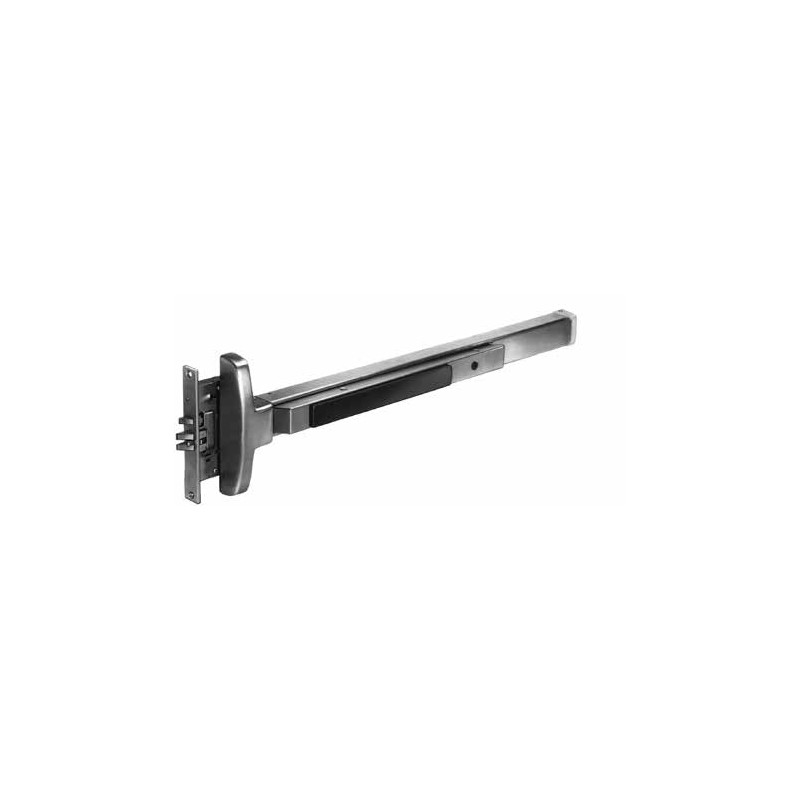

Sargent PTB 8300 Series Narrow Design Mortise Lock Exit Device

83

$3,028.44

?

Details: Sargent PTB 8300 Series Narrow Design Mortise Lock Exit Device

SARGENT manufactures a full line of exit devices that provide the best combination of strength, simplicity, aesthetics and innovation. The SARGENT 8300 Series Exit Device is a narrow design, push rail style, mortise lock exit device.

Features

  • Designed for standard width stiles with a narrow design look
  • Through-bolted trim for quiet operation and security
  • Single door applications
  • Double door application with Mortise Lock & Vertical Rod Device
  • UL Fire and Panic Listed

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Specifications

Door Types
Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option. 4-1/2" (114mm) minimum stile
Door Widths
E Rail
24" to 32" (61cm to 81cm) No cutting required for 32" door;
F Rail
33" to 36" (84cm to 91cm) No cutting required for 36" door
J Rail
37" to 42" (94cm to 107cm) No cutting required for 42" door;
G Rail
43" to 48" (110cm to 122cm) No cutting required for 48" door
Strike: C908 Standard Black Nylon Coated
ANSI Prep A115.1
Optional Strikes
815 Open Back Strike
Dogging Feature
Hex key dogging standard; Cylinder dogging available (16-)
Electric Options
AL- alarm, PL-SARGuide photoluminescent coated, TL-SARGuide illuminated touchpad, 53-LX Latchbolt monitor, 54-Outside lever monitoring, 55-Request-to-exit- signal-rail monitoring, 56-ELR remote latch retraction, 57-Delay egress & electromagnets, 58-Electric Dogging, 59-Electroguard-self contained delayed egress
Mounting Fasteners
Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
Latch Bolt
Brass Nickel Plated, 3/4" (19mm) throw, anti-friction
Guarded/Dead Latch
Brass, sliding type
Device Centerline from Finished Floor
41" (1041 mm)
Center Case Dimensions
8-5/16" (211mm) × 1-1/16" (27mm)
Projection
Pushbar Neutral — 3" (76 mm); Pushbar Depressed — 2-1/8" (54 mm)

Available Model Numbers and Combinations

Model/SKU Attributes
834Ex PTBMALx 32x LHR Key Retracts Latchbolt (Lever Rigid), 24" to 32", MAL Lever, Polished Stainless Steel, Left Hand Reverse
834Fx PTBSTSx 10BLx LHR Key Retracts Latchbolt (Lever Rigid), 33" to 36", STS Lever, Oxidized Satin Bronze, Left Hand Reverse
8310Gx PTBSTSx 10BLx RHR Dummy Trim Used as Pull, 43'' to 48", STS Lever, Oxidized Satin Bronze, Right Hand Reverse
8310Fx PTBFLWx 04x RHR Dummy Trim Used as Pull, 33" to 36", FLW Lever, Satin Brass, Right Hand Reverse
8328Ex PTBFLLx 32Dx RHR Thumb Piece Always Operable, 24" to 32", FLL Lever, Satin Nickel, Right Hand Reverse
8363Gx PTBSTSx 10BLx RHR Key Locks/Unlocks Thumb Piece, 43'' to 48", STS Lever, Oxidized Satin Bronze, Right Hand Reverse
8363Fx PTBFLWx 04x RHR Key Locks/Unlocks Thumb Piece, 33" to 36", FLW Lever, Satin Brass, Right Hand Reverse
834Jx PTBFLLx 32x LHR Key Retracts Latchbolt (Lever Rigid), 37" to 42", FLL Lever, Polished Stainless Steel, Left Hand Reverse
8310Gx PTBSTSx 10BLx LHR Dummy Trim Used as Pull, 43'' to 48", STS Lever, Oxidized Satin Bronze, Left Hand Reverse
8310Fx PTBFLWx 04x LHR Dummy Trim Used as Pull, 33" to 36", FLW Lever, Satin Brass, Left Hand Reverse
8328Ex PTBFLLx 32Dx LHR Thumb Piece Always Operable, 24" to 32", FLL Lever, Satin Nickel, Left Hand Reverse
8363Gx PTBSTSx 10BLx LHR Key Locks/Unlocks Thumb Piece, 43'' to 48", STS Lever, Oxidized Satin Bronze, Left Hand Reverse
8363Fx PTBFLWx 04x LHR Key Locks/Unlocks Thumb Piece, 33" to 36", FLW Lever, Satin Brass, Left Hand Reverse
834Jx PTBSTSx 10BLx LHR Key Retracts Latchbolt (Lever Rigid), 37" to 42", STS Lever, Oxidized Satin Bronze, Left Hand Reverse
834Jx PTBSTSx 32x LHR Key Retracts Latchbolt (Lever Rigid), 37" to 42", STS Lever, Polished Stainless Steel, Left Hand Reverse

View All Model Numbers and Options
