> >>>Sargent PTB 9900 Series Mortise Lock Exit Device
Reduced price! Sargent PTB 9900 Series Mortise Lock Exit Device

Sargent

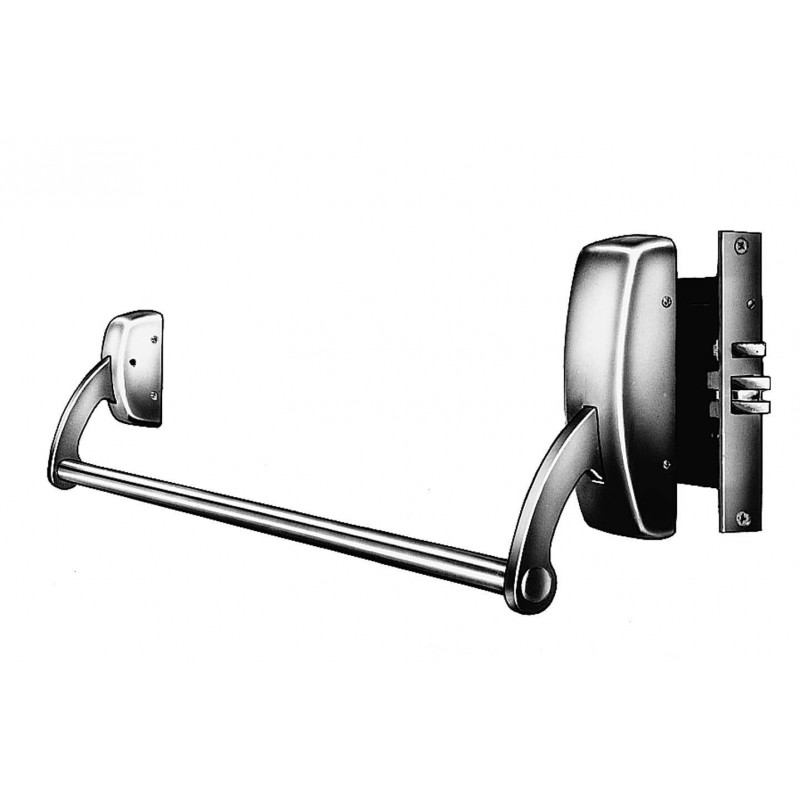

Sargent PTB 9900 Series Mortise Lock Exit Device

99

$2,917.08

?

Details: Sargent PTB 9900 Series Mortise Lock Exit Device

SARGENT has designed a full line of exit devices offering a selection of both wide and narrow stile devices. The 9900 series exit devices are ordered with trim and shipped along with the strikes and key requirements in one carton. The cross bars are cut to the correct door width.

Features

  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • All SARGENT exit devices can be masterkeyed or grand masterkeyed with any other SARGENT product
  • All crossbar assemblies or brass, bronze or stainless steel (see specific device)
  • Stainless steel springs throughout
  • Trim is through-bolted
  • All exit devices meet ANSI A156.3 Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • All fire exit hardware for hollow metal door applications listed up to 3 hours (A label) (Double Doors require astragal)
  • All fire exit hardware for wood door applications listed up to 1-1/2 hour (B label) except where noted in the catalog

Specifications

For Doors
Wood or metal. 1-3/4" (44.5mm) thick standard. Other door thickness, consult factory. 4-1/2" (114mm) minimum stile
Mounting
Supplied standard with wood and machine screws. Through bolts available on order
Chassis Cover
Brass, bronze or stainless steel
Chassis
Nonferrous alloy
Crossbar
1" brass, bronze and stainless steel tubing. Available on order with steel reinforcement
Hand
Handed, please specify when ordering
Mortise Lock
900 Series Mortise Lock, non-reversible
Dogging
Standard Allen key dogging
Strike
C908 standard

Available Model Numbers and Combinations

Model/SKU Attributes
994x PTBFLLx 32Dx LHR Key Retracts Latchbolt (Lever Rigid), FLL Lever, Satin Nickel, Left Hand Reverse
9963x PTBSTSx 03x RHR Key Locks/Unlocks Thumb Piece, STS Lever, Bright Brass, Right Hand Reverse
9963x PTBSTSx 03x LHR Key Locks/Unlocks Thumb Piece, STS Lever, Bright Brass, Left Hand Reverse
994x PTBSTSx 03x LHR Key Retracts Latchbolt (Lever Rigid), STS Lever, Bright Brass, Left Hand Reverse
9963x PTBSTSx 04x RHR Key Locks/Unlocks Thumb Piece, STS Lever, Satin Brass, Right Hand Reverse
9963x PTBSTSx 04x LHR Key Locks/Unlocks Thumb Piece, STS Lever, Satin Brass, Left Hand Reverse
9963x PTBSTSx 09x RHR Key Locks/Unlocks Thumb Piece, STS Lever, Bright Bronze, Right Hand Reverse
9963x PTBSTSx 09x LHR Key Locks/Unlocks Thumb Piece, STS Lever, Bright Bronze, Left Hand Reverse
994x PTBMALx WSPx RHR Key Retracts Latchbolt (Lever Rigid), MAL Lever, White Suede Powder Coat, Right Hand Reverse
9963x PTBSTSx 10x RHR Key Locks/Unlocks Thumb Piece, STS Lever, Satin Bronze, Right Hand Reverse
9963x PTBSTSx 10x LHR Key Locks/Unlocks Thumb Piece, STS Lever, Satin Bronze, Left Hand Reverse
9963x PTBSTSx 10Bx RHR Key Locks/Unlocks Thumb Piece, STS Lever, Dark Oxidized Satin Bronze Oil Rubbed, Right Hand Reverse
9963x PTBSTSx 10Bx LHR Key Locks/Unlocks Thumb Piece, STS Lever, Dark Oxidized Satin Bronze Oil Rubbed, Left Hand Reverse
994x PTBFLLx BSPx RHR Key Retracts Latchbolt (Lever Rigid), FLL Lever, Black Suede Powder Coat, Right Hand Reverse
994x PTBFLWx 10BLx RHR Key Retracts Latchbolt (Lever Rigid), FLW Lever, Oxidized Satin Bronze, Right Hand Reverse

View All Model Numbers and Options
