Reduced price! Sargent SSL1 Spring Latch


Sargent SSL1 Spring Latch



Details: Sargent SSL1 Spring Latch

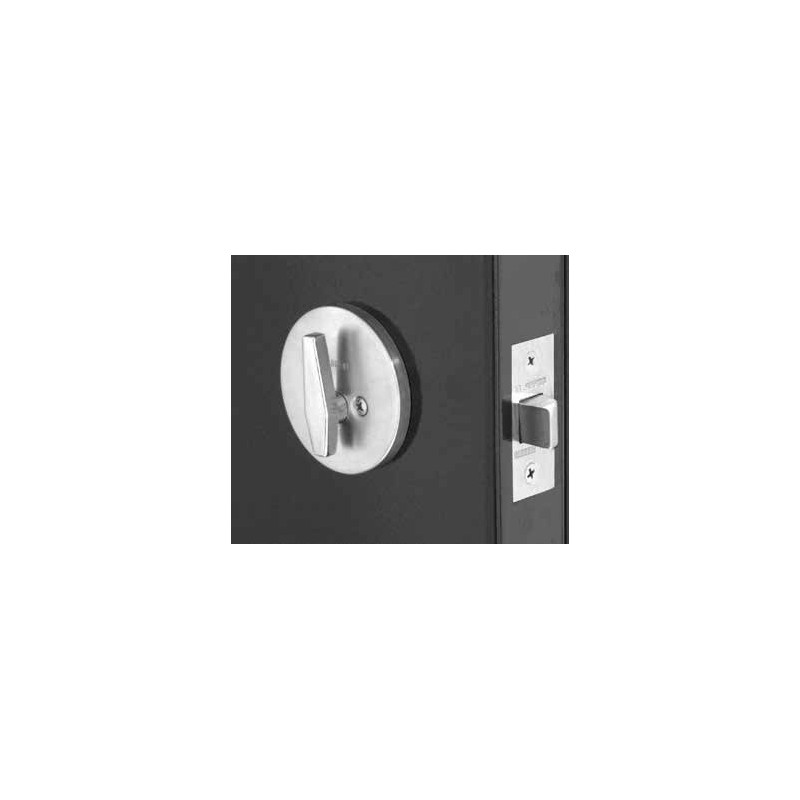

SARGENT SSL1 is a spring loaded latchbolt retracted by a thumb turn on one side with no operation on the other side. This is the perfect solution for applications such as the Security Panel on the Security Sidelite from CECO and CURRIES. Other applications include the top portion of a dutch door, communicating doors and shallow closets. The Security Panel allows a free flow of light; an attached door panel can cover the Sidelite window pane to provide privacy and to offer protection in emergency situations. Only recommended for areas with alternate exits. The SSL 1 spring-loaded latch used in conjunction with CECO and CURRIES security Sidelite doors and frames provide full solution.


  • For Doors & Backset: 2-3/4" backset
  • Strike: ANSI A115.2 curved lip strike #800
  • Bolt: 1/2" throw
  • Non-handed
  • ADA-compliant thumb turn
  • 3-hour UL fire rating
  • UL Listed for use on fire doors, UL-F804H
  • See Underwriter's Laboratories Building Materials List
  • Prep- single sided prep

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Available Model Numbers and Combinations

Model/SKU Attributes
SSL1x 03 Bright Brass
SSL1x 04 Satin Brass
SSL1x 10 Satin Bronze
SSL1x 10B Dark Oxidized Satin Bronze Oil Rubbed
SSL1x 26 Bright Chrome
SSL1x 10BE Oxidized Satin Bronze
SSL1x 26D Satin Chrome
SSL1x BSP Black Suede Powder Coat
SSL1x WSP White Suede Powder Coat
