Schlage Addison Handleset

?
?
?
?

Details: Schlage Addison Handleset

Performance Features

  • Professional Grade 1 Security Deadbolt
  • Lifetime limited mechanical and finish warranty
  • One-Tool Installation - Installs with just a Phillips screwdriver
  • Patented throughbolt slides up and down so you don't have to patch/redrill your door

Technical Specifications

  • Latch: 1" × 2¼" Triple Option - Round Corner + Square Corner + Drive In (16-210 + 12-300)
  • Applications: Residential single and multi-family entrance doors.
  • Exposed trim: Outside trim: Handlesets are solid forged brass; wrought brass trim rings with concealed security inserts. Inside trim: Levers are zinc-based plated to match finishes indicated.
  • Keying: FA -Series handlesets are 5-pin tumbler with two keys per lock. F-Series handlesets are 6-pin tumbler with two keys per lock.
  • Door thickness range: 1-5/8" to 2" thick (41mm-51mm) standard. Thick door kit available.
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Trim rings and security inserts: F-Series and FA-Series handlesets are furnished with 7/8" wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit.

Downloads

Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage F62 ADD Addison Handleset - Double Cylinder is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage lock is a great choice for commercial or residential applications.

Schlage F Series Interior Trim Knob/Lever Options

Schlage F Series Levers Finish Options

Schlage F Series Levers

Bright Brass605Satin Brass608Antique Brass609Polished Nickel618Satin Nickel619Bright Chrome625Satin Chrome626Lifetime Bright Brass505Aged Bronze716Oil Rubbed Bronze613Antique Pewter620Distressed Nickel621Matte Black622
Jazz Lever
Elan Lever
Avila Lever
Sacramento Lever
Accent Lever
Flair Lever
Latitude Lever
Manhattan Lever
Birmingham Lever
St. Annes Lever
Merano Lever
Broadway Lever
Northbrook Lever
Champagne Lever
Avanti Lever
Callington Lever

Schlage F Series Knobs Finish Options

Schlage F Series Knobs

Bright Brass605Satin Brass608Antique Brass609Polished Nickel618Satin Nickel619Bright Chrome625Satin Chrome626Lifetime Bright Brass505Aged Bronze716Oil Rubbed Bronze613Antique Pewter620Distressed Nickel621Matte Black622

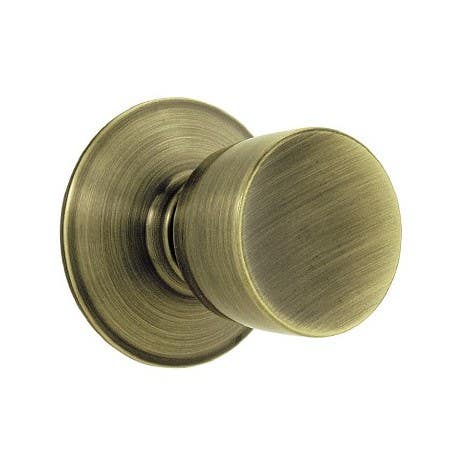

Bell Knob
Plymouth Knob
Georgian Knob
Andover Knob
Bowery Knob
Orbit Knob
Siena Knob

Available Model Numbers and Combinations

Model/SKU Attributes
F62 ADD 716 GEO 716 Double Cylinder, Aged Bronze, Georgian Knob, Aged Bronze, Standard, Keyed Different
F62 ADD 716 ACC 716 RH Double Cylinder, Aged Bronze, Accent Lever, Aged Bronze, Right Handed, Standard, Keyed Different
F62 ADD 619 GEO 619 Double Cylinder, Georgian Knob, Satin Nickel, Standard, Keyed Different
F62 ADD 625 PLY 625 Double Cylinder, Bright Chrome, Plymouth Knob, Bright Chrome, Standard, Keyed Different
F60 ADD609 BEL605 Single Cylinder, Antique Brass, Bell Knob, Bright Brass, Standard, Keyed Different
F60 ADD609 ACC625 RH ADD Single Cylinder, Antique Brass, Accent Lever, Bright Chrome, Right Handed, Addison, Keyed Different
F60 ADD609 CHP716 LH ADD Single Cylinder, Antique Brass, Champagne Lever, Aged Bronze, Left Handed, Addison, Keyed Different
F60 ADD609 MER619 LH ADD Single Cylinder, Antique Brass, Merano Lever, Satin Nickel, Left Handed, Addison, Keyed Different
F60 ADD619 BWE618 CEN Single Cylinder, Satin Nickel, Bowery Knob, Polished Nickel, Century, Keyed Different
F60 ADD619 BRW626 AND Single Cylinder, Satin Nickel, Broadway Lever, Satin Chrome, Andover, Keyed Different
F60 ADD619 ELA626 CEN Single Cylinder, Satin Nickel, Elan Lever, Satin Chrome, Century, Keyed Different
F60 ADD619 MER619 LH BRK Single Cylinder, Satin Nickel, Merano Lever, Satin Nickel, Left Handed, Brookshire, Keyed Different
F60 ADD625 AND626 GRW Single Cylinder, Bright Chrome, Andover Knob, Satin Chrome, Greenwich, Keyed Different
F60 ADD625 BWE622 AND Single Cylinder, Bright Chrome, Bowery Knob, Matte Black, Andover, Keyed Different
F60 ADD625 PLY620 AND Single Cylinder, Bright Chrome, Plymouth Knob, Antique Pewter, Andover, Keyed Different

View All Model Numbers and Options
