> >>>>Schlage B563P Classroom Deadbolt Lock
Reduced price! Schlage B563P Classroom Deadbolt Lock

Schlage Commercial

Schlage B563P Classroom Deadbolt Lock

$112.32

?

Details: Schlage B563P Classroom Deadbolt Lock

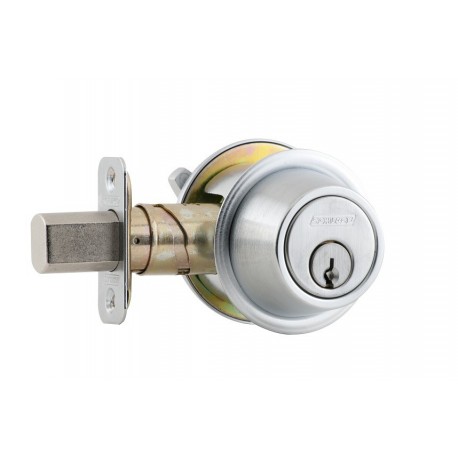

The Schlage B563P Classroom Deadbolt uses a key on the outside and a thumbturn on the inside. The thumbturn can only unlock the bolt, and it cannot lock from the inside.

B-Series Catalog

B-Series Brochure

B-Series Installation Instructions

B500 Sell Sheet

B500 Data Sheet

Specifications

Handing: Non-handed.

  • Door Thickness:
  • 13/8" to 13⁄4" thick (35mm to 44 mm) standard.
  • Backset:
  • B500-Series: Adjustable for 2⅜" (60mm) or 2¾" (70mm) standard.
  • Front: Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29mm × 57mm) square corner, beveled.
  • Dead Bolt: 1" (25 mm) throw with saw-resistant hardened steel insert.
  • Latch Bolt: Brass, 9⁄16" (14mm) throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass, bronze or stainless steel.
  • Thumbturn: Pressure cast zinc, plated to match finish symbols.
  • Strike: 11⁄8" × 23⁄4", metal dust box reinforcer and three 3" screws. Optional strikes, lip lengths and ANSI strike box available.
  • Certifications
  • ANSI:
    The B500 series meets or exceeds A156.5 Grade 2 strength and operational requirements.
  • Cylinder & Keys: 6-pin C keyway standard with two nickel silver keys per lock.
  • Warranty:
Three-year limited.

Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage B563P Classroom Deadbolt Lock is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.

The perfect auxiliary deadbolt. The Schlage B563P Classroom Deadbolt Lock adds extra protection to entrance doors, storage spaces, and common use areas.

Available Model Numbers and Combinations

Model/SKU Attributes
B563P 643e MKP6 Aged Bronze, Master Keyed, Conventional 6-pin cylinder
B563P 643e MKP Aged Bronze, Master Keyed, Conventional 6-pin cylinder, keyed 5
B563P 643e MKL Aged Bronze, Master Keyed, Less conventional cylinder
B563P 643e MKR Aged Bronze, Master Keyed, FSIC (Full size interchangeable core)
B563P 643e MKT Aged Bronze, Master Keyed, FSIC – Construction Core
B563P 643e MKJ Aged Bronze, Master Keyed, Less FSIC
B563P 626 KDP6 Satin Chrome, Keyed Different, Conventional 6-pin cylinder
B563P 626 KDP Satin Chrome, Keyed Different, Conventional 6-pin cylinder, keyed 5
B563P 626 KDL Satin Chrome, Keyed Different, Less conventional cylinder
B563P 626 KDR Satin Chrome, Keyed Different, FSIC (Full size interchangeable core)
B563P 626 KDT Satin Chrome, Keyed Different, FSIC – Construction Core
B563P 626 KDJ Satin Chrome, Keyed Different, Less FSIC
B563P 626 KAP6 Satin Chrome, Keyed Alike, Conventional 6-pin cylinder
B563P 626 KAP Satin Chrome, Keyed Alike, Conventional 6-pin cylinder, keyed 5
B563P 626 KAL Satin Chrome, Keyed Alike, Less conventional cylinder

View All Model Numbers and Options
