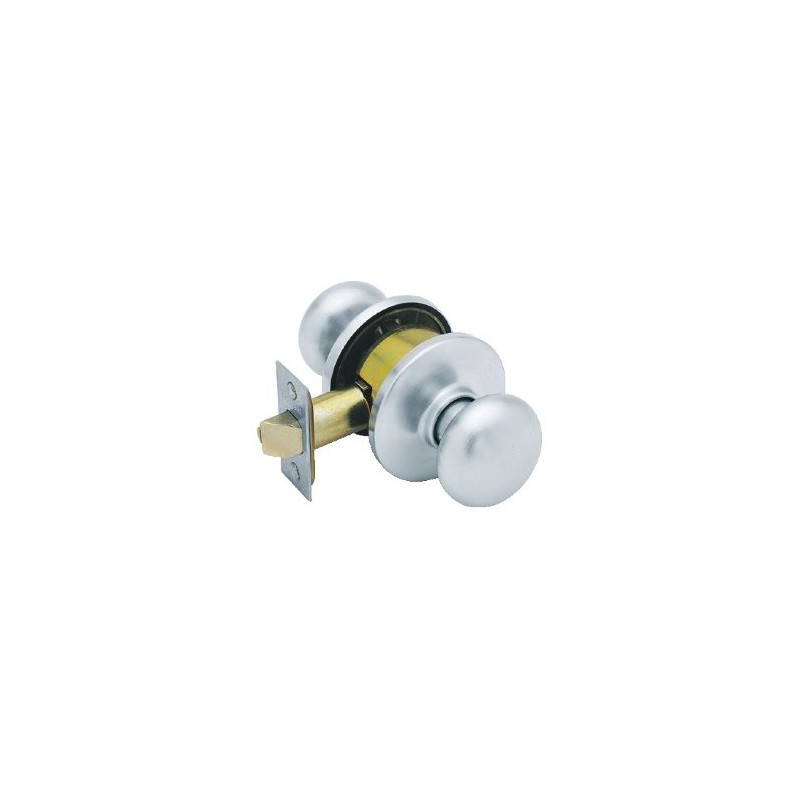

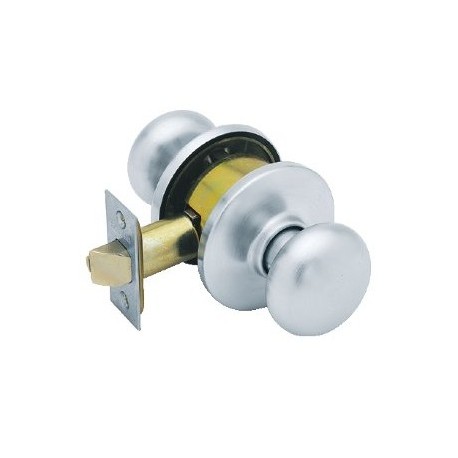

Schlage D10S Passage Knob Grade 1

$807.58

?

Details: Schlage D10S Passage Knob Grade 1

The Schlage D10S is an ANSI-certified Grade 1 passage door knob. Passage knobs latch the door shut but are always unlocked.

Specifications

Door Thickness
1⅜" to 2" (35mm-51mm) standard.
Backset
2¾" (70 mm) standard. 2⅜", 3¾" and 5" (60 mm, 95 mm, 127 mm) available by request.
Faceplate
Brass, bronze or stainless steel. 11⁄8" × 21⁄4" (29 mm × 57mm) square corner, beveled.
Lock Chassis
Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt
Brass,½" (12mm) throw, deadlocking on keyed and exterior functions.
Exposed Trim
Wrought brass, bronze or stainless steel.
Strike
ASA strike 1¼" × 4⅞", square corner
Warranty
Three-year limited warranty.

Certifications

  • ANSI: Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.
Manufacturer Part Numbers:

D10SORB626 D10SORB605 D10SORB609 D10SORB612 D10SORB625 D10SORB643E D10SORB613

D10SPLY626 D10SPLY605 D10SPLY609 D10SPLY612 D10SPLY625 D10SPLY643E D10SPLY613 D10SPLY630

D10STUL626 D10STUL605 D10STUL609 D10STUL612 D10STUL625 D10STUL643E D10STUL613

Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage D10S Passage Knob Grade 1 is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.

The Schlage D10S Passage Knob Grade 1 is made tough and built to last. These knobs are some of the toughest that Schalge produce.

Available Model Numbers and Combinations

Model/SKU Attributes
D10S ORB 626 Satin Chrome, Orbit Knob
D10S ORB 612 Satin Bronze, Orbit Knob
D10S ORB 605 Bright Brass, Orbit Knob
D10S ORB 609 Orbit Knob, Antique Brass
D10S ORB 613 Orbit Knob, Oxidized Satin Bronze
D10S ORB 625 Bright Chrome, Orbit Knob
D10S ORB 630 Orbit Knob, Satin Stainless Steel
D10S ORB 643e Aged Bronze, Orbit Knob
D10S PLY 605 Bright Brass, Plymouth Knob
D10S PLY 609 Plymouth Knob, Antique Brass
D10S PLY 612 Satin Bronze, Plymouth Knob
D10S PLY 613 Plymouth Knob, Oxidized Satin Bronze
D10S PLY 625 Bright Chrome, Plymouth Knob
D10S PLY 626 Satin Chrome, Plymouth Knob
D10S PLY 630 Plymouth Knob, Satin Stainless Steel
