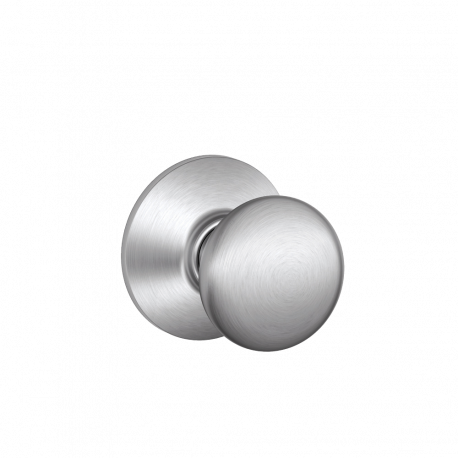

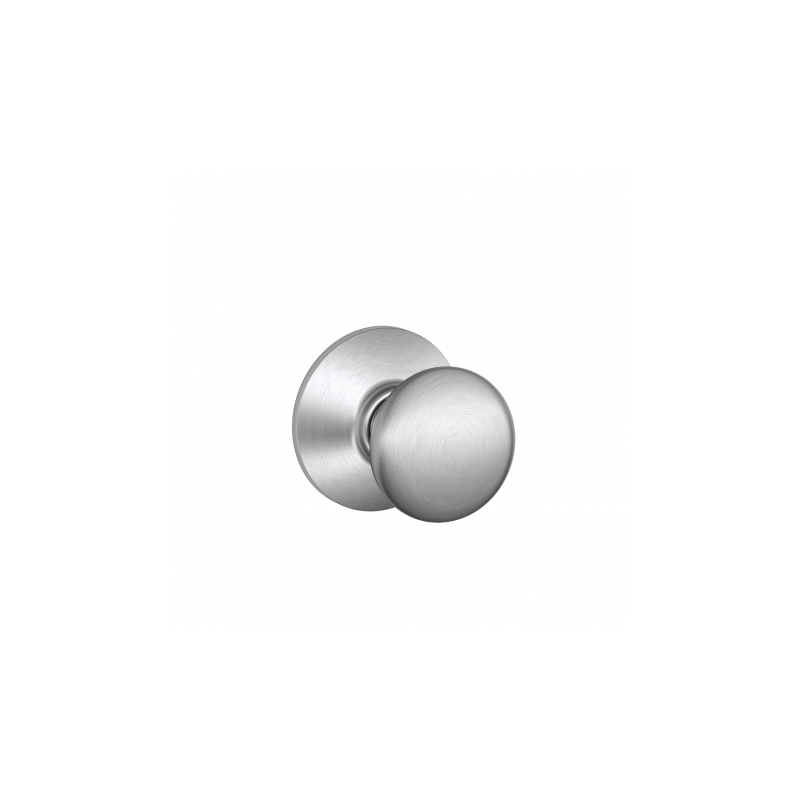

Details: Schlage PLY Plymouth A-Series Grade 2 Cylindrical Knobset

Medium traffic commercial and heavy duty residential locks.
From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building's design.
We don't compromise on security.
The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
• Cycle tests
• Resistance tests
• Door impact tests
• Warped door tests
• Bolt strength tests Features and Benefits
• Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
• Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.
• Patented door range adjuster allows quick and easy adjustment for doors ranging from 1⅜" to 1⅞" (35 mm to 48 mm) thick Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door. ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public. Specifications
Handing: Keyed functions are reversible. Non-keyed functions are not handed.
Door Thickness:
1⅜" to 1⅞" (35 mm to 48 mm) standard.
2" (51 mm) to 2½" (64 mm) optional extended inside.
Backset:
2⅜"(60 mm) standard. 2¾" (70 mm), 3¾"(95 mm) and
5" (127 mm) optional.
Front: Steel. 1⅛" × 2¼" square corner, beveled, for 2¾" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face. For availability with specific backsets, see page 16.
Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
Latch Bolt: Brass, chrome plated,½" throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
Strike: T-strike 1⅛" × 2¾" (29 mm × 70 mm) × 1⅛" (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys:
Commercial: 6-pin patented Everest C123 keyway standard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.
Residential: Full mechanical lifetime.
Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal: Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with less than ½" (64mm) returns comply; Schlage levers return to within ½" of door face.
UL / cUL: All locks listed for A label single doors, 4' × 8'. Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
