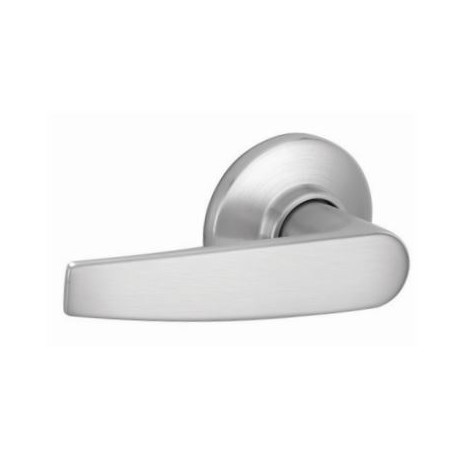

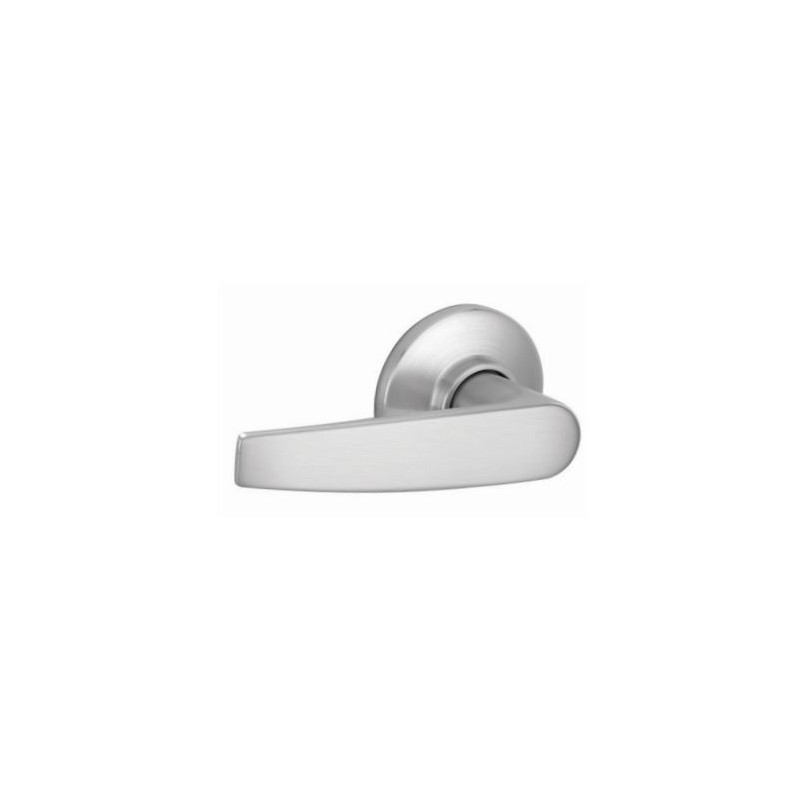

Schlage S-JUP Jupiter S-Series Grade 2 Tubular Levered Lock
Adjustable backset.
Door Handing
Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Consult your catalog for door handing information.
ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Specifications
Handing: Not handed, except Flair design.
Door Thickness: 1⅜" to 2" (35 mm-51 mm) except S40D: 1⅜" to 1⅞" (35 mm-48 mm)
Backset: Universal backset latches standard, fit either 2⅜" (60 mm) or 2¾" (70 mm). 5" (127 mm) optional.
Fronts: Steel. 1" × 2¼" (25 mm × 57 mm) square corner, beveled, for 2¾" backset standard.
Lock Chassis: Tubular construction. Zinc with steel cover.
Latch Bolt: Brass, chrome plated, 1 / 2" (13 mm) throw, deadlocking.
Exposed Trim: Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze.
Strike: T-strike 1⅛" × 2¾" (29 mm × 70 mm) × 1⅛" (29 mm) lip
to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Cylinder & Keys: 6-pin C keyway, keyed 5-pin.
Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
Commercial: three-year limited.
Residential: Full mechanical lifetime.
Certifications
ANSI: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal:
Meets FF-H-106C.
California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)
Neptune and Saturn designs comply; levers return to within 1⁄2? of door face.
UL / cUL:
All locks listed for A label single doors, 4' × 8'.
Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA Compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
Schlage, a division of Allegion security products, has been the industry standard of high quality door hardware for almost a century. Their time-tested, perfected machinery and superior quality metals make this brand a great choice for security and style. The Schlage S-Series Grade 2 Standard Duty Jupiter Lever is precision-engineered, featuring 100% solid forged brass and rugged all-metal chassis for security. A Schlage deadbolt makes a great choice for commercial or residential applications.
The Schlage S-Series Grade 2 Standard Duty Jupiter Lever is perfect for light to medium use on interior commercial doors, office tenant spaces, laboratories, heavy duty residential doors, and multi-family housing.
Model/SKU | Attributes |
---|---|
S51 P6 JUP 619 16-204 KD | Satin Nickel, Entrance, Conventional 6-pin cylinder, Keyed Different |
S51 P JUP 606 10-025 KA | Satin Brass, Entrance, Conventional 6-pin cylinder, keyed 5, Keyed Alike |
S51 P JUP 609 16-204 10-025 KD | Entrance, Antique Brass, Conventional 6-pin cylinder, keyed 5, Keyed Different |
S51 R JUP 606 KA | Satin Brass, Entrance, FSIC, Keyed Alike |
S51 R JUP 625 16-204 10-004 KD | Bright Chrome, Entrance, FSIC, Keyed Different |
S70 R JUP 626 16-204 MK | Satin Chrome, Classroom, FSIC, Master Keyed |
S70 R JUP 619 10-025 KD | Classroom, Satin Nickel, FSIC, Keyed Different |
S80 L JUP 605 16-204 10-004 MK | Bright Brass, Storeroom, Master Keyed |
S80 L JUP 606 16-204 KA | Satin Brass, Storeroom, Keyed Alike |
S51 L JUP 609 KD | Entrance, Antique Brass, Keyed Different |
S51 J JUP 626 10-004 KA | Satin Chrome, Entrance, Keyed Alike |
S70 P JUP 605 16-204 10-025 MK | Bright Brass, Classroom, Conventional 6-pin cylinder, keyed 5, Master Keyed |
S70 L JUP 626 16-204 10-004 KD | Satin Chrome, Classroom, Keyed Different |
S70 L JUP 605 10-025 KD | Bright Brass, Classroom, Keyed Different |
S70 J JUP 619 10-004 KD | Classroom, Satin Nickel, Keyed Different |
