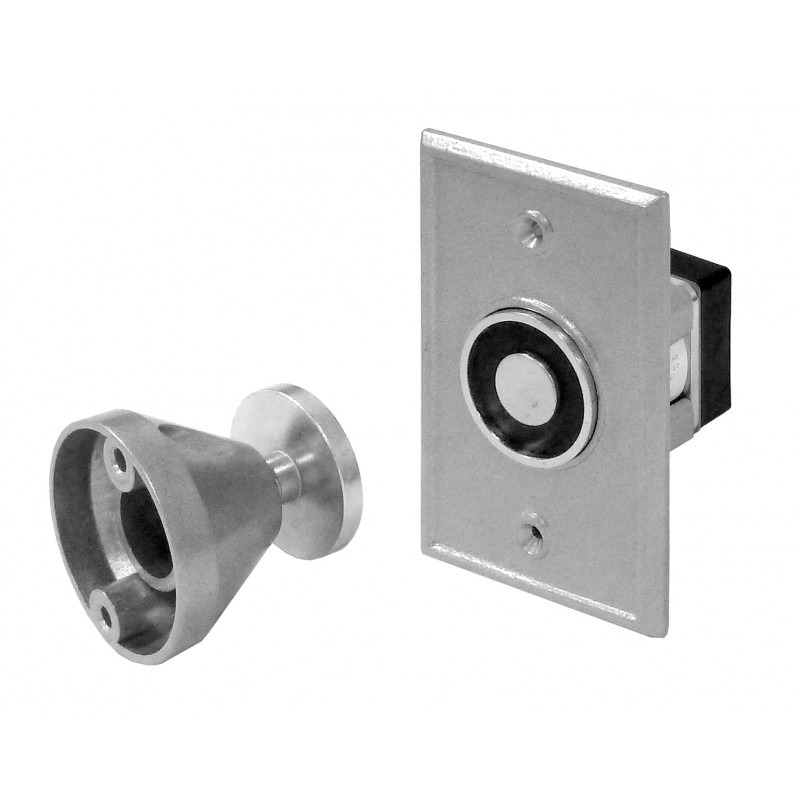

Details: SDC EH Series Electromagnetic Door Holder & Releasing Device

SDC EH Series magnetic door holders, are designed to hold doors open and release the door by remote switch or fire life safety command center activation. Primary application includes holding and releasing of fire rated doors that are required to provide a barrier for fire and smoke in an emergency or the convenience of door closure by remote control.

Specifications

EH10

Flush Mount Magnetic Door Holder

EH20

Semi-Flush Mount Magnetic Door Holder

EH30

Surface Mount Magnetic Door Holder

EH40

Floor Single Mount Magnetic Door Holder

EH42

Floor Double Mount Magnetic Door Holder

Features

• 2 Choice of 25, 30, 35 or 40lbs holding force - Determined by units specified voltage
• Very low power consumption - Reduced power supply requirements and energy cost 15mA, 20mA or 40mA
• High Holding Force Standard* - Reduces stock or need to special order high holding force. Determined by field selected voltage input. *Not available with 24/220v units

IP Pro Presentation

Documentation

• Datasheet
• Installation
• 3 Part Spec
• Pricesheet

Security Door Controls Warranty
