Securitron DSB Dual Sense Bar


Details: Securitron DSB Dual Sense Bar

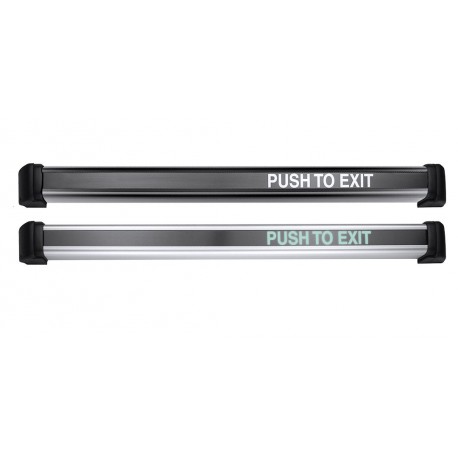

Dual Sense Bar

Dependable Touch And Mechanical Release For Superior Safety And Redundancy

The dependable DSB Dual Sense Bar is the most reliable exit device available for magnetically locked,non-fire-rated doors. Its unique design delivers superior fault tolerance with two independent, redundant switch circuits for releasing the lock.The DSB can be installed on all types of interiormetal,aluminum or wood doors.Meets"no special tools or knowledge"criteria required bycode.

Product Features:

  • Redundant switches
  • Release triggered by either ⅛" mechanical movement or reliable touch sense technology
  • Optional MicroShield Anti-microbial coating ideal for infection control in health care environments
  • Resistant to interference from radio frequency or electromagnetic frequency and external impact/bounce attempts
  • All metal construction
  • Can be field cut to fit non- standard door widths
  • 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
  • Automatic dual voltage 12VDC or 24VDC
  • Resists electrostatic discharge up to27,000 volts
  • MagnaCare Lifetime Replacement No Fault Warranty

Product Options:

  • 36" Length
  • 42" Length
  • 48" Length
  • EL- PrefixanymodelforElectroLynx
  • I Add to any model for Illuminated viafiberoptics
  • A Add to any model for MicroShield Anti-microbial coating
  • Through-boltkitfordoors1¾"to2¼"thick


  • CAN/ULC-S533 Listed
  • ANSI/UL 294 Listed
  • CSA-C22.2 No.205 Listed
  • NFPA 101
  • Patent pending


Dual Sense Bar Only - 24mA at 12VDC or 24VDC

Dual Sense Bar with Illumination -44mA at 12VDC or 24VDC

Operating Temperature:

+32to+120F[0to+49C] Recommended for indoor use only

Shipping Weight:

6lbs[2.72kg]to8lbs[3.63kg]depending on length


BK - Black anodized

CL - Clear anodized

NCWO = No Charge With Order
