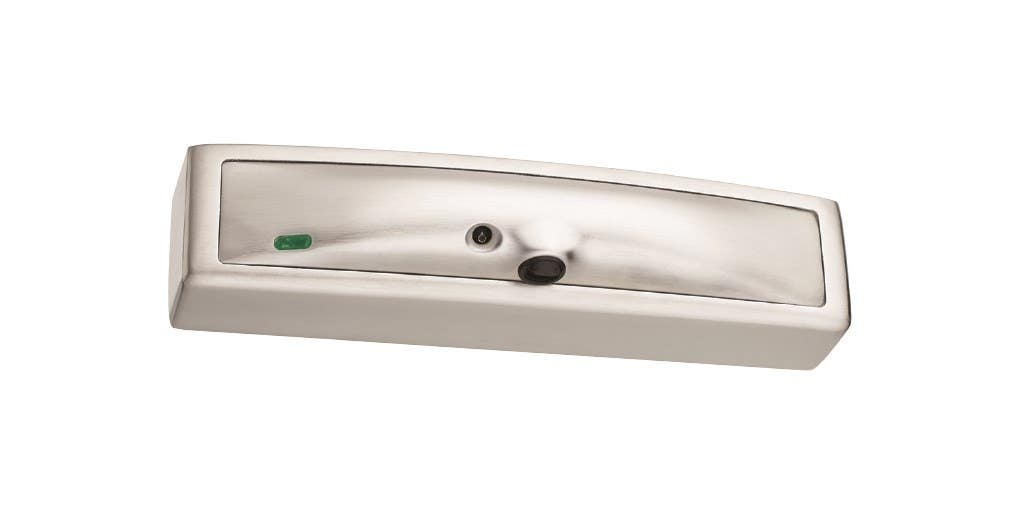

Securitron M680 Standard Magnalock (w/BondSTAT, DPS) Secure Magnalock

$683.92

Details: Securitron M680 Standard Magnalock (w/BondSTAT, DPS) Secure Magnalock

The Smart, Stylish and Secure Magnalock®

The M680 from Securitron® delivers unsurpassed intelligence, style and convenience.

Intelligence
A built-in, smart voltage sensing microprocessor controls Securitron's patented BondSTAT and door position status monitoring
Style
The aesthetics of the M680 are refined enough for the most discriminating designer openings
Convenience
An integrated camera option provides a unique perspective for discreet surveillance and clear facial views. Use the integrated motion sensor exit device alone, or with the camera for advanced access control
Easy Installation
The fastest, easiest, most secure installation of any bracket-mount maglock

M680BDX

The M680BDX with integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.

M680BDCX

The M680BDCX combines strength and style with smarts at a whole new level. Optimal coverage comes from the integrated passive infrared (PIR) request to exit (REX) with analog CCTV camera that allows for video surveillance. Everyone will be happy except those with ill intent: Facility Manager: Secure and smart access control; Installer: Easy installation; Architect: Sleek and stylish.

Features

  • Bracket mounting provides the easiest install for out-swing doors
  • Innovative install templating for an efforlessly accurate alighnment between magnet and armature plate
  • Sleek, low profile and refined lines for improved aesthetics
  • LED visual locked status with configurable red/green color output
  • BondSTAT lock bond sensor - Patented
  • Integrated door position switch
  • Autosensing dual voltage with microprocessor technology
  • Adjustable automatic relock timer (0 to 30 seconds)
  • Wire chamber anti-tamper switch
  • Efficient, low power usage
  • Size optimized for use with door closers
  • MagnaCare® lifetime replacement, no fault warranty

Optional Features

Standard Features

  • Adjustable passive infrared(PIR) Request to Exit
  • Automatically cuts power to the M680 for egress
  • Request to exit (REX) output
  • Easily adjustable beam pattern
  • Adjustable relock timer

Black & White Features

  • Analog black/white CCTV camera
  • 112 degree view angle
  • 420 TV line resolution
  • 48db S/N ratio
  • 0.1 LUX minimum illumination day/ night operation
  • Supports BNC connection

Color Features

  • Analog color CCTV camera
  • 112 degree view angle
  • 520 TV line resolution
  • 48db S/N ratio
  • 1.5 LUX minimum illumination day/night operation
  • Supports BNC connection

Features Continued

  • UL1034Burglary-Resistant Listed
  • UL10CListed
  • CAN4-S104,CAN/ULC Listed
  • UL294 Recognized Component
  • ANSI/BHMA A156.23, Grade1; E18501-1000
  • CSFM-California State Fire Marshal Listed

Specifications

Patent
Patents Pending (Patents: D682,655; D690,576; 8,094,017)
Holding Force
1100lbs [499 kg]
Dimensions
M680BD Magnalock: 11-1/2"L × 2-9/16"D × 2-1/2"H Strike: 10-7/8"L × 9/16"D × 2"H
Electrical
550mA (± 10%) at 12VDC 300mA (± 10%) at 24VDC
Operating Temperature
+32 to +110F [0 to +43C] Indoor use only
Shipping Weight
13lbs [5.44kg]

Finish Options

  • US28/628- Satin Aluminum Clear (Standard)
  • US20A/313- Satin Brown
  • 335- Satin Black
  • US03/605- Polished Brass
  • US04/606- Satin Brass
  • US10/612- Satin Bronze

Downloads

Available Model Numbers and Combinations

Model/SKU Attributes
M680E-628 Satin Aluminum Clear, Not Included, Not Included
M680EBD-600 Paintable Primer Gray Finish, Not Included, Included
M680EBD-605 Bright Brass, Not Included, Included
M680EBD-606 Satin Brass, Not Included, Included
M680EBD-612 Satin Bronze, Not Included, Included
M680EBD-613E Dark Oxidized Satin Bronze, Not Included, Included
M680EBD-628 Satin Aluminum Clear, Not Included, Included
M680EBD-629 Bright Stainless Steel, Not Included, Included
M680EBD-630 Satin Stainless Steel, Not Included, Included
M680EBD-BSP Black Suede Powder, Not Included, Included
M680EBDX-600 Paintable Primer Gray Finish, Not Included, Included
M680EBDX-605 Bright Brass, Not Included, Included
M680EBDX-606 Satin Brass, Not Included, Included
M680EBDX-612 Satin Bronze, Not Included, Included
M680EBDX-613E Dark Oxidized Satin Bronze, Not Included, Included

View All Model Numbers and Options
