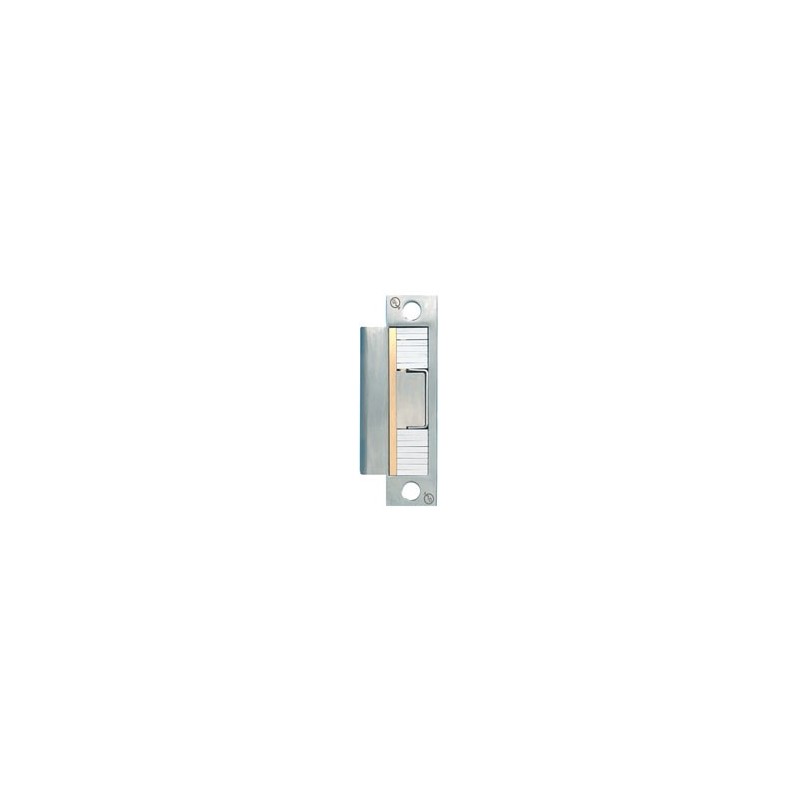

Details: Securitron MUNL Mortise UnLatch Strike

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output.

Product Features:

No cutting or altering of the jamb required
Releases under preload
Fits standard ANSI 4-7/8" strike cutout
Motorized, no solenoids
Fully concealed installation
Maintains dead-latch function at all times
Continuous duty
Latch status sensor is standard
One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations)
MagnaCare Lifetime Replacement No Fault Warrant

Specification:

UL10C Listed
CAN4-S104, CAN/ULC Listed
ANSI/BHMA A156.31, Grade 1; E09321, E09322, E09323
NFPA-252 fire door compliant
ASTM-E152 fire door compliant
UL listed to ANSI/ SDI-BHMA A250.13 (60 PSI) Windstorm

Current Draw:

12VDC-40m Acontinuous,minimum 700mA when operating

24VDC-40m Acontinuous,minimum 500mA when operating

Higher capacity supply(1-4Amps)is recommended for startup inrush to achieve best operation under pre-load

Operating Temperature:

-20to+125F[-29to+52C]

Shipping Weight:

2lbs[0.91kg]

Securitron Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
MUNL-12	Mortise Unlatch - 12VDC
MUNL-24	Mortise Unlatch - 24VDC
