StepNpull Foot Operated Door Opener for Touchless Entry
SNPE-
Details: StepNpull Foot Operated Door Opener for Touchless Entry

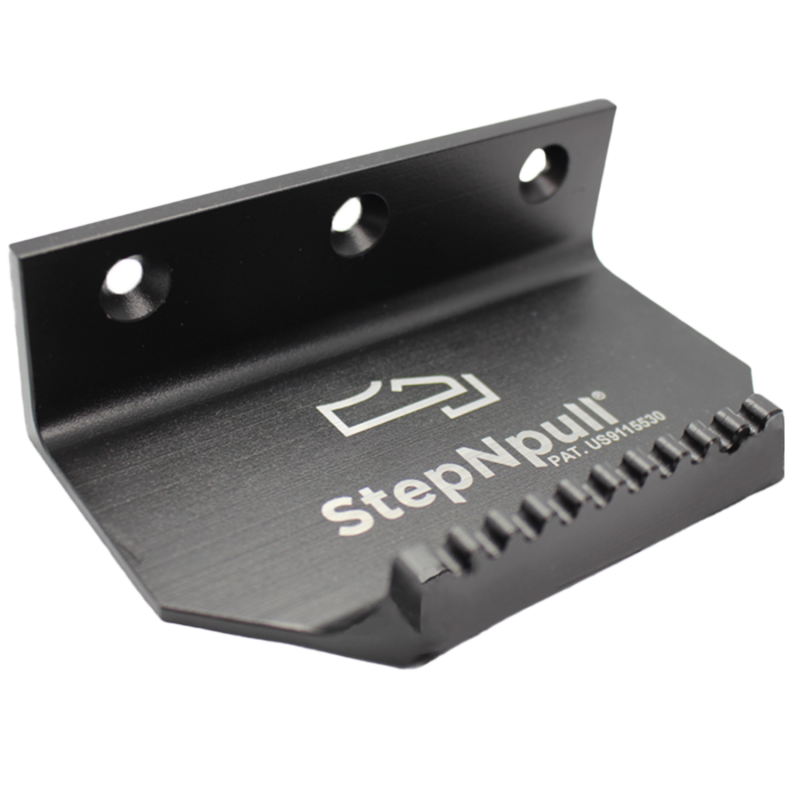

The StepNpull® foot operated door pull mounts on any commercial latch-less wood or metal door, and gives the user the option of pulling the door open with their foot instead of the door handle. StepNpull® is the perfect solution to make a touch-less public restroom totally touch-less.
Installation
StepNpull® should be mounted approximately ⅛" from the bottom and and outer edge of the door.
Mark the holes with a pencil while holding the StepNpull® against the door at a level mounting position.
Use a 5/16" bit to drill the center hole.
Use the sexted bolt for the middle hole.
Level the StepNpull
Use the 1 ¼" screws for the outside holes
Tighten sexted bolt.
Features
Low one-time cost designed to last the life of your door
Made from durable T6 extruded aluminum
Easy installation
Easy to clean
Customers and employees will appreciate the StepNpull® option
Manufactured in the USA with 70% recycled aluminum
Specifications
Width
5"
Height
1.5"
Depth
3"
Weight
8 ounces
Material
T6 extruded aluminum
Other
High-grip ridges on the the StepNpull® to increase grip and prevent slip of the shoe. Informational door sticker is included
Mounting
StepNpull® mounts to the bottom of a commercial latch-less metal or wood door via 3 mounting screws. The mounting hardware includes 3 #12 combo (metal or wood) screws and 1 sexed (barrel) bolt which goes completely thru the door. StepNpull® can be mounted on a wooden door using just the screws, but we highly recommend using the sexed bolt in the center hole instead of the screw. On metal doors the sexed bolt must be used in the center hole
StepNpull - Hands Free & Foot Operated Door Opener
