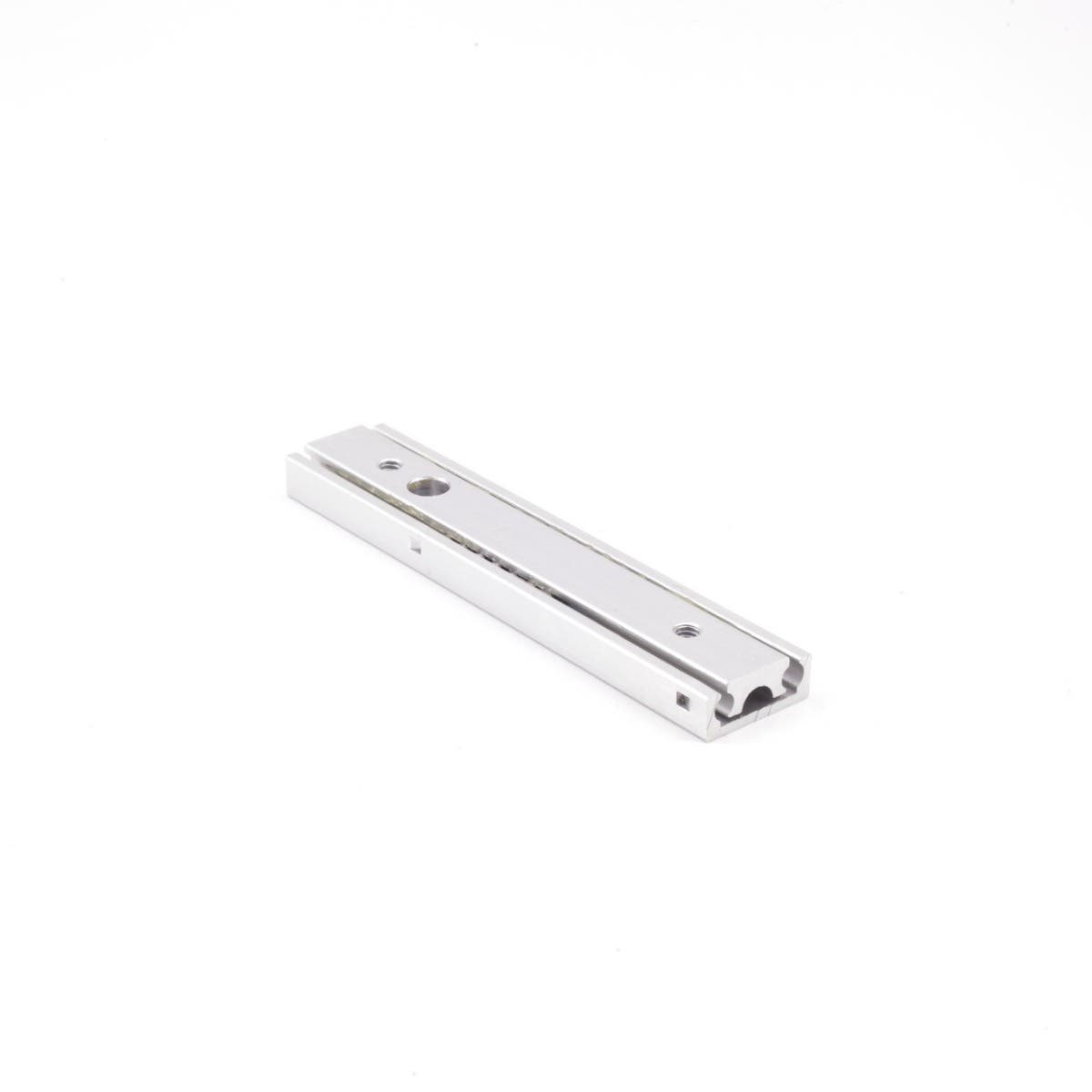

Sugatsune AR2 Aluminum Low Profile Slide, Finish-Anodized

$14.30

Details: Sugatsune AR2 Aluminum Low Profile Slide, Finish-Anodized

The Sugatsune AR2¾ Extension Slide is perfect for high end residential, commercial, and industrial applications. Full extension and ¾ extension slides are also available for purchase.

Aluminum Drawer Slide, Load Rating: 33 lbs, 3/4 extension alumnium slide with steel ball bearings, Positive stop, Non-handed, Recommended Hardware: M3.5 Flat Head Screws.

Note: Screws not included

Product Downloads

About Sugatsune

Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.

No. Part Material Finish
1 Outer Rail Aluminum Anodized
2 Inner Rail
3 Balls Steel -

Item No. Slide Length Travel Length A B C D Load Rating (kg/pair) Weight (g) Box (pcs)
AR2-100 100 (3-15/16") 60 (2-23/64") - 70 - 70 15.3 (34 lbs) 31 50
AR2-200 200 (7-7/8") 120 (4-23/32") 65 170 85 170 12.2 (27 lbs) 63
AR2-300 300 (11-13/16") 180 (7-5/64") 135 270 135 270 10.2 (22 lbs) 76
AR2-400 400 (15-3/4") 240 (9-29/64") 185 370 185 370 9.2 (20 lbs) 129
AR2-500 500 (19-11/16") 300 (11-13/16") 235 470 235 470 8.2 (18 lbs) 161

Available Model Numbers and Combinations

Model/SKU Attributes
AR2-100
AR2-200
AR2-300
AR2-400
AR2-500
