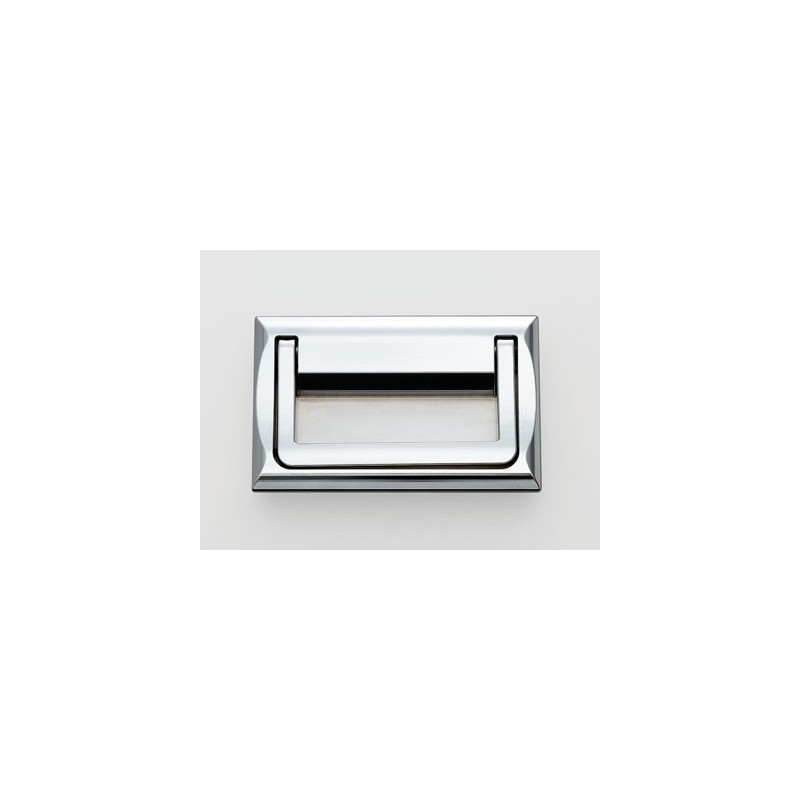

Details: Sugatsune HCT-150 Cabinet Trunk Handle, Finish-Mirror

Features

• 316 Stainless steel handle is ideal for harsh and highly corrosive environments
• The handle is recessed into the mounting plate keeping it flush with the mounting surface
• Spring loaded- Folds and returns to flat position to stay out of the way when not in use
• 90 degree stop feature
• Back mounted. Includes bracket for sheet metal applications

Specifications

Material

316 Stainless Steel

Weight of Item (g)

990

Length or Depth of Item when closed (in)

0.9375

Height of Item (in)

3.8125

Width of Item (in)

5.9375

Load Capacity (lbs)

220

CC Length (in)

5.3125

Mounting Type

Back Mounted

Shape

Rectangle

Bar Shape

Rectangle

Are Fasteners Included

Y

Are Fasteners Required

Y

Fasteners Size

M5 X 12

Fasteners Type

Machine screw

Is REACH Compliant

REACH 211 5/11/21

Is RoHS Compliant

RoHS 3

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use
