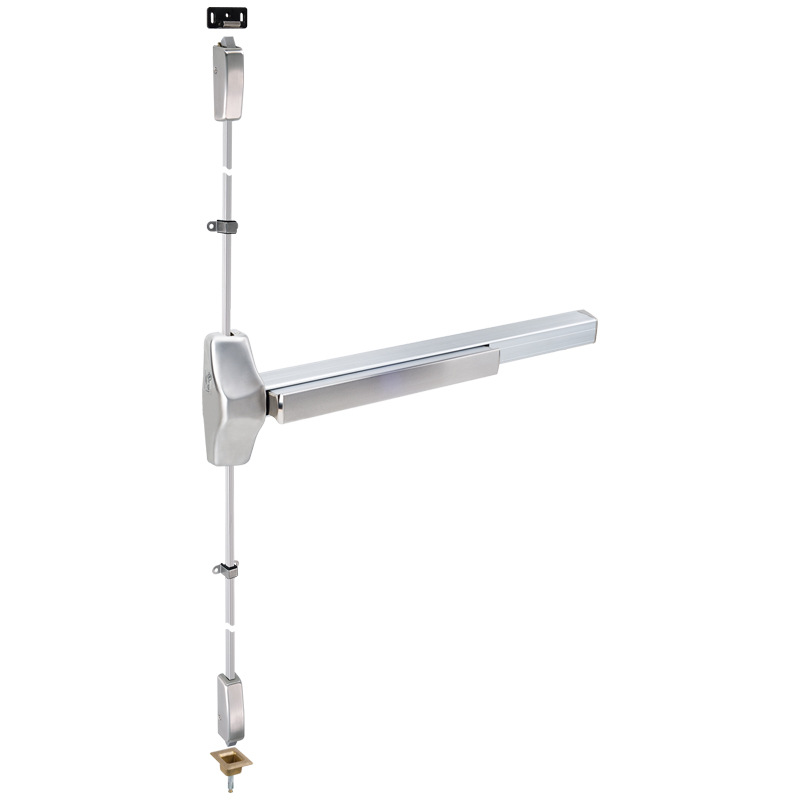

Details: TownSteel ED1200 Heavy Duty Grade 1 Surface Vertical Rod Exit Device, Satin Stainless

1000 Series Exit Devices are designed for new or retrofit installation into other manufacturers' devices. The Push Bar assembly's smooth and reduced projection minimizes catch hazard. The device function is field selectable by adaptation with the selected type of trim. A full complement of lever trim is available in various architectural finishes. 1000 Series are made to comply with the highest safety and security standards in the industry. Devices and trims are UL/cUL listed for Panic Hardware or Fire Hardware. They are certified to ANSI/UL305 and ANSI/BHMA A156.3 Grade 1. 1000 Series provides superior durability for high-impact applications such as offices, schools, banks, assisted living facilities, and other institutions or commercial buildings.

ELR provides an ability to remotely retract thelatchbolt. Continuous duty solenoid can retract Latch bolts under condition of unlatching or continually dogging. The ELR option can be applied with card readers, toggles or key switches, push buttons and fire alarm systems. PS100 power supply is required for the use of ELR option. UL/cUL Listed for Panic and Fire for Class 2 Circuitry. ELR is available with manual Flat/Hex Key for Panic Exit Devices.

Micro-switch Detecting Push Bar

The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the Push Bar. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply.
