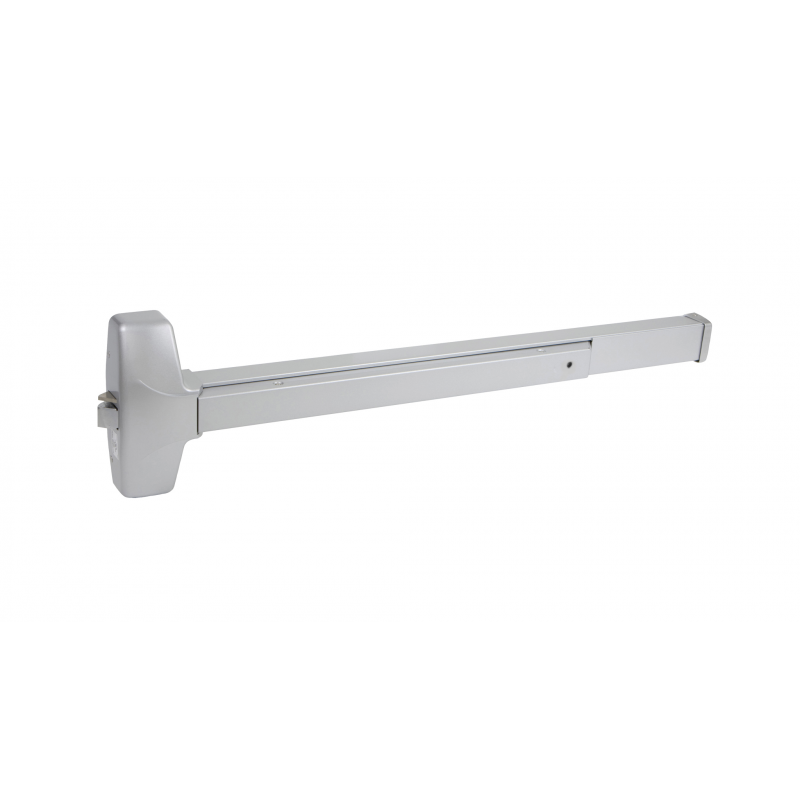

TownSteel ED8900 Grade 1 Rim Exit Device

$348.00

Details: TownSteel ED8900 Grade 1 Rim Exit Device

ANSI Grade 1 Certified Rim Exit Device

Features

  • UL Listed for Fire Exit hardware, 3 hours.
  • Trims feature a through-bolt design that allows for a secure and durable installation.
  • High shock-resistant latching mechanical design for protection.
  • "A" Label (3 hr) rating on pairs of doors up to 8' × 8' for same or double egress.
  • All internal components are made of electro-plated steel and corrosion-resistant alloy.
  • Buy American Act Compliant

Specifications

Compliance
UL 10C Compliant
BHMA/ANSI Grade
Grade 1 Certified, ANSI/BHMA A156.3
Handings
Non-Handed or Field Reversible
Door Thickness
1-3/4" - 2-1/4"
Strike
600 rigid strike standard
Push Bar Projection
Neutral- 2-15/32", Depressed- 1-27/32"
Latch Bolt
3/4" throw, stainless steel, deadlocking
Dogging
1/2 turn hex key dogging standard
Device Center Line From Finished Floor
41"
Dead Latch Bolt
Stainless Steel
Minimum Stile Width
4-3/4"
Door Size
36" standard, 48" available
Shim Kit
750 shim kit standard

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
