Details: Trine LC-100 Line Conditioner - 11-29 AC / DC for 12DC Electric Strikes

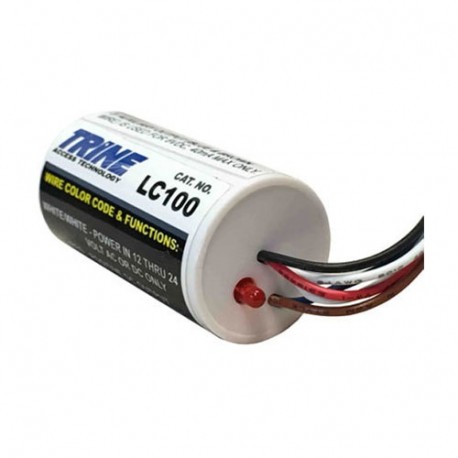

LC100 - (Round unit; Updated in 2010):

This Model utilizes an external line conditioner (LC100) module to regulate input voltages, 11-29 AC or DC, and conditions the output for the pull-in activation period. Then reduces holding voltage output for continuous operation and reduced heat. The LC100 provides current and voltage surge protection and kickback protection.

LC100 can be placed up to 15 feet away from the electric strike body. When used with the EN Series, 12DC must be selected and the LC100 must be located within 10' of the electric strike.

NOTE: the 'square' LC100's are older units, are all prior to the 2010 upgrade. They do not contain the new features

Voltage	Current/Amps	Ohms (Ω)	Duty	Sound	Wire Color
12DC	0.743/0.298	13.0	Intm./Cont.	Silent	Red
12AC	0.715/0.277	13.0	Intm./Cont.	Silent	Red
24DC	0.397/0.170	13.0	Intm./Cont.	Silent	Red
24AC	0.378/0.173	13.0	Intm./Cont.	Silent	Red
