Reduced price! Von Duprin 33A/3527A Surface Vertical Rod Device

Von Duprin

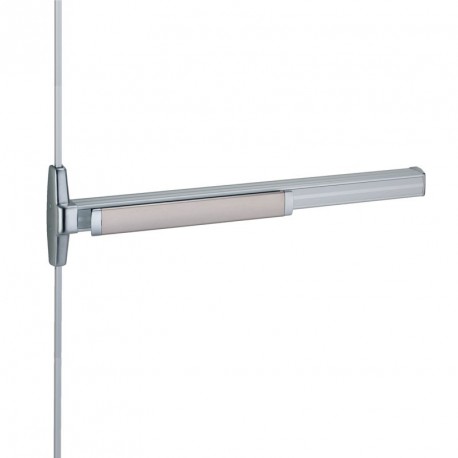

Von Duprin 33A/3527A Surface Vertical Rod Device

$3,207.48

?

Details: Von Duprin 33A/3527A Surface Vertical Rod Device

Surface Vertical Rod Device 33A/3527A.

  • Device Functions Include, Exit Only, Dummy Trim, Night Latch-Key-Retract, Night Latch Optional Pull, Lever-06 Standard, Turn Lever, Thumb Turn.
  • Surface Vertical Rod Devices are furnished at prices listed for door heights up to 7'0".
  • Listed for door length 2'(2' device for 2'door), 3' (3' Device for 2'4" -3' door) 4'(4' device for 2'10" -4' door).
  • Listed for door thickness of 1'3/4"(standard), 2', 2'1/4" Wood & Metal doors.
  • A fluid damper decelerates the push pad on its return stroke and eliminates most noise associated with exit device operations.
  • Includes 266, 248-L and 304L Strikes.
  • Series features grooved mechanism case
  • Device Finish: US26D (Satin Chrome), US28 (Anodized Aluminum), 313 (Duranodic Dark Bronze), US10 (Satin Bronze), US4 (Satin Brass), US3 (Bright Brass), US15 (Satin Nickel), US26 (Bright Chrome), 315 (Black).
  • Cylinders are not included.

Surface Vertical Rod Exit Device Adjustment

Von Duprin 3327A/3527A Surface Mounted Vertical Rod Device

EO DT NL NL-OP TL TL-BE L L-BE T T-BE
DT Dummy Trim NL Night Latch key retracts latchbolt NL-OP Night Latch key retracts latchbolt optional pull required TL Thumbturn TL-BE Thumbturn blank L Lever L-BE Lever blacnk escutcheon T Thumbturn key locks and unlocks T-BE Thumbturn always operable

Exit only

No outside trim

Dummy trim

Pull when dogged

Night latch

Key retracts latchbolt

Night latch

Key retracts latchbolt optional pull required

Thumbturn

Key Locks and Unlocks

Thumbturn - blank

Escutcheon always operable (no cylinder)

Lever

Key Locks and Unlocks

Lever Blank Escutcheon

Always Operable (No Cylinder)

Thumbturn

Key Locks and Unlocks

Thumbturn

Always Operable (No Cylinder)

Product description

3327A-EO

3527A-EO

3327A-DT

3527A-DT

3327A-NL

3527A-NL

3327A-NL-OP

3527A-NL-OP

3327A-TL

3527A-TL

3327A-TL-BE

3527A-TL-BE

3327A-L

3527A-L

3327A-L-BE

3527A-L-BE

3327A-T

3527A-T

3327A-T-BE

3527A-T-BE

Trim description -- 386DT 386NL 388 374T x 386 374T-BE x 386 360L 360L-BE 360T 360T-BE
Base size --

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-15/32" x 1-5/8"

(190x41mm)

7-1/2" x 1-11/16"

(190x43mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

7-1/2" x 1-11/16" x 7/8"

(190x43x22mm)

Grip size --

8-1/2" x 4-5/16"

(216x110mm)

8-1/2" x 4-5/16"

(216x110mm)

-- --

8-1/2" x 4-5/16"

(216x110mm)

-- -- -- --
Projection -- 2-7/16" (62mm) 2-7/16" (62mm) 1" (25mm) 1-13/16" (46mm) 1-13/16" (46mm) 3" (76mm) 3" (76mm) 1-13/16" (46mm) 1-13/16" (46mm)
ANSI function 01 02 03 03 11 or 12 field selectable -- 08 or 09 field selectable -- 11 or 12 field selectable --
Cylinder type -- -- Rim Rim 1-1/4" Mortise -- 1-1/4" Mortise -- 1-1/4" Mortise --
Handing -- -- Handed -- -- -- Handed/Reversible Handed/Reversible -- --
Optional trim --

x 360L-DT

x 550DT

x IVES 8190

--

x550DT

x IVES 8190 10"

x 392-6

x 392-6

--

E360L-BE

-- E360T-BE

Available Model Numbers and Combinations

Model/SKU Attributes
3327A-T-BE-US26-3 Bright Chrome, 3', Thumbturn - Blank Escutcheon, Grooved
3327A-DT-US26-2 Bright Chrome, Dummy Trim, 2', Grooved
3527A-L-US4-4 Satin Brass, 4', Lever (Classroom), Smooth
3327A-T-BE-3A-3 Bright Chrome, 3', Thumbturn, Grooved
3327A-NL-US26-2 Bright Chrome, Night Latch, 2', Grooved
3527A-L-BE-US4-4 Satin Brass, 4', Lever - Blank Escutcheon, Smooth
3327A-EO-643E-3 3', Aged Bronze, Exit Only, Grooved
3327A-NL-OP-US26-2 Bright Chrome, Night Latch Cylinder Assembly, Optional Pull, 2', Grooved
3327A-DT-643E-3 3', Aged Bronze, Dummy Trim, Grooved
3327A-L-US26-2 Bright Chrome, Lever (Classroom), 2', Grooved
3527A-TL-US4-4 Turn Lever, Satin Brass, 4', Smooth
3327A-LDT-313-2 Duranodic Dark Bronze, Lever, Rigid - Dummy Trim, 2', Grooved
3327A-NL-643E-3 3', Aged Bronze, Night Latch, Grooved
3327A-L-BE-US26-2 Bright Chrome, Lever - Blank Escutcheon, 2', Grooved
3527A-TL-BE-US4-4 Satin Brass, 4', Turn Lever - Blank Escutcheon, Smooth

View All Model Numbers and Options
