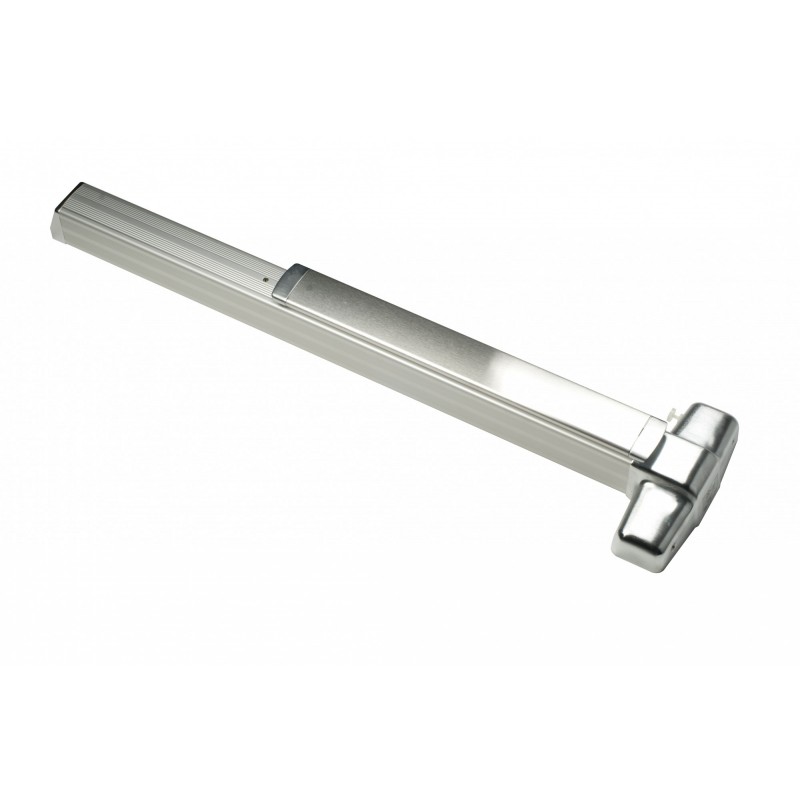

Details: Von Duprin 98/9947 Concealed Vertical Rod Device

Concealed Vertical Rod Device Series 98⁄9947 provididing an excellent life safety strategy.

Device Functions Include, Exit Only, Dummy Trim, Night Latch-Key-Retract, Night Latch Optional Pull, Thumb Piece, Knob, Lever-06 Standard, Turn Lever.
Concealed Vertical Rod Devices are furnished at prices listed for door heights 6'8" to 8'4" on touch bar devices and up to 8'0" on crossbar devices.
Listed for door thickness of 1'3/4"(standard), 2', 2'1/4" Wood & Metal doors.
Listed for door length 2'(2' device for 2'door), 3' (3' Device for 2'4" -3' door) 4'(4' device for 2'10" -4' door).
Includes 338 and 385A Strikes.
Cylinders and sex bolts are not included.
Device finish: US26D (Satin Chrome), US28 (Anodized Aluminum), US32D (Satin Stainless Steel), 313 (Duranodic Dark Bronze), US10 (Satin Bronze), US4 (Satin Brass), US3 (Bright Brass), US15 (Satin Nickel), US26 (Polished Chrome), 315 (Black).
Standard Trim/Control: 990DT/374T.

Model/SKU	Attributes
9847LNL-US26D-3	Satin Chrome, 3', Lever, Rigid - Night Latch
9847NL-OP-643E-3	3', Aged Bronze, Night Latch Cylinder Assembly, Optional Pull
9847-KDT-US32D-2	Stainless Steel Satin, 2', Knob, Rigid - Dummy Trim
9847TL-US26D-3	Turn Lever, Satin Chrome, 3'
9847TP-313-4	Duranodic Dark Bronze, 4', Thumbpiece
9847TP-643E-3	3', Aged Bronze, Thumbpiece
9847TL-BE-US26D-3	Satin Chrome, 3', Turn Lever - Blank Escutcheon
9847EO-US3-2	Bright Brass, Exit Only, 2'
9847EO-US28-3	3', Exit Only, Satin Aluminum, Clear Anodized
9847TP-BE-643E-3	3', Aged Bronze, Thumbpiece - Blank Escutcheon
9847TP-BE-313-4	Duranodic Dark Bronze, 4', Thumbpiece - Blank Escutcheon
9847TL-315-4	Turn Lever, Flat Black, 4'
9847DT-US28-3	3', Dummy Trim, Satin Aluminum, Clear Anodized
9847TP-BE-US26-4	Bright Chrome, 4', Thumbpiece - Blank Escutcheon
9847NL-US28-3	3', Night Latch, Satin Aluminum, Clear Anodized
