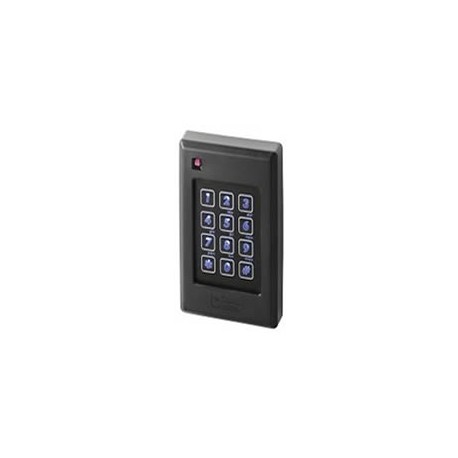

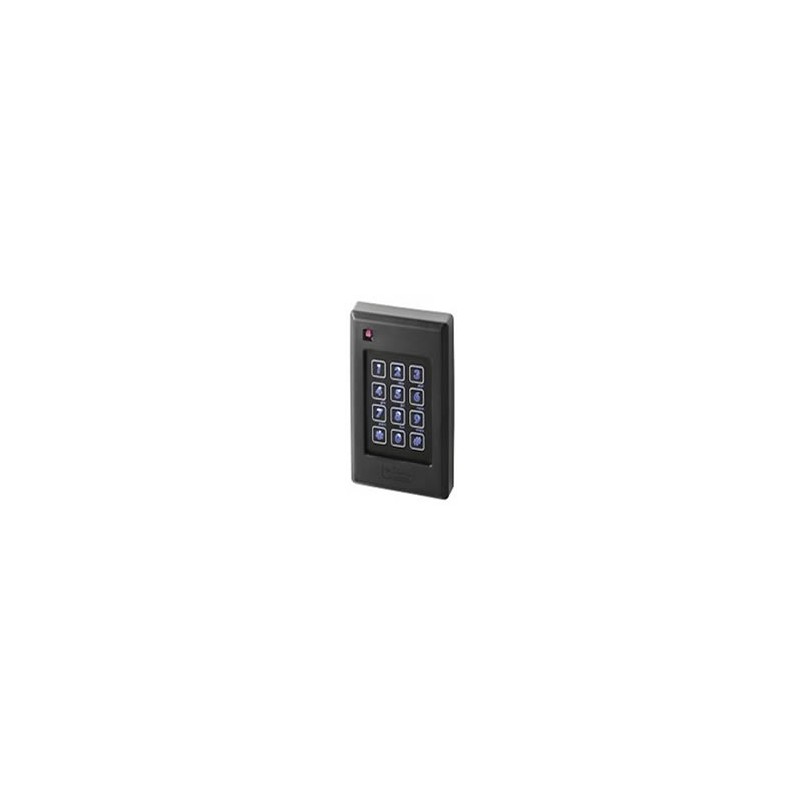

ZKTeco KR640 HID Compatible 125kHz Proximity ID Card Reader

KR502H

$653.00

Details: ZKTeco KR640 HID Compatible 125kHz Proximity ID Card Reader

Due to its conveniently small mullion size, KR502H is the ideal card access solution for any metal doors with thin frames, parking gates, fences, turnstiles or any security device having a narrow mounting surface. For the highest level of security KR502H has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).

Specification

  • Technology / Proximity
  • Frequency / 125 kHz
  • Mounting / Mullions, including metal doors and window frames
  • Indoor & Outdoor Installation / Electronics sealed in weather and tamper-resistant epoxy potting
  • Keypad / N/A
  • LED indicator / red, green, amber and "off" (represent 4 states)
  • Audio indicator / Beep
  • Wiegand Inferface / Wiegand-Out port
  • Power Supply / 5 to 16V DC
  • IP-rating / 67
  • Operating Temperature / -35° F to 149° F / -40° C to + 65° C
  • Operating Humidity / 20% — 80%
  • Dimensions (H×W×D) / 4.6 × 3 × .75 inches (117 × 76 × 19 mm)
  • Weight / 3 oz (85g)
  • Certifications / FCC, ICC, CE, C-Tick, ETL Listed
  • Current draw / 30 mA typical, 75 mA peak @ 12V DC
  • Read range / Up to 5 inches (126 mm)
  • Cabling / 24 AWG minimum, multi-conductor stranded with an overall foil shield
