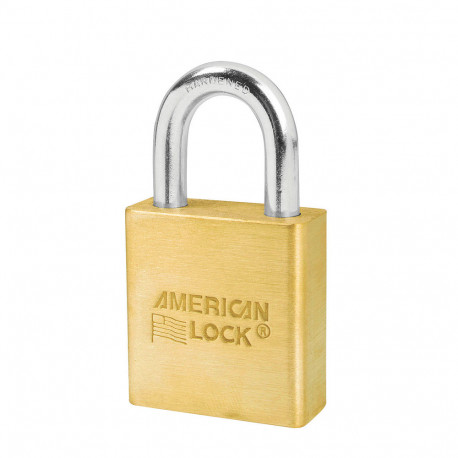

Details: American Lock A556 Solid Brass Rekeyable Padlock

The American Lock Solid Brass Padlock features a 1-3/4in (44mm) wide solid brass body for superior corrosion resistance in the harshest outdoor or corrosive environments and a 1-1/8in tall (28mm), 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual stainless steel ball bearing locking mechanism resists pulling and prying and a rekeyable 5-pin APTC12 brass cylinder with serrated pins is pick resistant and offers tens of thousands of key changes.

Features

1-3/4in (44mm) solid brass body for maximum corrosion resistance
1-1/8in (28mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance
Dual ball bearing locking mechanism resists pulling and prying
Rekeyable 5-pin APTC12 cylinder helps prevent picking

Specifications

Description: Keyed Different, Commercial Boxed Packaging
Body Width: 1-3/4 in (44 mm)
Shackle Length: 1-1/8 in (29 mm)
Shackle Width: 3/4 in (19 mm)
Shackle Diameter: 5/16 in (8 mm)
Color: Gold

Applications

Security Gates & Fences
Self-Storage Units & Lockers
Shipping & Cargo Containers

Downloads

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU	Attributes
A55604KEY	1-1/8" (28mm), Not Included, Non-Key Retaining, 4 keys per lock, Not Included
A5560 NRNOKEY LZ5	1-1/8" (28mm), Not Included, Non-Removable Key, 0 keys per lock, Laser engraved in 5 areas
A5560 CN NR	1-1/8" (28mm), Not Included, Non-Removable Key, 2 keys per lock, Not Included
A5560 KD CNNOKEY LZ3	1-1/8" (28mm), Not Included, Keyed Different, Non-Key Retaining, 0 keys per lock, Laser engraved in 3 areas
A5560 KA NR	1-1/8" (28mm), Not Included, Keyed Alike, Non-Removable Key, 2 keys per lock, Not Included
A5560 KA CN NRNOKEY LZ5	1-1/8" (28mm), Not Included, Keyed Alike, Non-Removable Key, 0 keys per lock, Laser engraved in 5 areas
A5560 MK NR1KEY LZ2	1-1/8" (28mm), Not Included, Keyed Different + Master Keyed, Non-Removable Key, 1 key per lock, Laser engraved in 2 areas
A5560 KAMK LZ2	1-1/8" (28mm), Not Included, Keyed Alike + Master Keyed, Non-Key Retaining, 2 keys per lock, Laser engraved in 2 areas
A5560 KAMK CN4KEY LZ4	1-1/8" (28mm), Not Included, Keyed Alike + Master Keyed, Non-Key Retaining, 4 keys per lock, Laser engraved in 4 areas
A5560 N NR LZ6	1-1/8" (28mm), Included, Non-Removable Key, 2 keys per lock, Laser engraved in 6 areas
A5560 N CN NR1KEY LZ6	1-1/8" (28mm), Included, Non-Removable Key, 1 key per lock, Laser engraved in 6 areas
A5560 N KD NR3KEY LZ5	1-1/8" (28mm), Included, Keyed Different, Non-Removable Key, 3 keys per lock, Laser engraved in 5 areas
A5560 N KD CN NR3KEY LZ2	1-1/8" (28mm), Included, Keyed Different, Non-Removable Key, 3 keys per lock, Laser engraved in 2 areas
A5560 N KA CN LZ6	1-1/8" (28mm), Included, Keyed Alike, Non-Key Retaining, 2 keys per lock, Laser engraved in 6 areas
A5560 N KAMK4KEY LZ3	1-1/8" (28mm), Included, Keyed Alike + Master Keyed, Non-Key Retaining, 4 keys per lock, Laser engraved in 3 areas

View All Model Numbers and Options
