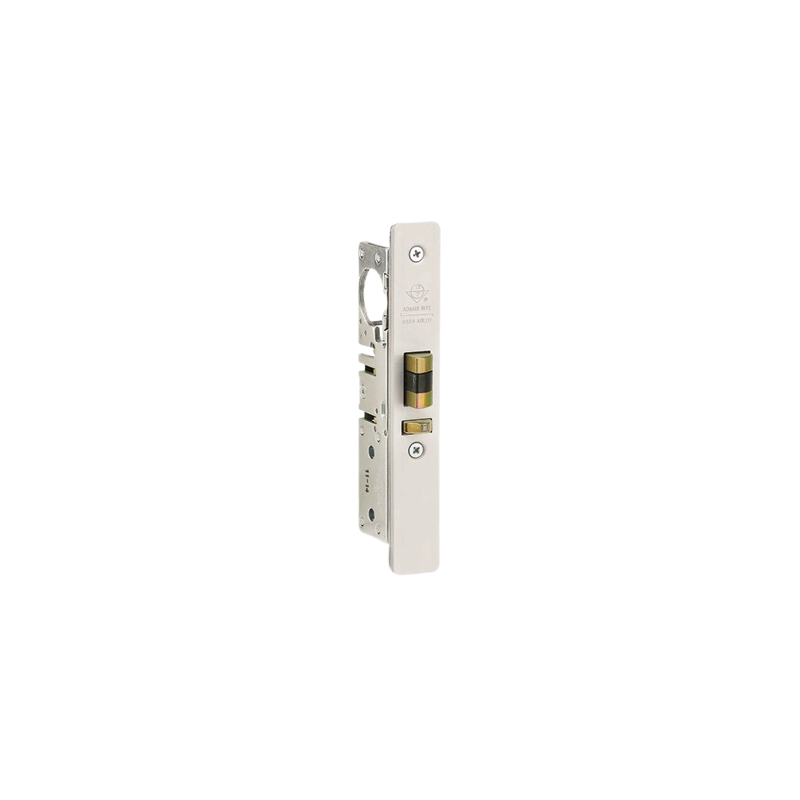

Adams Rite 4511W-46-221-628 Series Standard Duty Deadlatch
4511W-46-221-628
- Faceplate
- Radius with Weatherstrip
- Backset
- 1-1/2"
- Handing
- RH or LHR
- Strike Size
- Mortised (4902) 2-5/8"
- Strike Shape/Lip Length
- Flat/Center Hung 4-1/2" Jamb
- Faceplate Finish
- Clear Anodized
Details: Adams Rite 4511W-46-221-628 Series Standard Duty Deadlatch
The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS Deadlock.
Features
- Cylinder Backset: 7/8" [22.2 mm], 31/32" [24.6 mm], 1-1/8" [28.6 mm] or 1-1/2" [38.1 mm].
- Case: Steel with corrosion-resistant plating. Measures 1" × 5-13/16" × depth [25.4 mm x147.6 mm × depth]. Depth varies by backset.
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Latchbolt: All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" × 1" × 1/2" [12.7 mm × 25.4 mm × 12.7 mm] throw.
- Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent loading or case-knife entry.
- Faceplate: Measures 1" × 6-7/8" [25.4 mm × 174.6 mm].
- Strike: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for center hung doors.
- Standard Package: Individually boxed with strike and mounting screws. Cylinder, paddle, handle available separately.
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 4511W-46-217-313 | Radius with Weatherstrip, 1-1/2", RH or LHR, Mortised (4902) 2-5/8", Flat/Center Hung 4" Jamb, Dark Bronze Anodized |
| 4512-36-117-335 | Bevel, 1-1/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Center Hung 4" Jamb, Black Anodized |
| 4510-16-22-628 | Flat, 7/8", RH or LHR, Mortised (4902) 2-5/8", Clear Anodized |
| 4510-46-11-335 | Flat, 1-1/2", RH or LHR, Mortised (4901) 4-5/8", Flat/Standard Jamb, Black Anodized |
| 4511-45-12-313 | Radius, 1-1/2", LH or RHR, Mortised (4901) 4-5/8", Dark Bronze Anodized |
| 4511W-45-11-628 | Radius with Weatherstrip, 1-1/2", LH or RHR, Mortised (4901) 4-5/8", Flat/Standard Jamb, Clear Anodized |
| 4512-45-21-335 | Bevel, 1-1/2", LH or RHR, Mortised (4902) 2-5/8", Flat/Standard Jamb, Black Anodized |
| 4511W-1617-313 | Radius with Weatherstrip, 7/8", RH or LHR, Flat/Center Hung 4" Jamb, Dark Bronze Anodized |
| 4511W-46-217-335 | Radius with Weatherstrip, 1-1/2", RH or LHR, Mortised (4902) 2-5/8", Flat/Center Hung 4" Jamb, Black Anodized |
| 4512-36-117-628 | Bevel, 1-1/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Center Hung 4" Jamb, Clear Anodized |
| 4511-35-117-313 | Radius, 1-1/8", LH or RHR, Mortised (4901) 4-5/8", Flat/Center Hung 4" Jamb, Dark Bronze Anodized |
| 4511W-1617-335 | Radius with Weatherstrip, 7/8", RH or LHR, Flat/Center Hung 4" Jamb, Black Anodized |
| 4511W-46-217-628 | Radius with Weatherstrip, 1-1/2", RH or LHR, Mortised (4902) 2-5/8", Flat/Center Hung 4" Jamb, Clear Anodized |
| 4512-36-121-313 | Bevel, 1-1/8", RH or LHR, Mortised (4901) 4-5/8", Flat/Center Hung 4-1/2" Jamb, Dark Bronze Anodized |
| 4511-45-12-335 | Radius, 1-1/2", LH or RHR, Mortised (4901) 4-5/8", Black Anodized |
